Product Description

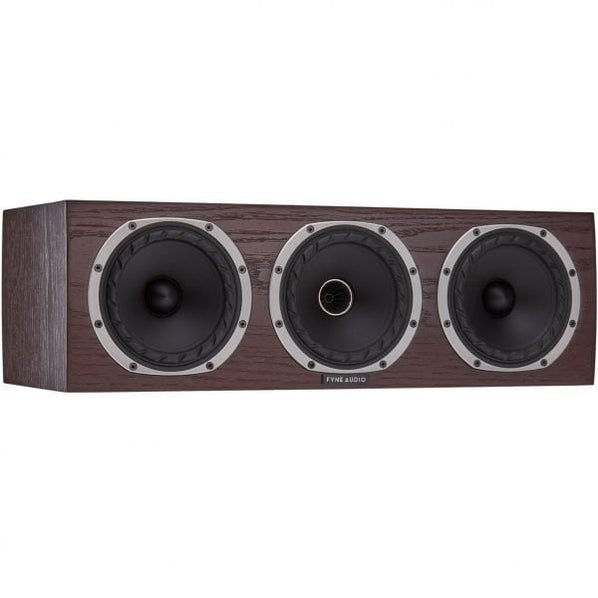

• Designed for home theatre systems, the F500C is a dedicated center channel loudspeaker.
• Comes with a 125mm (5″) IsoFlareTM driver is at the heart of the F500C, delivering pinpoint accuracy.
• Providing additional low-frequency extension and impact, the IsoFlareTM driver is accompanied by two 125mm (5″) bass drivers.
• Enhancing its aesthetic appeal, it has a gently curved front and rear baffle.
• Clean signal path and very low crossover losses

the technical specifications and key features of the Fyne Audio F500C Center Channel Speaker. Designed to complement the F500 series, this center channel speaker delivers clear and detailed dialogue and sound effects for a seamless home theater experience. Its compact design and premium finish make it a perfect match for any modern living room or dedicated home cinema room.

2. General Specifications
Product Name: Fyne Audio F500C Center Channel Speaker
Series: F500
Enclosure Type: Bass reflex, rear-ported
Recommended Placement: TV stand, shelf, or wall-mounted (with optional bracket)
System Type: Passive
Color Options: Walnut, Black Ash, Piano Gloss Black, Piano Gloss White
3. Dimensions and Weight
Height: 166mm (6.5 inches)
Width: 500mm (19.7 inches)
Depth: (including terminals) 236mm (9.3 inches)
Weight: 7.3 kg (16.1 lbs)
4. Performance
Frequency Response: 48 Hz - 34 kHz (-6 dB)
Sensitivity (2.83v @ 1m): 91 dB
Nominal Impedance: 8 Ohms
Recommended Amplifier Power: 30 - 150 W
Crossover Frequency: 1.7 kHz, 1.8 kHz
5. Drivers
5.1 Tweeter
Type: 25mm (1 inch) titanium dome with Neodymium magnet
Technology: FyneFlute Technology for reduced distortion
5.2 Mid/Bass Drivers
Size: 2 x 150mm (6 inches)
Material: Multi-fibre paper cone
Technology: Fyne Audio’s proprietary FyneFlute surround for enhanced clarity and reduced distortion
6. Connections

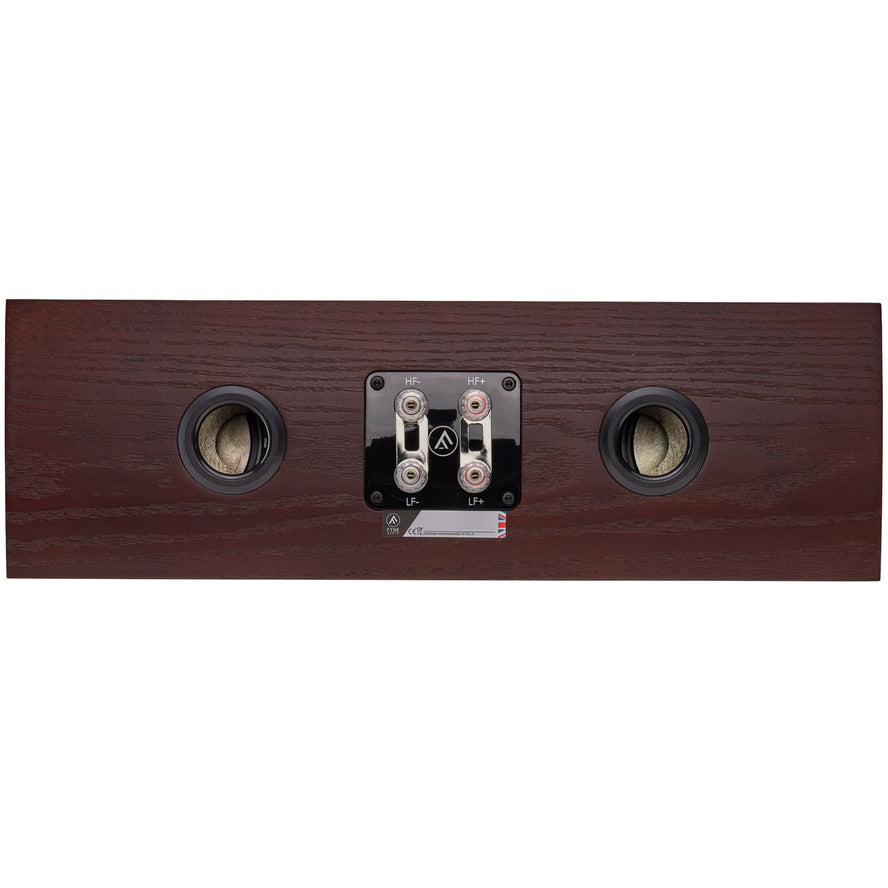

Input Type: Bi-wire terminals, gold-plated for improved conductivity
Compatibility: Compatible with banana plugs, spade connectors, or bare wire
7. Features
Cabinet Design: Rigidly constructed with internal bracing to minimize coloration and improve overall sound clarity.
Bass Reflex Port: Rear-mounted port designed to enhance low-frequency response while minimizing port noise and turbulence.
Crossover: High-quality components ensure seamless integration between drivers for a coherent and detailed soundstage.

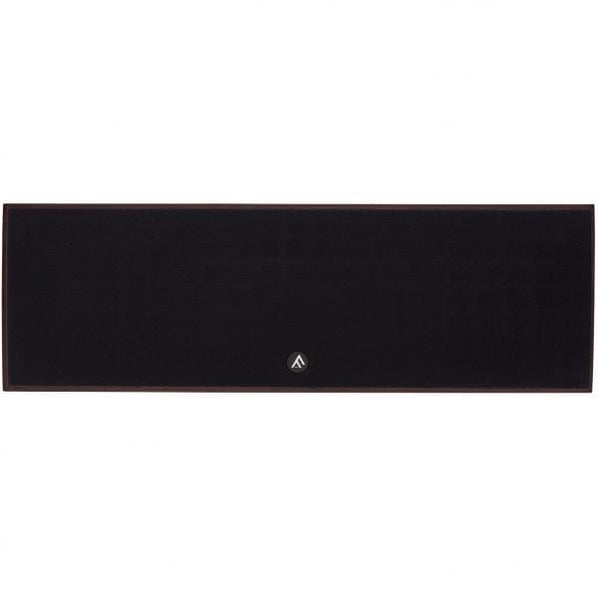

Grille: Removable magnetic grille for a clean aesthetic with or without the grille.
8. Accessories (Included)
1 x Removable Speaker Grille
4 x Rubber Feet
User Manual
9. Warranty
Standard Warranty Period: 5 years (requires product registration)
10. Compliance and Certifications
RoHS Compliant: Yes
CE Marked: Yes
11. Packaging
Box Contents: 1 x Fyne Audio F500C Center Channel Speaker, 1 x Removable Speaker Grille, 4 x Rubber Feet, User Manual
Package Dimensions: 560mm x 210mm x 300mm
Package Weight: 8.5 kg
