Product Description

• 6" aramid fiber woofer.
• 1" aluminum dome tweeter
• Low distortion, high resolution drive unit technologies.
• Adjustable EQ and tweeter directivity to optimize sound.

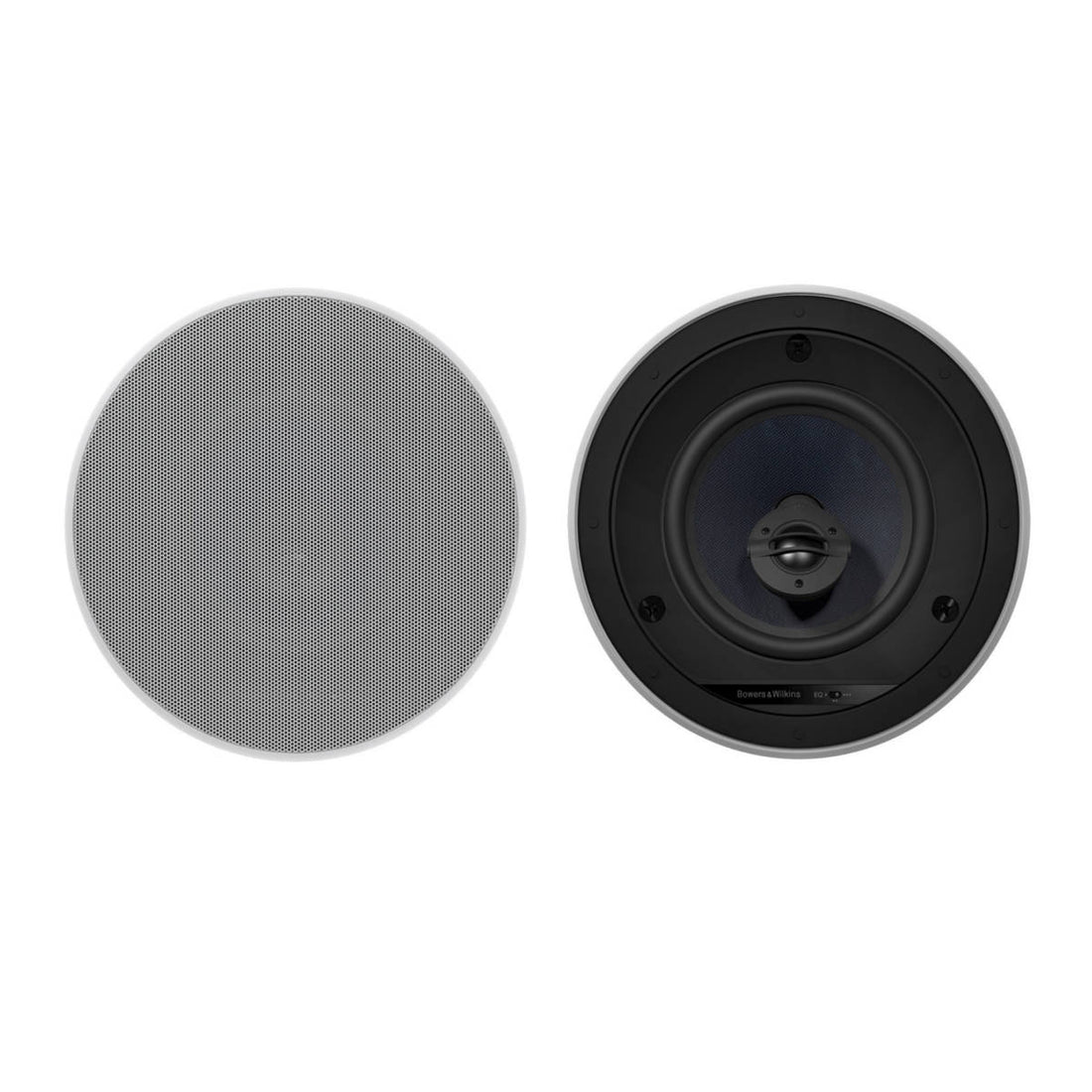

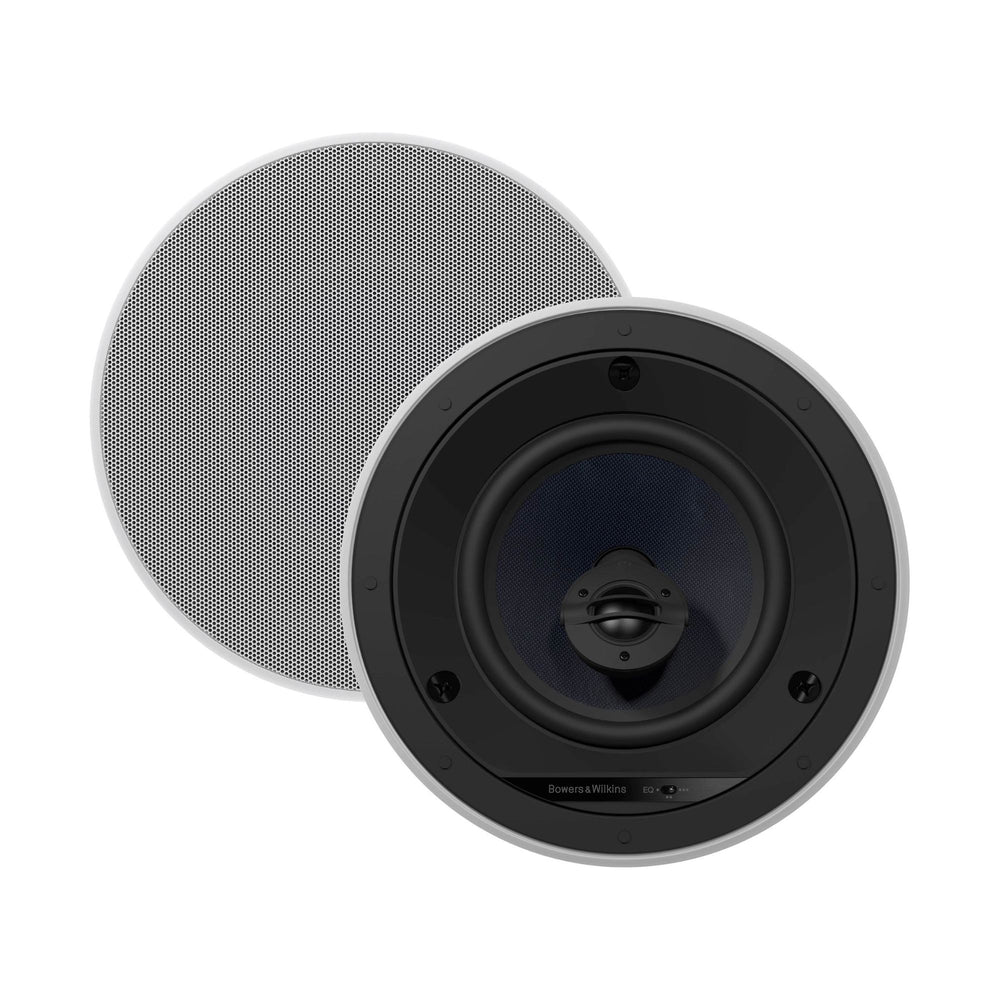

The Bowers & Wilkins CCM663 is a standout model within the High Performance Series, delivering exceptional audio quality from an elegantly designed in-ceiling speaker. These speakers are engineered to meet the expectations of audiophiles seeking immersive sound without compromising on the aesthetics of their living spaces. Whether integrated into a high-end home theater setup or utilized for enriching multi-room audio, the CCM663 pairs provide a sophisticated audio solution that blends seamlessly with any interior design.

Key Features:

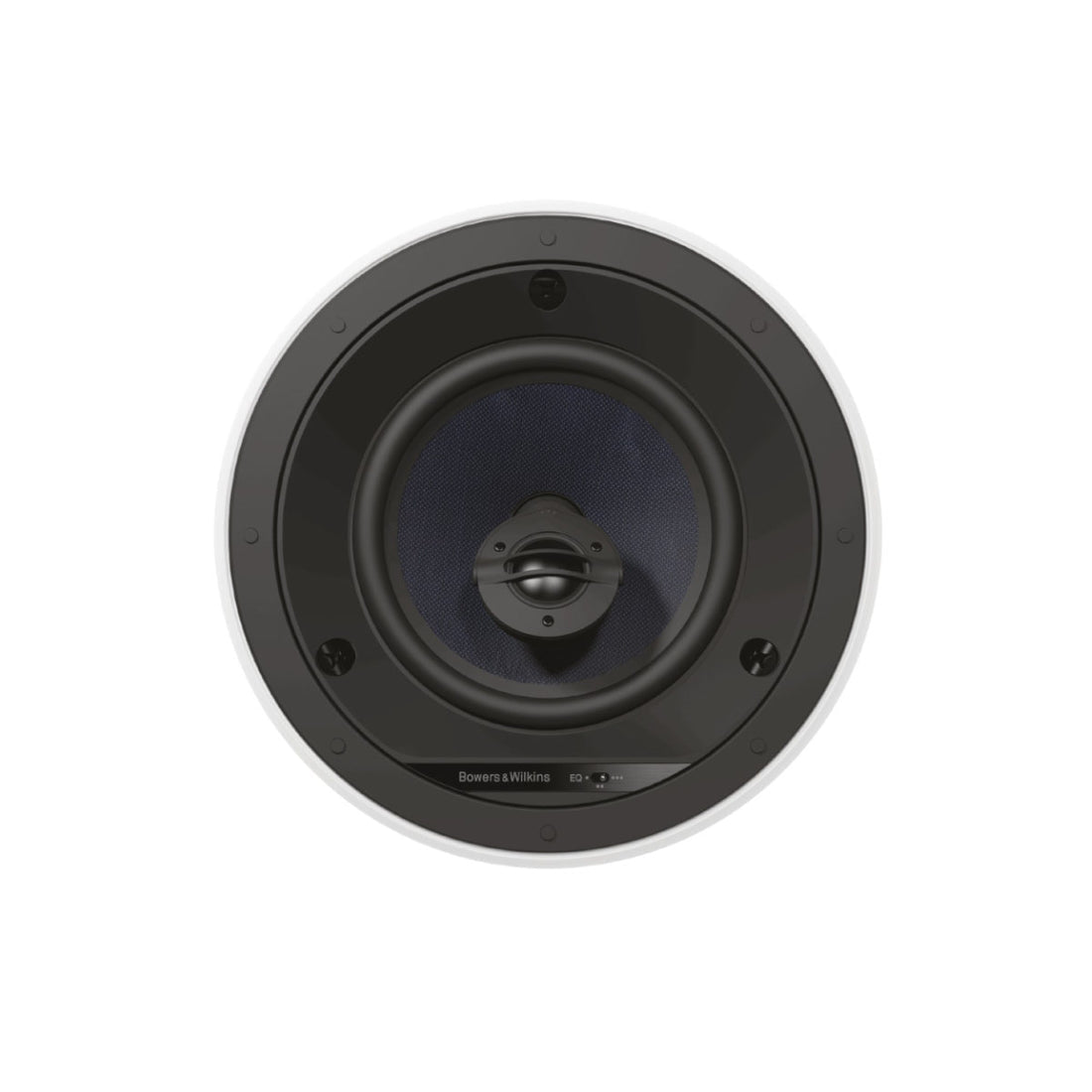

Superior Audio Performance: Equipped with a 6" Kevlar® cone bass/midrange driver and a 1" aluminum dome tweeter, the CCM663 offers a rich, detailed soundstage. The Nautilus swirl-loaded tweeter design ensures pristine highs, while the Kevlar® cone delivers deep, articulate bass and midrange.
Adjustable Tweeter: The tweeter in the CCM663 can be pivoted to direct the sound precisely where it is most effective, ensuring an optimal listening experience regardless of the speaker's position.
Integrated Back Box: Featuring an integrated back box that enhances acoustic performance by optimizing the speaker's environment, this design also reduces sound leakage to adjacent areas, ensuring your audio stays where you want it.
Seamless Installation: Thanks to the QuickDogs™ fixing system and magnetic grille, installation is straightforward, secure, and allows for a clean, almost invisible aesthetic integration into any ceiling.

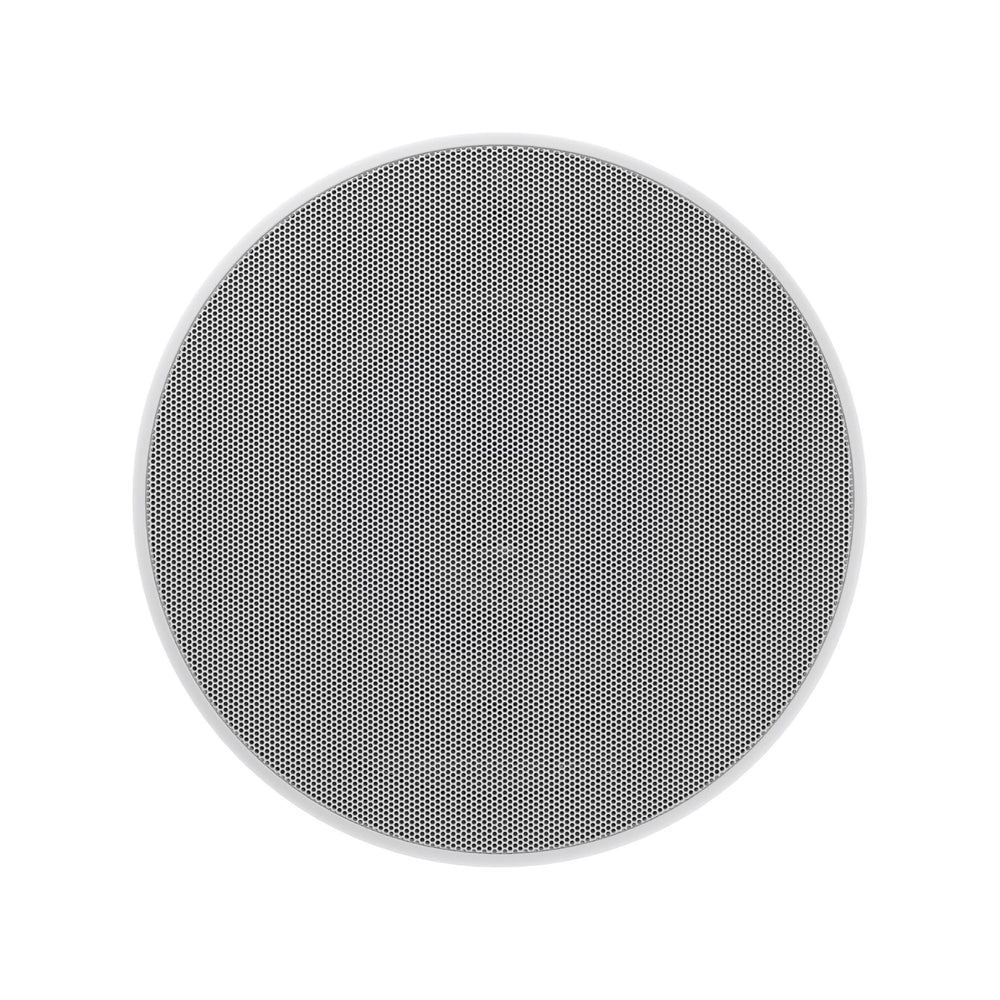

Paintable Grille: The ultra-thin bezel and grille can be painted to match your ceiling, offering a custom look that is both sophisticated and unobtrusive.
Specifications:
Drive Units: 1 x 6" Kevlar® cone bass/midrange, 1 x 1" aluminum dome tweeter
Frequency Range: -6dB at 45Hz and 50kHz
Frequency Response: 50Hz - 28kHz ±3dB on reference axis
Sensitivity: 88dB (2.83V, 1m)
Nominal Impedance: 8 Ohms (minimum 3.5 Ohms)
Recommended Amplifier Power: 25W - 130W into 8 Ohms on unclipped program
Frame Diameter: 240mm (9.45 inches)
Cut-out Diameter: 202mm (7.95 inches)
Depth Behind Surface: 133mm (5.24 inches)
Finish: White (paintable grille)
In the Box:
2 x B&W CCM663 In-Ceiling Speakers
2 x Paintable Grilles
Installation Guide
Warranty Information
Warranty:
5-Year Limited Warranty provided by Bowers & Wilkins, ensuring a long-lasting investment in your audio experience.
The Bowers & Wilkins CCM663 speakers are designed for the discerning listener who demands the best in audio performance and room aesthetics. Offering a perfect blend of sophisticated design and exceptional sound quality, the CCM663 in-ceiling speakers are an ideal choice for anyone looking to elevate their home audio to the next level.
