Product Description
- It has 3-Way vented box configuration sound system.
- It has 1 x ø25mm (1 in) cloth dome high-frequency driver.
- It has 1 x ø150mm (6 in) woven Aramid Fibre FST mid-range driver.
- It has 2 x ø200mm (8 in) Paper/Aramid Fibre bass units driver.
- It delivers remarkable spaciousness, imaging and high definition audio through its
- single 7 inches Aramid Fibre.

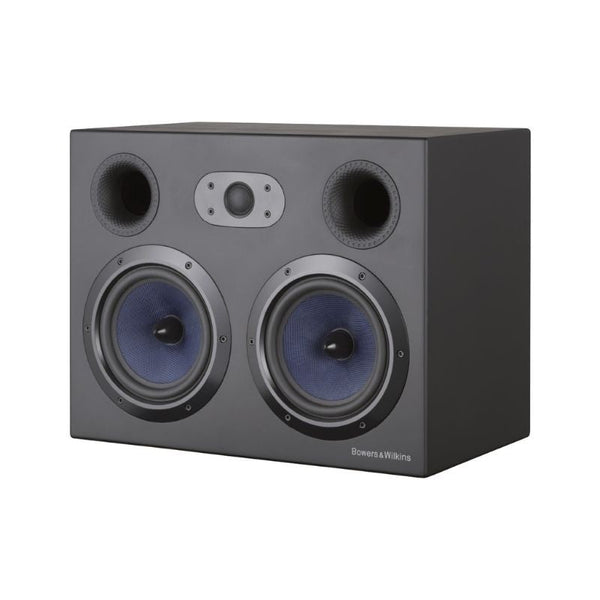

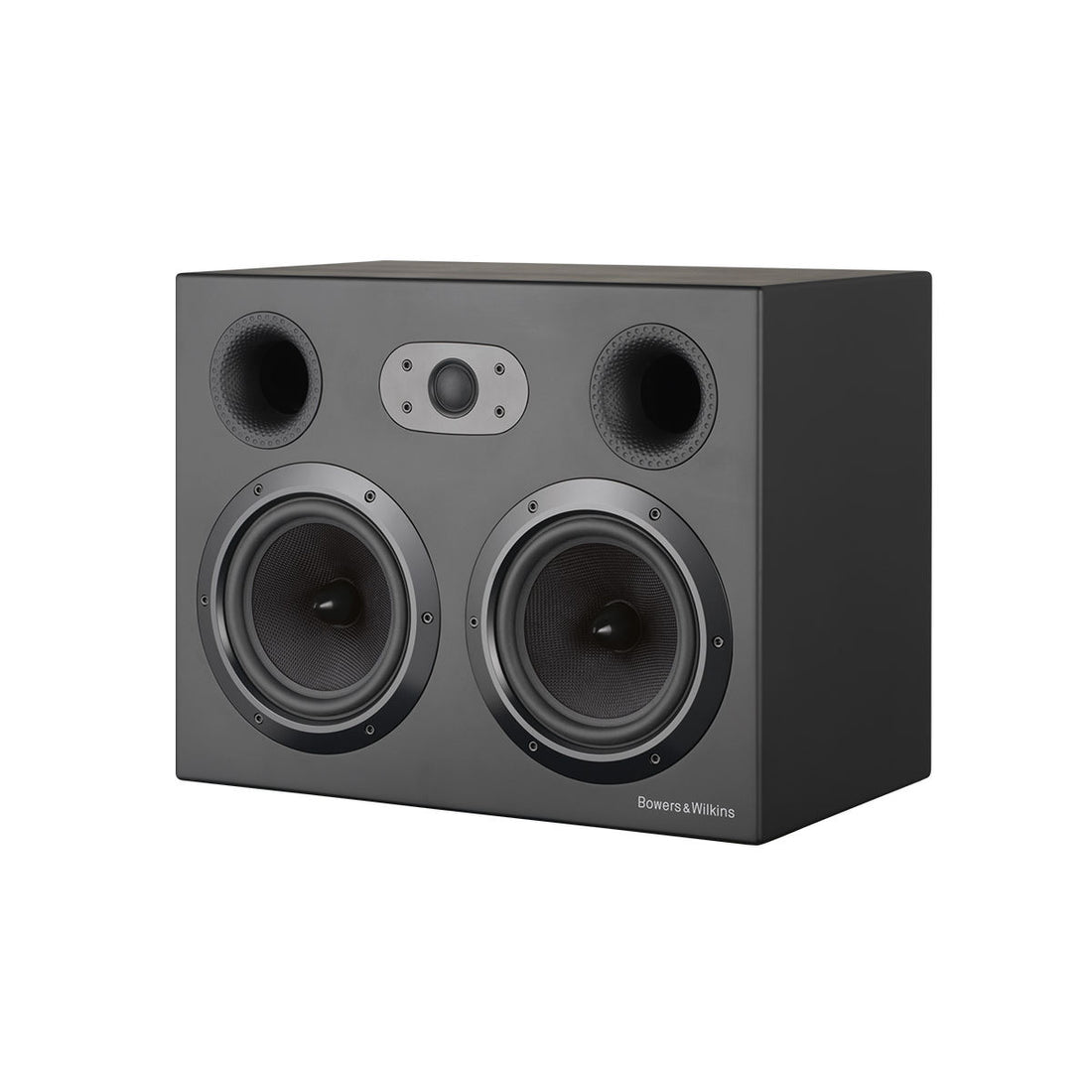

The Bowers-Wilkins CT7.4-LCRS represents a breakthrough in custom theater audio, offering an exceptional blend of compact design and powerful performance. This 3-way speaker is part of B&W's esteemed Custom Theatre series, designed to bring the immersive experience of a high-end cinema into the comfort of your home. Engineered with precision and crafted with care, the CT7.4-LCRS is suitable for front left, center, and right channel use, ensuring a cohesive and immersive soundstage for movies, music, and more.
Key Features:
3-Way System: The CT7.4-LCRS employs a three-way design, featuring a dedicated bass driver, midrange unit, and tweeter for clear, detailed, and dynamic sound reproduction across all frequencies.
High-Performance Drivers: Includes a 6-inch Kevlar® cone bass driver, a 6-inch woven Kevlar® cone FST midrange, and a 1-inch soft dome tweeter, each contributing to the speaker's exceptional clarity and articulation.
Versatile Placement: Designed for versatility, it can be used as a left, center, or right speaker, providing flexibility in creating your ideal home theater setup.
Nautilus™ Tube-Loaded Tweeter: The Nautilus™ tube technology behind the tweeter ensures a crisp, clean high-frequency response, reducing unwanted resonances and delivering pristine sound quality.
Flowport™ Technology: The speaker features B&W's Flowport™ technology, which enhances the bass response by minimizing turbulence, creating a smoother, richer low-end performance.
Specifications:
Type: 3-Way Vented-Box System
Drive Units: 1 x 1" soft dome tweeter, 1 x 6" woven Kevlar® cone FST midrange, 1 x 6" Kevlar® cone bass
Frequency Range: -6dB at 43Hz and 22kHz
Frequency Response: 49Hz - 22kHz ±3dB on reference axis
Sensitivity: 90dB SPL (2.83V, 1m)
Nominal Impedance: 8 Ohms (minimum 3.1 Ohms)
Recommended Amplifier Power: 50W - 200W into 8 Ohms on unclipped program
Dimensions (H x W x D): 340mm x 244mm x 260mm (13.4 in x 9.6 in x 10.2 in)
Finish: Matte Black
In the Box:
1 x Bowers-Wilkins CT7.4-LCRS Custom Mini Theater Speaker
User Manual
Warranty Information
Warranty:
5-Year Limited Warranty provided by Bowers-Wilkins, ensuring your investment is protected against manufacturing defects.
The Bowers-Wilkins CT7.4-LCRS is designed for the audiophile and cinema enthusiast who refuses to compromise on sound quality, even in a compact home theater setup. With its robust construction, advanced technology, and versatile design, this speaker delivers an unmatched audio experience that brings movies and music to life.
