Product Description

• It has 3-Way vented box configuration sound system.
• It has 1x ø32mm (1in) metal dome high-frequency driver.
• It has 2x ø250mm (10in) carbon fiber/rigid foam sandwich cone bass driver.
• It has choice of high-performance models enables the ease and efficiency to build a
• system suitable for your space.

Product Specification Document

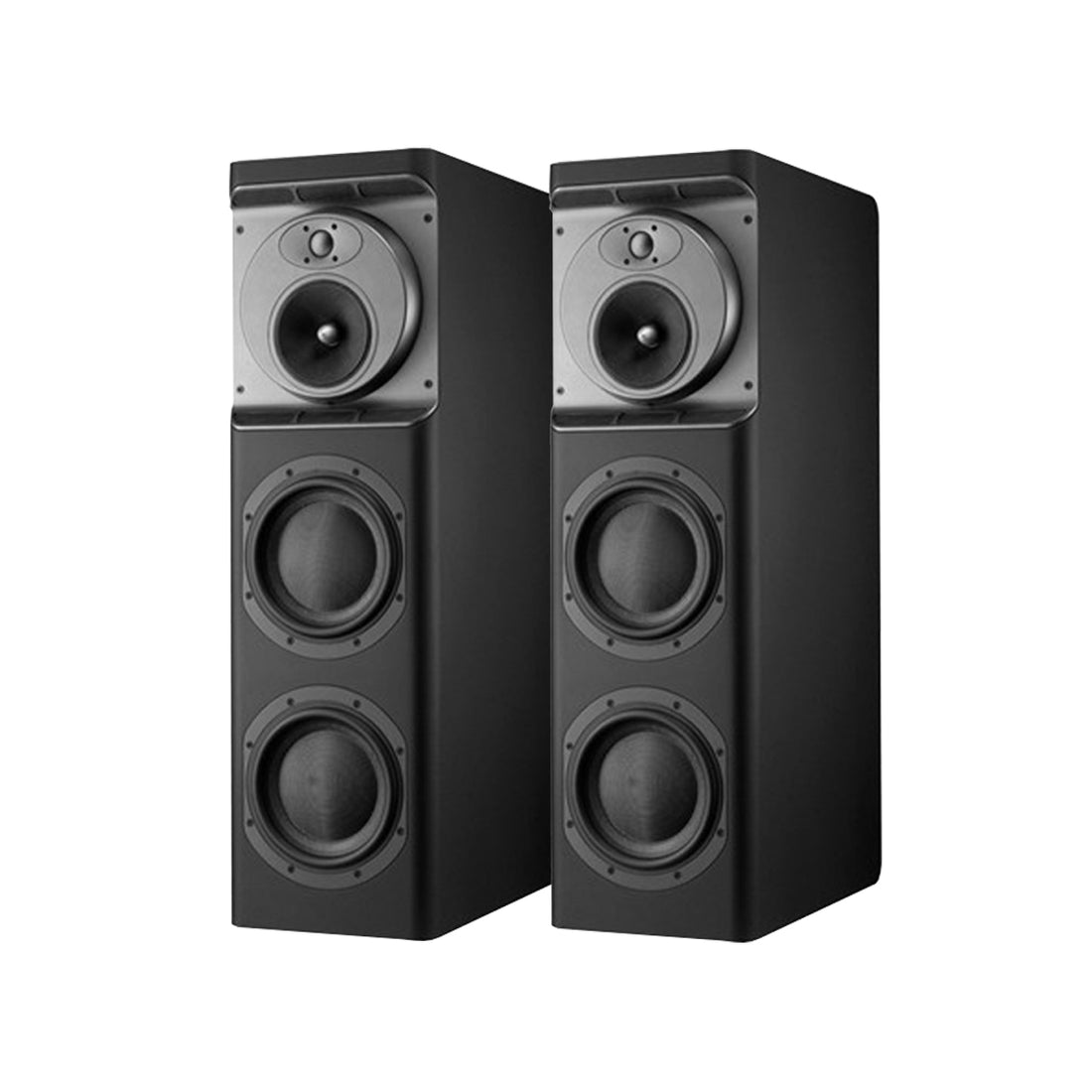

Bowers & Wilkins CT8-LR 3-Way 3-Dimensional Mini Custom Theater Speaker (Pair)
Overview
The Bowers & Wilkins CT8-LR is a pair of high-end, three-way, mini custom theater speakers designed for audiophiles and home theater enthusiasts seeking the pinnacle of performance in a more compact form factor. Leveraging Bowers & Wilkins' cutting-edge acoustic technology, these speakers deliver a three-dimensional soundstage with precise imaging and depth, making them an ideal choice for custom home theater installations where space is at a premium but performance cannot be compromised.

Key Features
Three-Way Speaker System: Each speaker combines a high-frequency tweeter, a midrange driver, and a bass driver to deliver a full range of audio frequencies with exceptional clarity and detail.

Nautilus™ Tweeter Technology: Features Bowers & Wilkins' renowned Nautilus™ tube-loaded tweeter design, reducing unwanted resonance and creating a more pure, natural sound.

Kevlar® Midrange Drivers: Incorporates Kevlar® cone midrange drivers that offer an ideal balance of stiffness and damping, resulting in precise midrange frequencies without coloration.

Flowport™ Technology: The bass drivers are enhanced with Flowport™ technology, ensuring smooth and deep bass response by minimizing turbulence at the port exits.

Custom Theater Design: Designed specifically for custom theater installations, offering versatile mounting options and a discreet appearance that blends seamlessly into any high-end home theater environment.

3-Dimensional Soundstage: Engineered to create a compelling three-dimensional soundstage, providing an immersive audio experience that envelops the listener.

Technical Specifications
Type: 3-way vented-box system
Drive Units:
1 x ø25mm (1 in) metal dome high-frequency
1 x ø150mm (6 in) woven Kevlar® cone FST midrange
2 x ø200mm (8 in) paper/Kevlar® cone bass
Frequency Range: -6dB at 27Hz and 33kHz
Frequency Response: 32Hz - 22kHz ±3dB on reference axis
Dispersion: Within 2dB of reference response
Sensitivity: 93dB spl (2.83V, 1m)
Harmonic Distortion: <1% 90Hz - 20kHz; <0.5% 120Hz - 20kHz
Nominal Impedance: 8Ω (minimum 3.0Ω)
Recommended Amplifier Power: 50W - 1000W into 8Ω on unclipped program
Max. Recommended Cable Impedance: 0.1Ω
Dimensions (HxWxD): 1100mm x 325mm x 550mm (43.3 in x 12.8 in x 21.7 in) including plinth
Weight: 80kg (176 lb) each
In the Box
2 x Bowers & Wilkins CT8-LR Speakers
2 x Grilles
User Manual
Warranty Information
Warranty and Support
Warranty: 5 years limited warranty covering defects in materials and workmanship.
Support: Extensive support options are available through the Bowers & Wilkins website, including phone, email, and a comprehensive FAQ section.
Environmental Considerations
The CT8-LR speakers are designed with the environment in mind, featuring materials and components selected for their sustainability and compliance with international environmental standards.
Conclusion
The Bowers & Wilkins CT8-LR 3-Way 3-Dimensional Mini Custom Theater Speakers set a new benchmark for compact, high-performance home theater audio systems. Combining advanced acoustic technologies with a design tailored for custom installations, they offer an unparalleled listening experience for even the most discerning audiophiles and home cinema enthusiasts.
