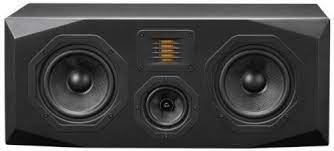

Emotiva Airmotiv C1+ Center Channel Speaker
Emotiva Airmotiv C1+ Center Channel Speaker
Couldn't load pickup availability
Product Description
- Airmotiv C1+ is a three-way center channel loudspeaker that delivers a superb listening experience with surround sound.
- Emotiva Airmotiv C1+ features a 32 mm Airmotiv folded ribbon tweeter, a 3” woven fiber midrange driver, and dual 5-1/4” woven fiber woofers.
- Features a state-of-the-art Airmotiv folded ribbon high-frequency transducer.
- Comes with an advanced 3” woven fiber midrange driver feature woven glass-fiber cones and solid aluminum phase plugs.
- Minimal Acoustic Signature cabinet.
- Acoustically inert 25 mm milled HDF Front panels, and extensive bracing.
Presenting Emotiva Airmotiv C1+a 3-way center channel speaker that delivers a superb listening experience with surround sound music and movies. The Airmotiv C1+ combines exceptional accuracy, amazing precision and detail retrieval, and unsurpassed smoothness all in one truly great sounding loudspeaker.
Superb Speaker Starts With Great Drivers
Features an advanced 3” woven fiber midrange driver that feature woven glass-fiber cones and solid aluminum phase plugs, and deliver a very smooth response.This center channel speaker has a dual 5-1/4” woven fiber low-frequency transducers, with high-temperature voice coils.
Precision Crossover and Flexible Connection
The new and improved version of the precision crossover, carefully designed and optimized to provide perfect synergy with the drivers and cabinet of the Airmotiv C1+.The Bi-amp terminals allow you to access the woofer and midrange/tweeter sections of the Airmotiv C1+ separately for bi-amping or bi-wiring.
| IN THE BOX | |
|---|---|
| Sales Package | Speaker and User Documentation |
| General | |
|---|---|
| Brand | Emotiva |
| Model | Airmotiv C1+ |
| Color | black |
| Specifications | |
|---|---|
|
Configuration
|
Three-way center channel loudspeaker |
| Cabinet tuning | Sealed |
|
High frequency driver
|
25×32 mm Airmotiv folded ribbon tweeter. |
| Mid range Drivers | 3” woven fiber cone |
| Low frequency drivers | 5-1/4” woven fiber cones (2) |
|
Efficiency
|
89 dB (2.83V/1m) |
| Power handling | 120W continuous / 250W peak |
| Recommended amplifier power | 75W – 350W / channel. |
| Nominal impedance | 4 ohms |
| Frequency response | 50 Hz – 28 kHz (+3/-3 dB) |
| Crossover (midrange / tweeter) | 2600 Hz, 12 dB / octave |
| Crossover (woofer / midrange) | 550 Hz, 12 dB / octave |
| Mounting | Shelf or stand mounted; shock absorbing rubber bottom pad |
| Dimension | |
|---|---|
| Dimension | 7-¾” high x 20-1/2” wide x 8-1/4” deep . 14” long x 25” wide x 14” high (boxed) |
| Weight | 18.6 pounds (unboxed), 24 pounds (boxed) |
