Emotiva BasX-A-3 Three-Channel Power Amplifier

Emotiva BasX-A-3 Three-Channel Power Amplifier

Rs. 89,500.00
Rs. 89,500.00 Rs. 89,500.00
-0% OFF Sold out

BRAND: emotiva | MODEL: BasX-A-3
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty



Product Description


  • This is supported with all types of audio systems with all types of music.
  • Its delivers detailed sound and incredibly natural imaging.
  • It has Low noise, wide bandwidth design, and a highly optimized input stage.

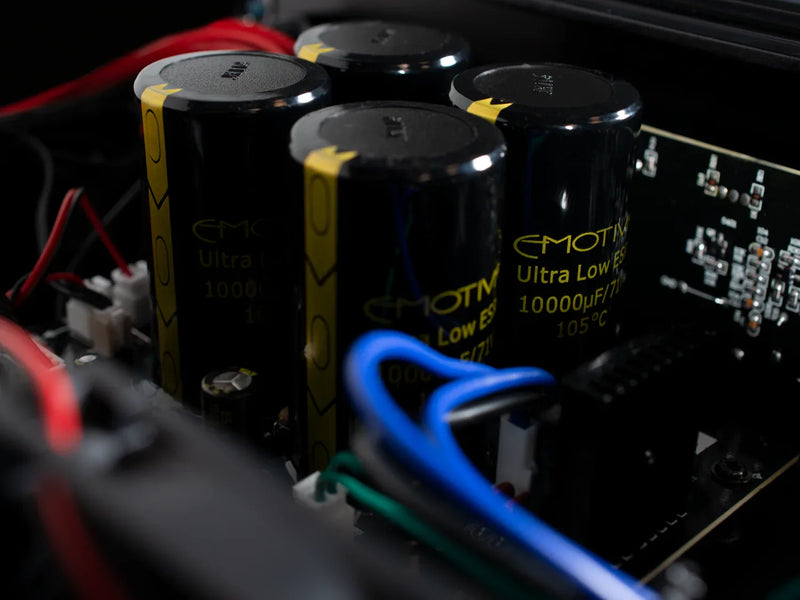

  • It has heavy duty linear power supply with an oversized toroidal power transformer.



Sales Package Emotiva BasX-A-3 Three-Channel Power Amplifier and User documentation
General
Brand emotiva
Model BasX-A-3
Year
Color black
Dimension
Dimension
17” wide x 4” high x 15-1/2” deep (not including connectors).
21-1/2” wide x 8” high x 21” deep (boxed).
Weight
25 lbs (unboxed)
31 lbs (boxed)
Specification
Audio Specifications
Power Output (ALL channels driven):
140 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms.
200 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.
Power Output (two channels driven):
150 watts RMS per channel; into 8 Ohms.
250 watts RMS per channel; into 4 Ohms.
Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.02 dB)
Broad Band Frequency Response: 10 Hz to 80 kHz +0/-1.8 dB
THD + noise: < 0.02% (A-weighted); ref rated power
Signal to Noise Ratio (8 Ohm load):
> 112 dB; ref rated power; (A-weighted).
Minimum Recommended Load Impedance (per channel): 4 Ohms
(which equals one 4 Ohm load or two paralleled 8 Ohm loads).
Damping Factor (8 Ohm load): > 500.
Input Sensitivity (for rated power; 8 Ohm load): 1.25 V.
Gain: 29 dB.
Input Impedance: 27 kOhms.

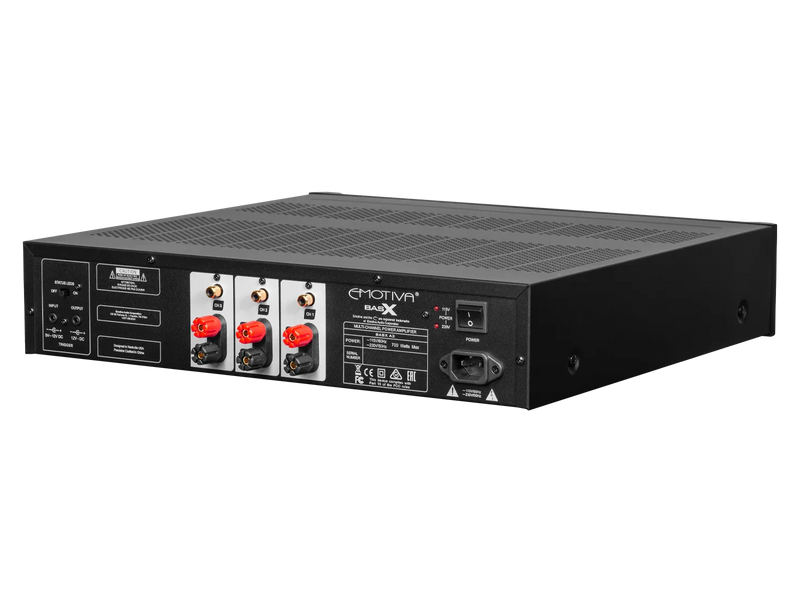

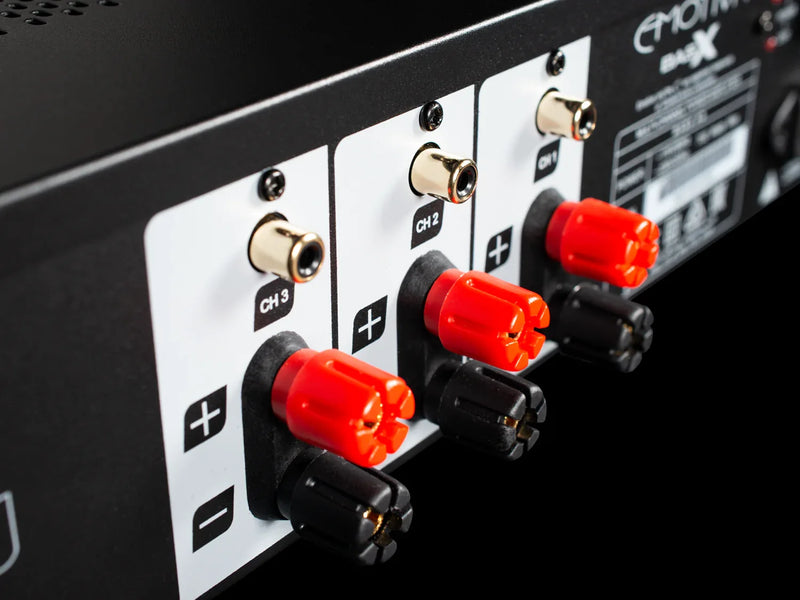

Input & Output Connections
Input Connections: Unbalanced (RCA); one each per channel.
Speaker Output Connections: Audiophile grade 5-way binding posts.
Trigger:
Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required.
Trigger Output: 12 VDC; can drive any load up to 120 mA.
Power Requirements
115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).

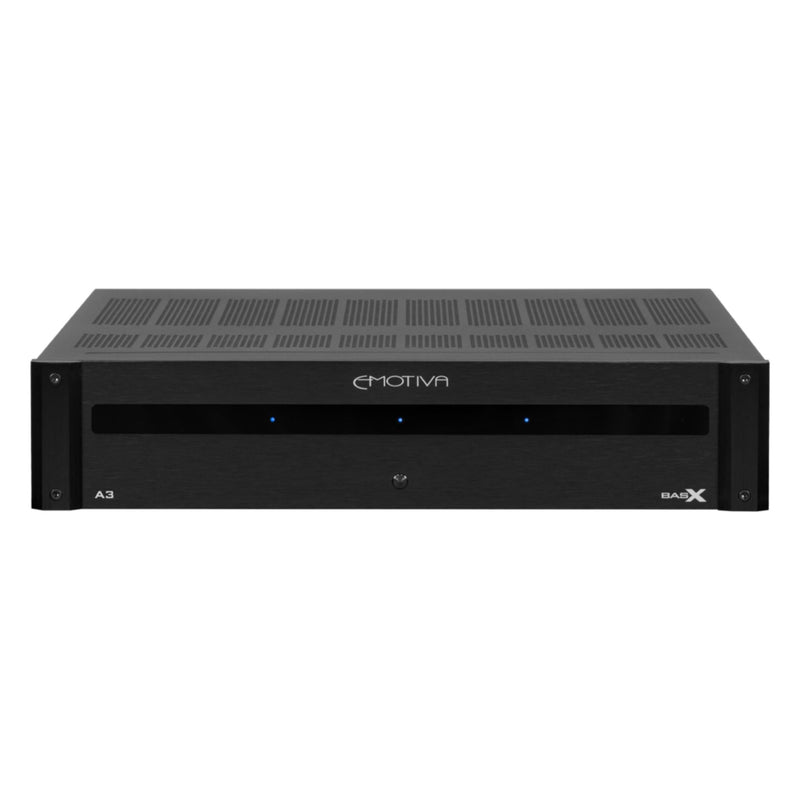

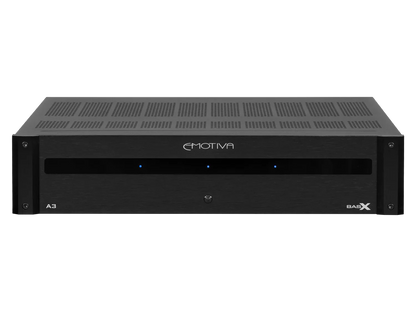

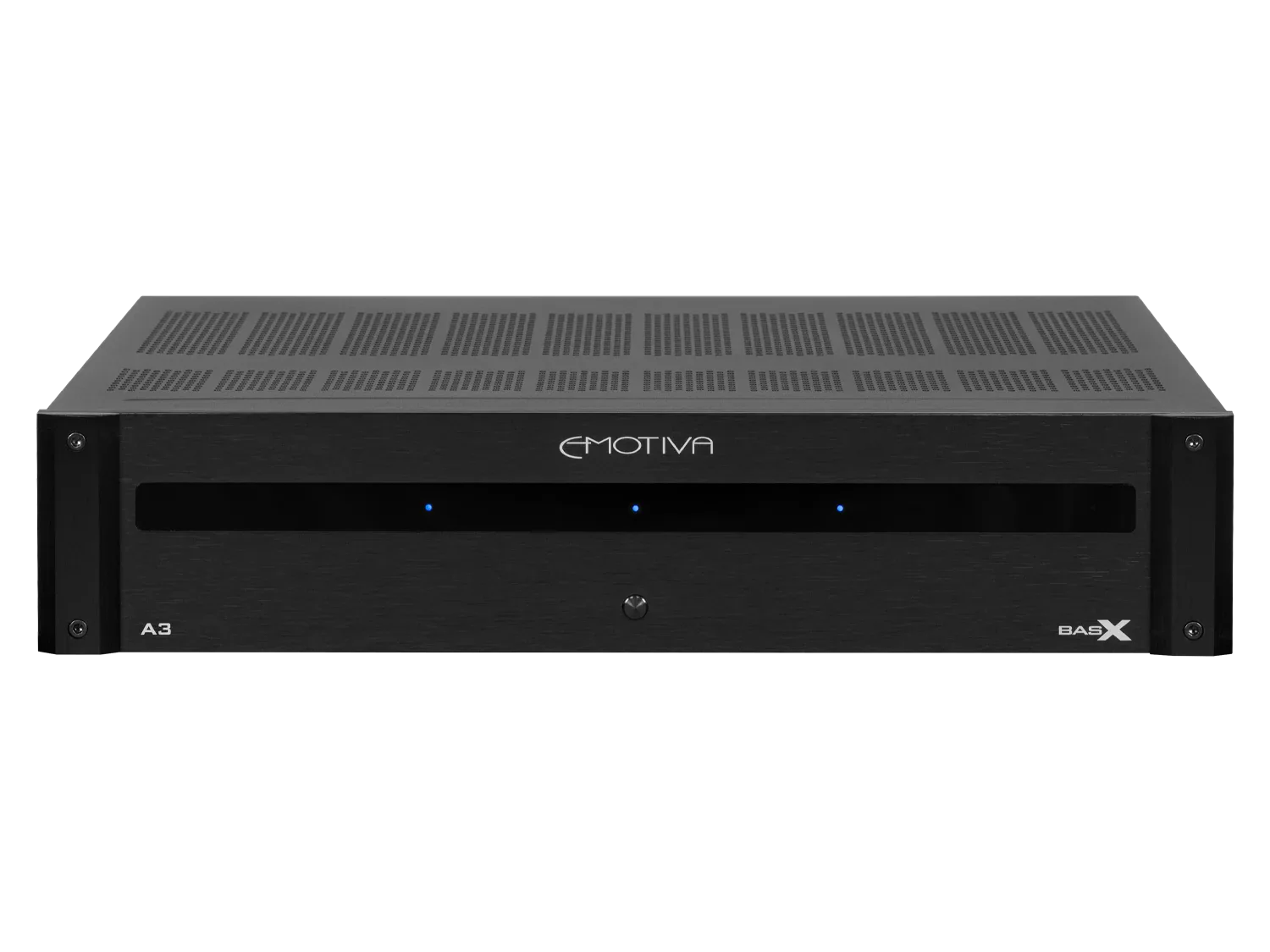

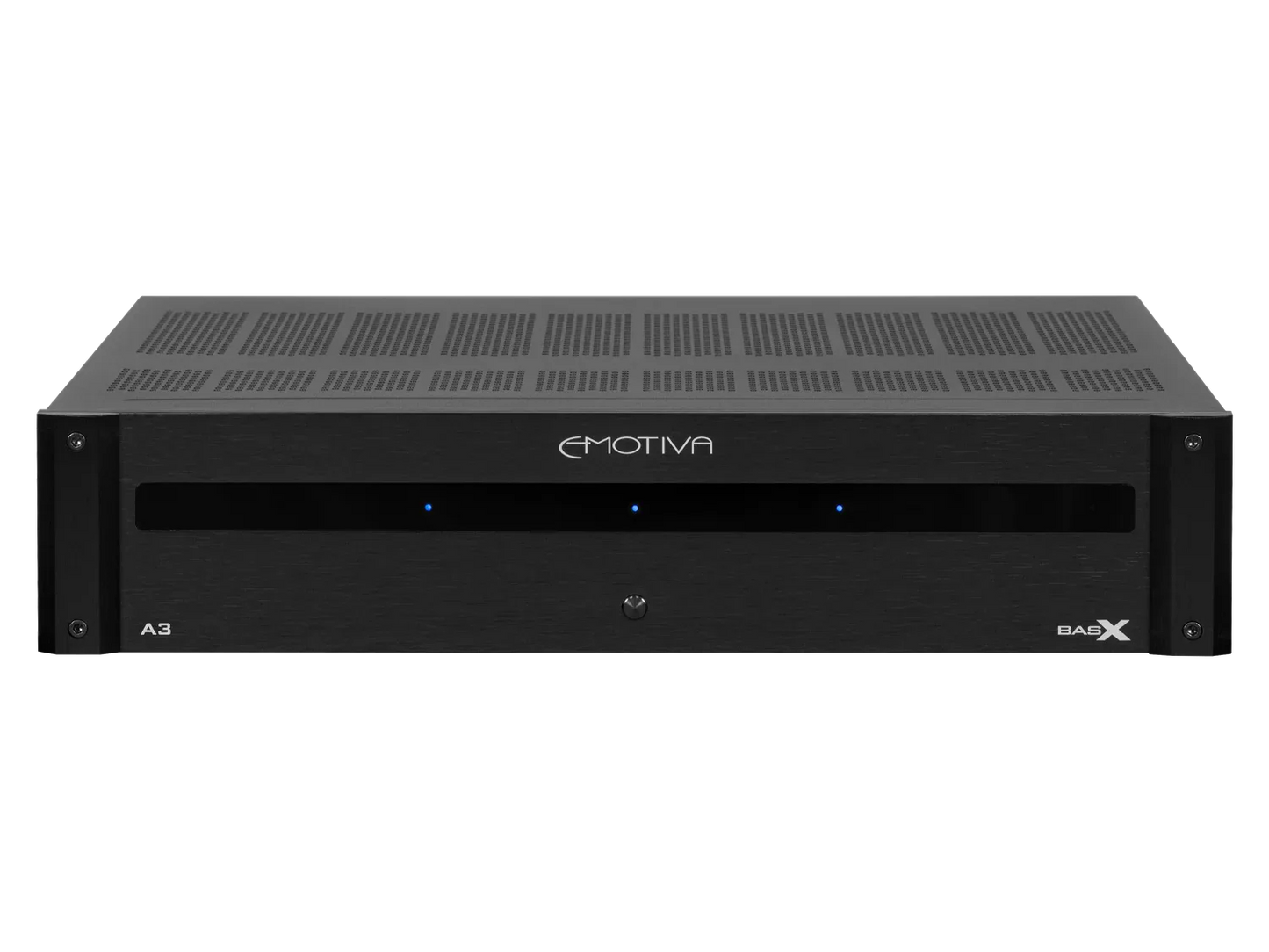

Front Panel Controls and Indicators
Standby: push button.
Status LEDs: one per channel; blue.
Standby LED: amber.

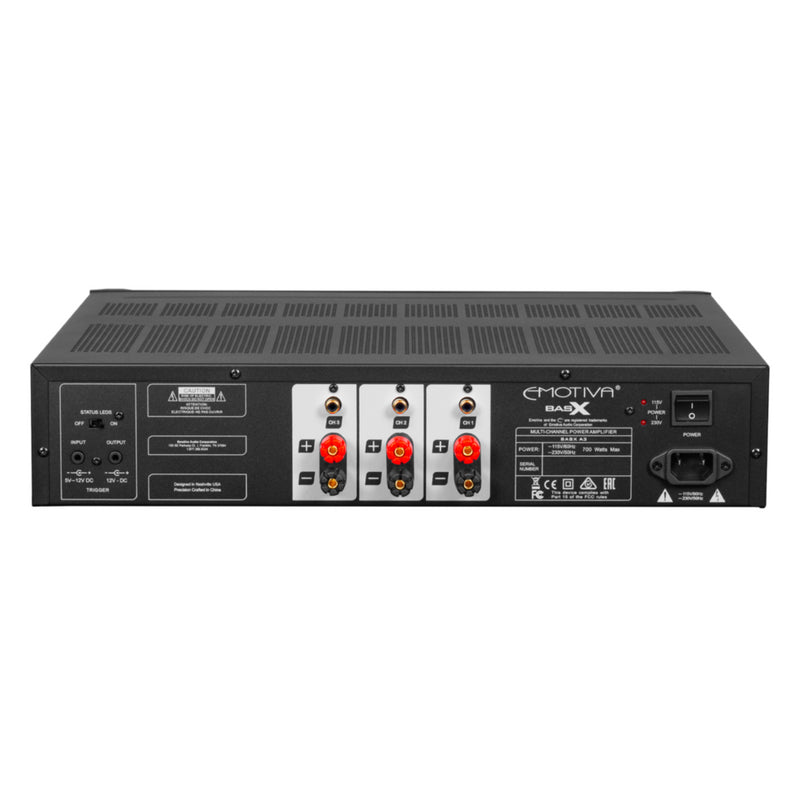

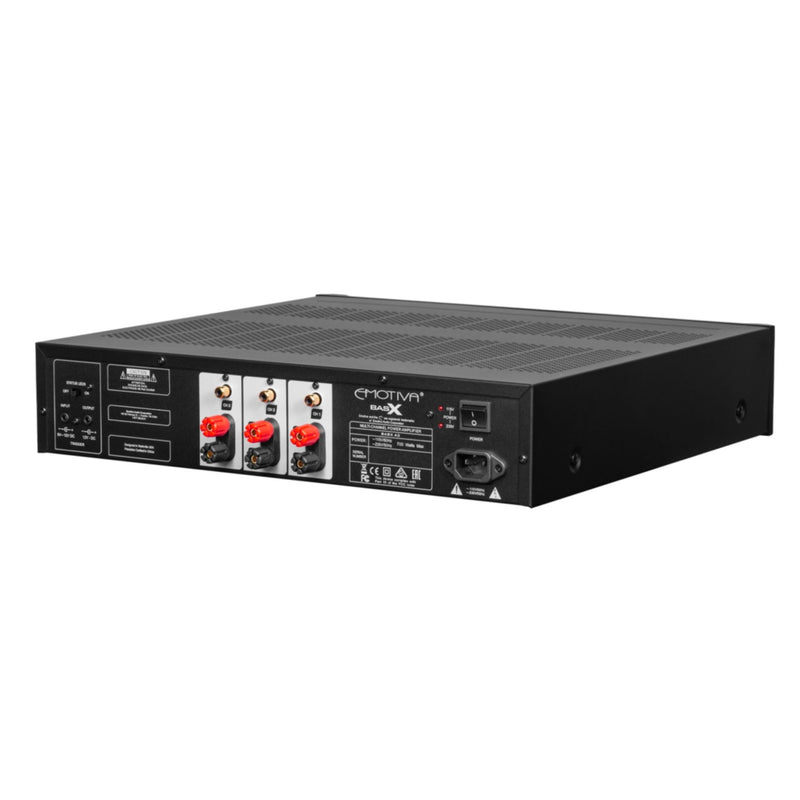

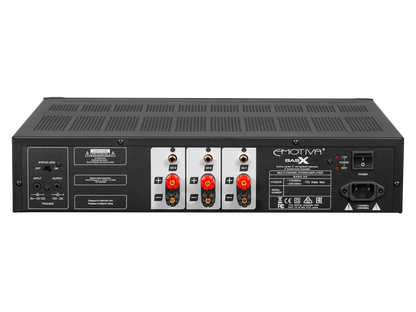

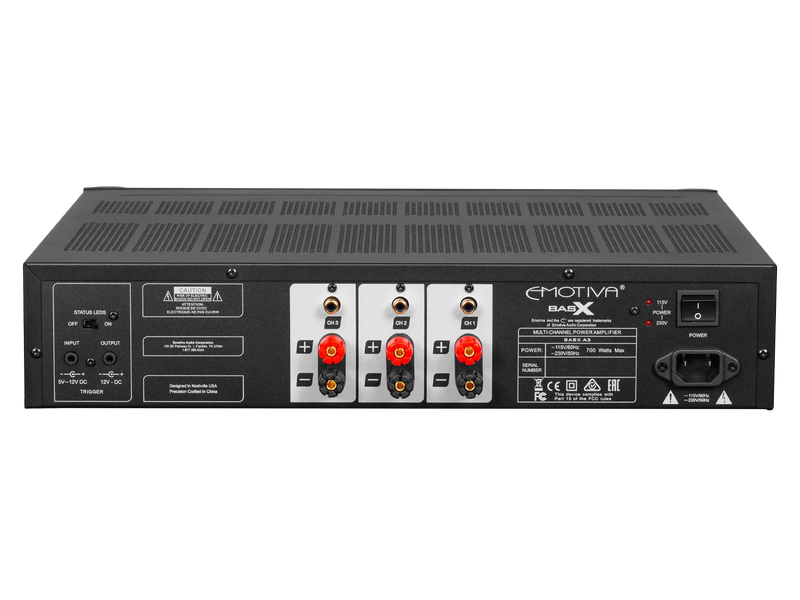

Rear Panel Controls and Indicators
AC Power switch: rocker switch (switches AC main power).
Status LEDs switch: disables front panel Status LEDs.
Warranty
Warranty Type Official Manufacturer Warranty
Warranty Period 3 year
