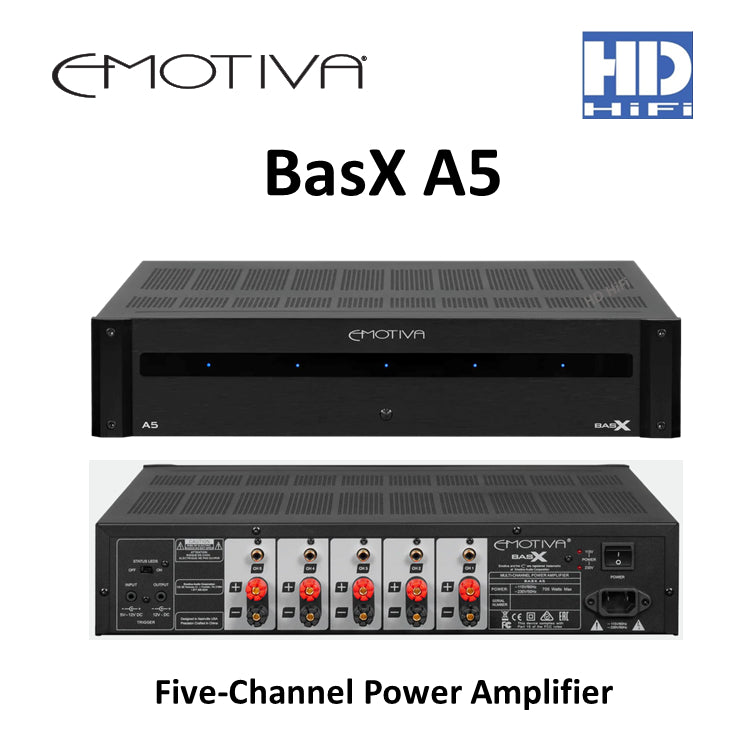

Emotiva BasX A5 Five Channel Power Amplifier - 5 Black A/B 130w Home Surround
Emotiva BasX A5 Five Channel Power Amplifier - 5 Black A/B 130w Home Surround
Product Description
Enhance your home theater experience with the Emotiva BasX A5 Five-Channel Power Amplifier, meticulously designed for impeccable performance within a 5 channel systems. This amplifier delivers powerful, lifelike audio, setting itself apart with its superior technology and components, surpassing the A2, A3, and A4 models due to its additional output channels.
The BasX A5 efficiently powers all channels except the subwoofer, with multiple connections, this amplifier seamlessly integrates with any AV processor and speaker configuration, even featuring trigger input and output functionalities.
Versatile Audio Performance
The BasX A5 ensures an exceptional audio experience across music genres and movie genres alike. Its meticulously engineered input stage and high-quality class A/B output stage guarantee smooth, detailed, and realistic sound reproduction. Experience minimal noise levels and a broad frequency bandwidth for immersive audio.
Advanced Fault Protection System
Safeguard your equipment with the BasX A5's fault protection system, designed to quietly shield the power amp from common faults like power cuts, surges, and overloads. This crucial feature prevents unwanted noise disturbances and ensures the safety of your audio setup.
Premium Design and Build Quality
Crafted with top-tier components, the BasX A5 guarantees a trouble-free, high-performance operation. Its heavy-duty linear power supply, paired with an oversized toroidal power transformer, effortlessly drives even the most challenging speakers. Utilizing double-sided FR4 circuit boards with plated-through holes enhances the signal path for optimal performance.
Modern Elegance

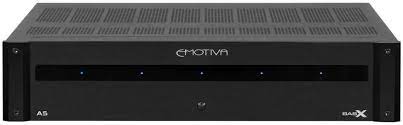

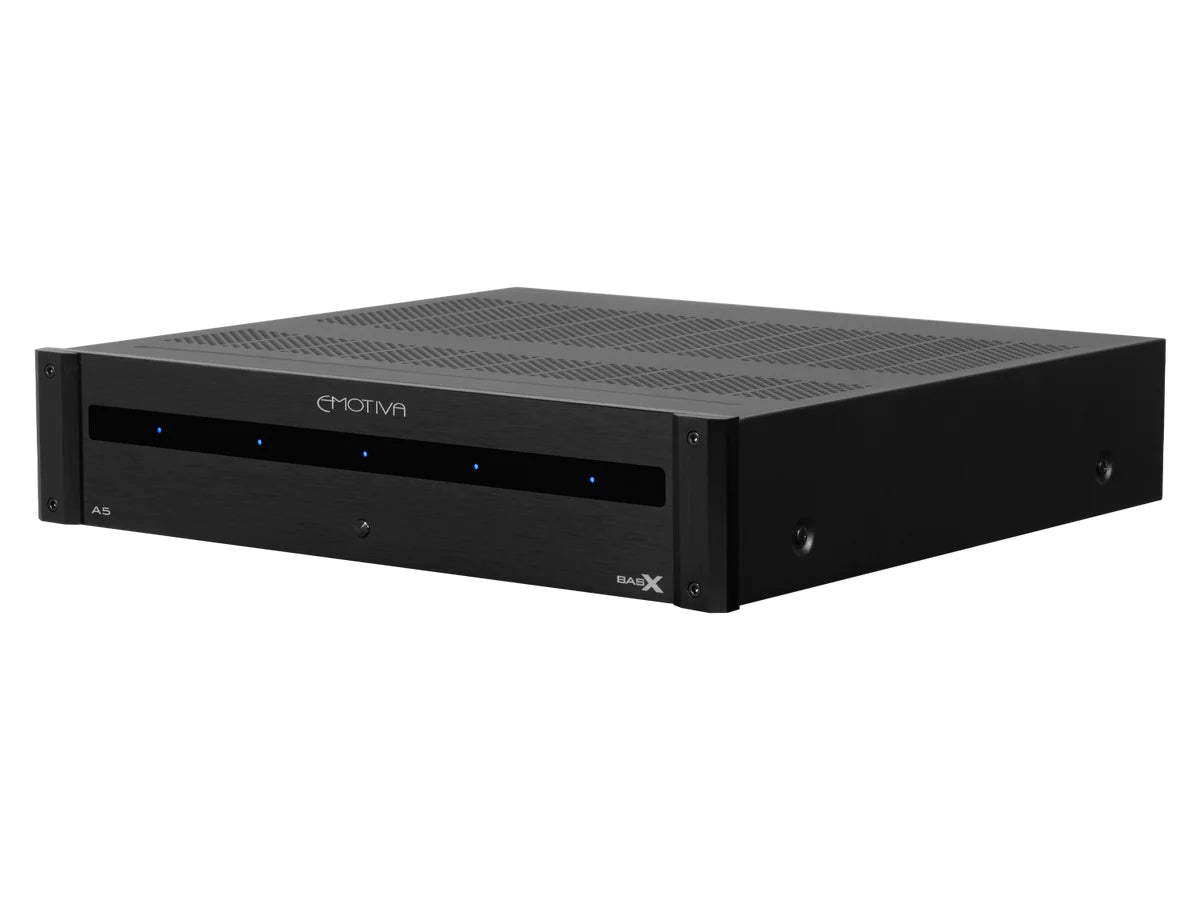

Exuding modernity, the BasX A5 boasts a minimalist black, milled aluminum front panel adorned with few controls, complemented by a robust steel chassis. Its sleek design harmonizes effortlessly with various home decors and connected hi-fi gear, adding a touch of style to your entertainment setup.
Elevate your audio journey with the Emotiva BasX A5 Five-Channel Power Amplifier, a blend of superior performance, reliability, and contemporary aesthetics for an immersive 5.1 surround sound experience.
Features:
Equipped with advanced technology and components for enhanced performance
Offers five output channels, ideal for powering all channels except the subwoofer
Multiple connectivity options for seamless integration with AV processors and speaker setups, including trigger input and output
Exceptional audio performance across various music and film genres
Utilizes a high-quality class A/B output stage and optimized input stage for smooth, detailed, and realistic sound reproduction
Features a silent yet robust fault protection system safeguarding against power cuts, surges, and overloads to prevent unwanted noise disturbances
Constructed with premium components including a heavy-duty linear power supply and oversized toroidal power transformer for driving even the most demanding speakers
Utilizes double-sided FR4 circuit boards with plated-through holes to optimize the signal path
Stylish design with a minimalist black, milled aluminum front panel and a sturdy steel chassis, suitable for various home decors and hi-fi setups.
We are an authorised Emotiva dealership, so you can be assured of new and genuine products, covered by a full manufacturers warranty.
- This support with all types of audio systems with all types of music.
- It gives detailed sound and incredibly natural imaging.
- It has Low noise, wide bandwidth design, and a highly optimized input stage.
- It has heavy duty linear power supply with an oversized toroidal power transformer.
IN THE BOX | |
---|---|
Sales Package | Emotiva BasX-A-5 Five-Channel Power Amplifier and User documentation |
General | |
---|---|
Brand | emotiva |
Model | Basx-A-5 |
Year | |
Color | black |
Dimension | |
---|---|
Dimension |
17” wide x 4” high x 15-1/2” deep (not including connectors).
21-1/2” wide x 8” high x 21” deep (boxed).
|
Weight |
26.5 lbs (unboxed)
33 lbs (boxed)
|
Specification | |
---|---|
Audio Specifications
|
Power Output (ALL channels driven):
95 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms.
130 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.
Power Output (two channels driven):
120 watts RMS per channel; into 8 Ohms.
175 watts RMS per channel; into 4 Ohms.
Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.02 dB)
Broad Band Frequency Response: 10 Hz to 80 kHz +0/-1.8 dB
THD + noise: < 0.02% (A-weighted); ref rated power
Signal to Noise Ratio (8 Ohm load):
> 116 dB; ref rated power; (A-weighted).
Minimum Recommended Load Impedance (per channel): 4 Ohms
(which equals one 4 Ohm load or two paralleled 8 Ohm loads).
Damping Factor (8 Ohm load): > 500.
Input Sensitivity (for rated power; 8 Ohm load): 1.2 V.
Gain: 29 dB.
Input Impedance: 27 kOhms.
|

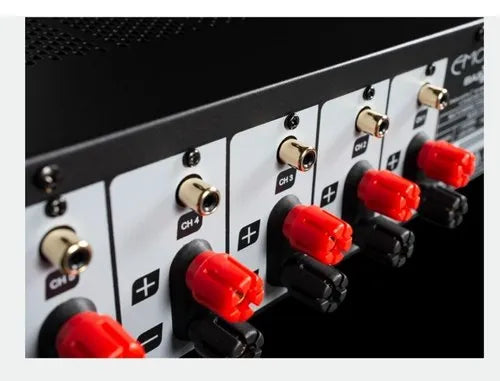

Input & Output Connections
|
Input Connections: Unbalanced (RCA); one each per channel.
Speaker Output Connections: Audiophile grade 5-way binding posts.
Trigger:
Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required.
Trigger Output: 12 VDC; can drive any load up to 120 mA.
|
Power Requirements
|
115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).
|
Front Panel Controls and Indicators
|
Standby: push button.
Status LEDs: one per channel; blue.
Status LEDs change to red to indicate a fault condition.
Standby LED: amber.
|

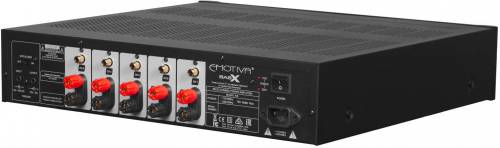

Rear Panel Controls and Indicators
|
AC Power switch: rocker switch (switches AC main power).
Status LEDs switch: disables front panel Status LEDs.
|
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 3 year |
