Product Description

• Delivers blockbuster bass performance from a compact and unobtrusive cabinet.
• Create a life-like ambiance or immerse you in the thick of the action.
• The cone material is formed with a unique mix of fibers to create a light, stiff, and near-perfect rigid diaphragm for supremely accurate bass.
• Light, stiff, and near-perfect rigid diaphragm for supremely accurate bass.
• Advanced DSP technology, the F3-8 delivers accurate low-frequency performance.
• Its innovative Bass Boost switch engages the full power of the DSP engine to deliver outstanding LFE effects for home theatre applications.

the technical specifications, features, and design aspects of the Fyne Audio F3-8 Subwoofer. Engineered to deliver deep, impactful bass, the F3-8 subwoofer enhances any home audio or cinema system, providing a rich and immersive listening experience. Its compact design allows for flexible placement within any room.

2. General Specifications
Product Name: Fyne Audio F3-8 Subwoofer
Series: F3
Enclosure Type: Bass reflex, downward-firing port
System Type: Active subwoofer
Color Options: Black, Walnut
3. Dimensions and Weight
Height: 300mm (11.8 inches)
Width: 275mm (10.8 inches)
Depth: (including terminals) 300mm (11.8 inches)
Weight: 11.9 kg (26.2 lbs)
4. Performance
Frequency Response: 35 Hz - 120 Hz (-6 dB)
Amplifier Power (RMS): 150 Watts
Driver Size: 200mm (8 inches)
Phase Adjustment: 0 - 180 degrees
Crossover Frequency Adjustment: 40 Hz - 140 Hz
5. Features
5.1 Driver
Type: Long-throw, multi-fibre paper cone
Surround: Rubber for extended excursion
5.2 Amplifier
Type: High-efficiency Class D amplifier
Controls: Volume, Phase, Crossover Frequency
5.3 Port Design
Type: Downward-firing, tuned bass reflex port for reduced turbulence and enhanced low-frequency response.

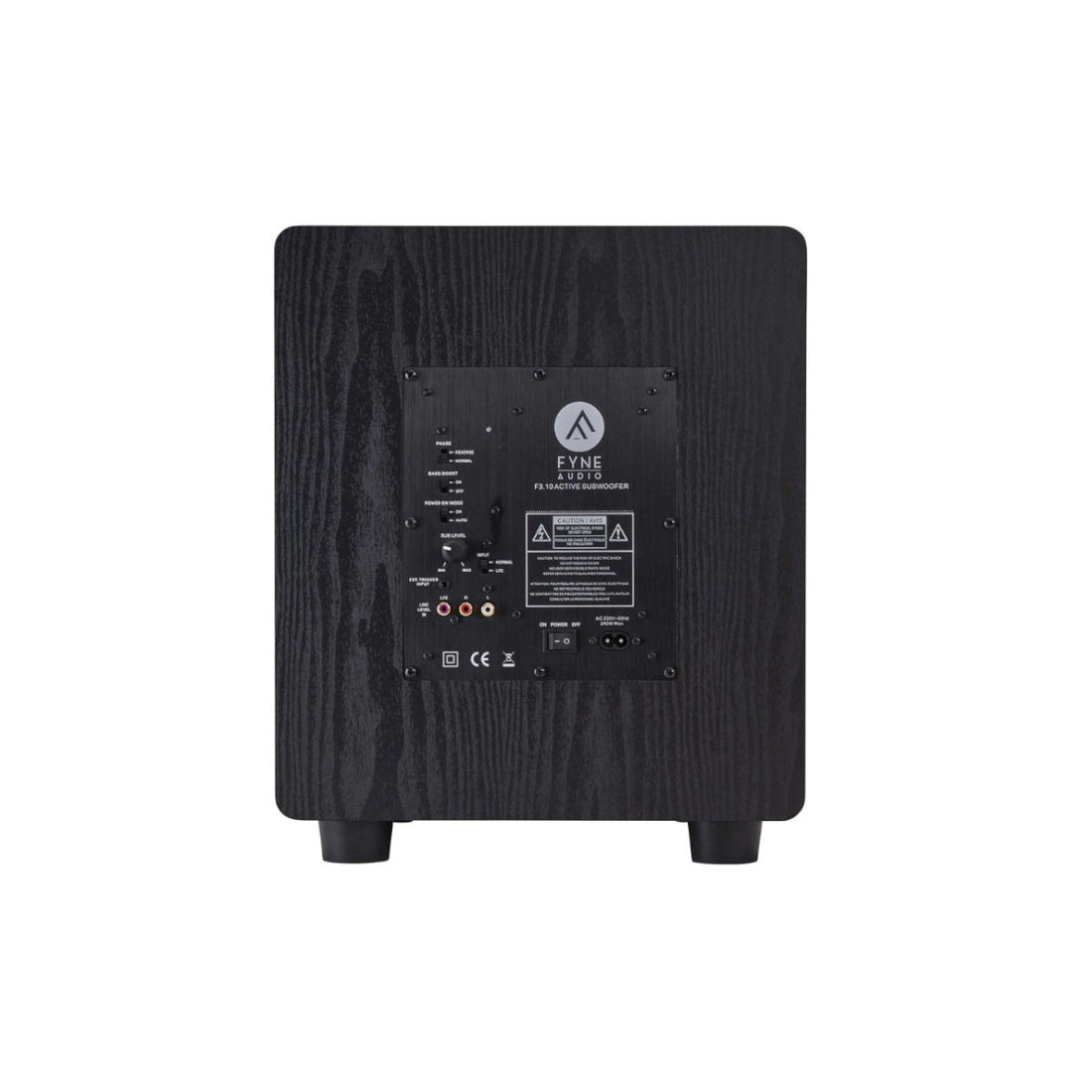

6. Connections
Input Connectors: LFE (Low Frequency Effect) input, Stereo RCA line-level inputs
Auto Power On/Off: Yes, with sensitivity adjustment
7. Additional Features
Cabinet Construction: Rigid MDF construction with internal bracing to reduce resonance
Feet: Rubber feet to reduce vibration transmission and protect floor surfaces
Grille: Removable fabric grille to protect the driver
8. Accessories (Included)
1 x Power Cable
1 x User Manual
9. Warranty
Standard Warranty Period: 2 years
10. Compliance and Certifications
RoHS Compliant: Yes
CE Marked: Yes
11. Packaging
Box Contents: 1 x Fyne Audio F3-8 Subwoofer, 1 x Power Cable, 1 x User Manual
Package Dimensions: 350mm x 350mm x 400mm
Package Weight: 13 kg
