Product Description

• It uses a multi-fiber paper cone on the bass/mid-range drivers that helps deliver a natural-sounding mid-range.
• FyneFluteTM technology, used on the driver’s roll rubber surround, provides a non-homogeneous interface which very helps reduce cone energy.
• It features a powerful Neodymium magnet system and a 25mm Polyester dome.
• Comes with a durable CNC machined MDF board cabinet design.
• It uses precision components within its crossover including a low loss LF laminated core inductor and HF polypropylene capacitors.

technical specifications, features, and requirements for the Fyne Audio F301 Compact Bookshelf Speakers. Designed for audiophiles and music enthusiasts, the F301 speakers blend high-quality audio performance with a compact and aesthetically pleasing design, making them ideal for any home audio system or personal listening space.

2. General Specifications

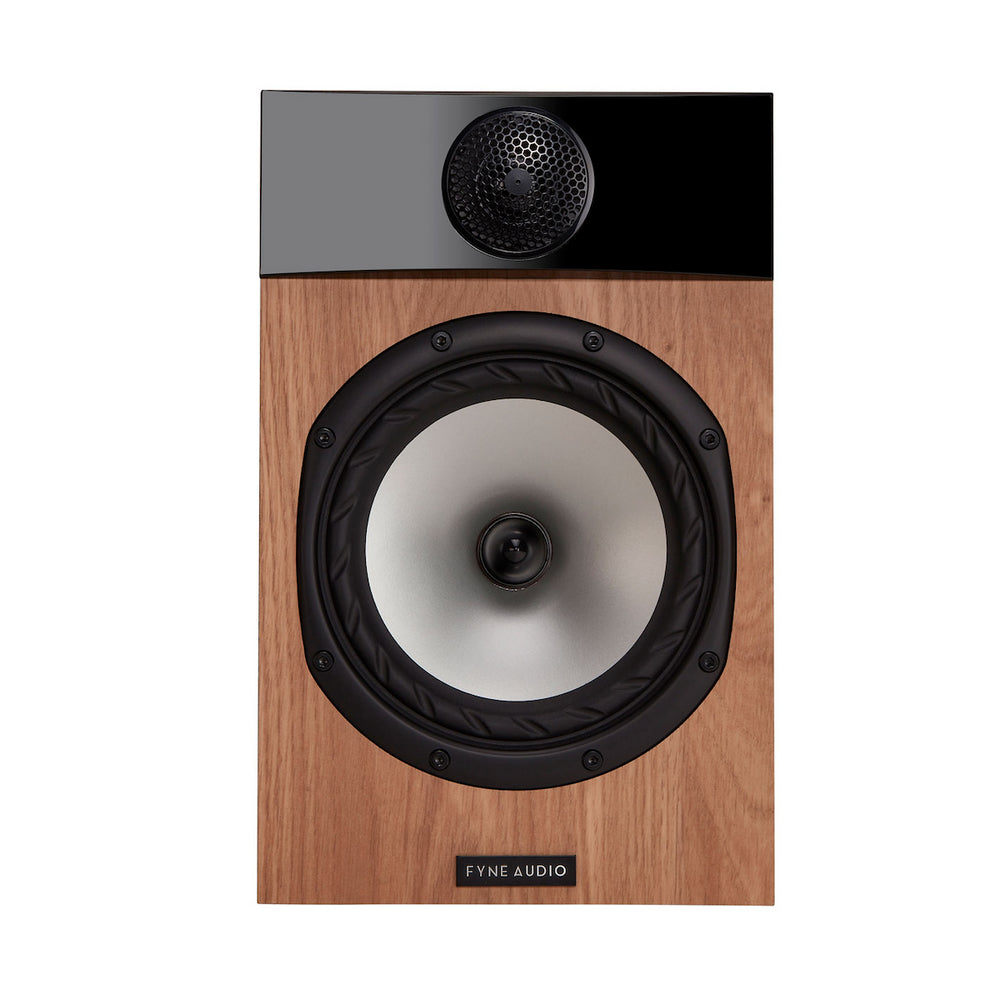

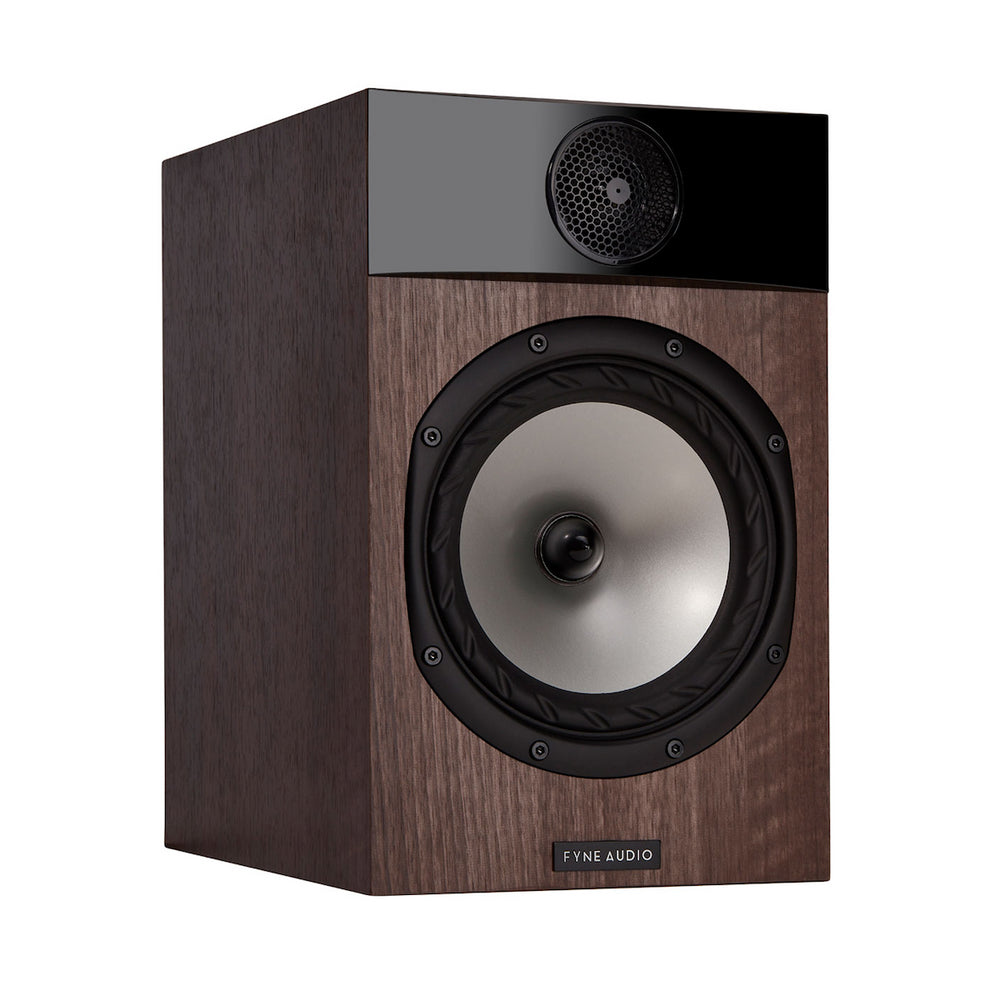

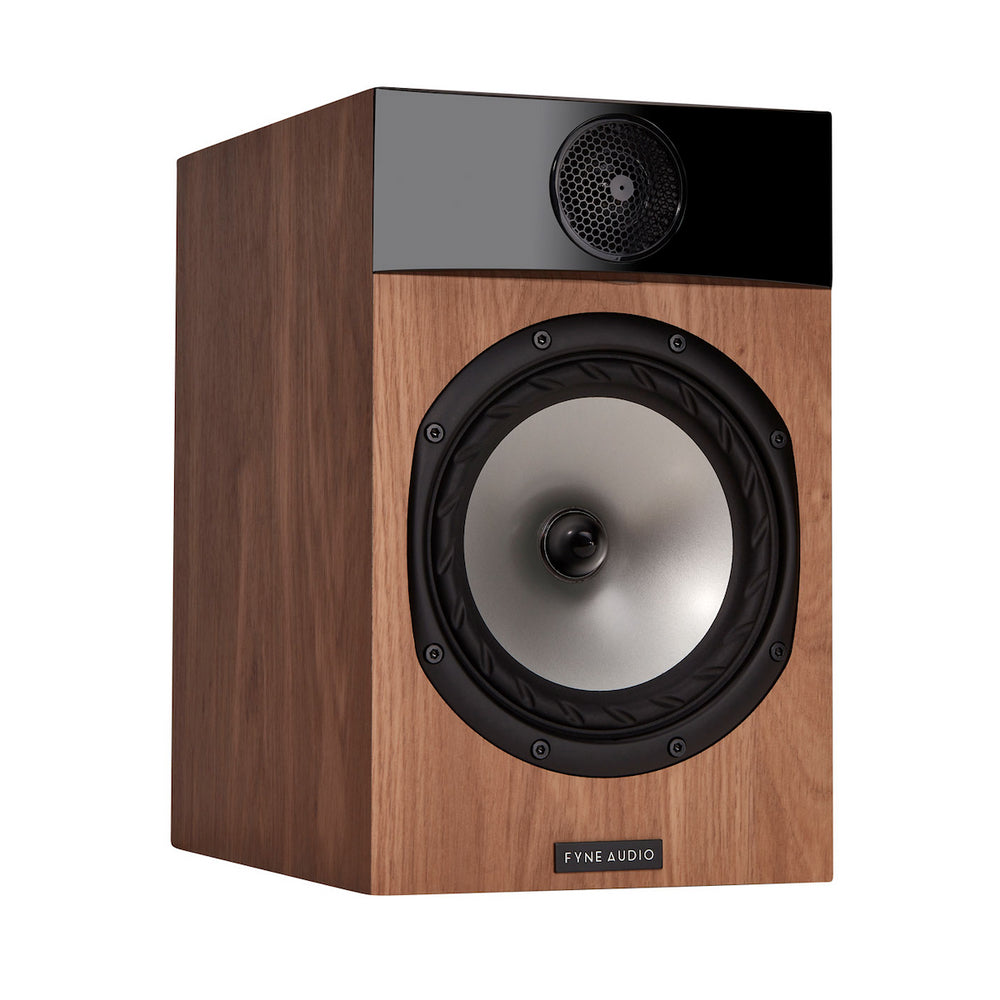

Product Name: Fyne Audio F301 Compact Bookshelf Speakers
Type: 2-way, rear-ported bookshelf speakers
Enclosure Type: Bass reflex
Recommended Placement: Bookshelf or stands
System Type: Passive
Color Options: Walnut, Black Ash, Light Oak
3. Dimensions and Weight
Height: 300mm (11.8 inches)
Width: 180mm (7.1 inches)
Depth: (including terminals) 270mm (10.6 inches)
Weight (each): 5.5 kg (12.1 lbs)
4. Performance
Frequency Response: 44 Hz - 28 kHz (-6 dB)
Sensitivity (2.83v @ 1m): 89 dB
Nominal Impedance: 8 Ohms
Recommended Amplifier Power: 25 - 100 W
Crossover Frequency: 3.2 kHz
5. Drivers
5.1 Tweeter
Type: 25mm (1 inch) polyester dome
Technology: FyneFlute technology for reduced distortion
5.2 Mid/Bass Driver
Size: 150mm (6 inches)
Material: Multi-fibre paper cone
Technology: Fyne Audio’s proprietary FyneFlute surround for enhanced midrange clarity
6. Connections

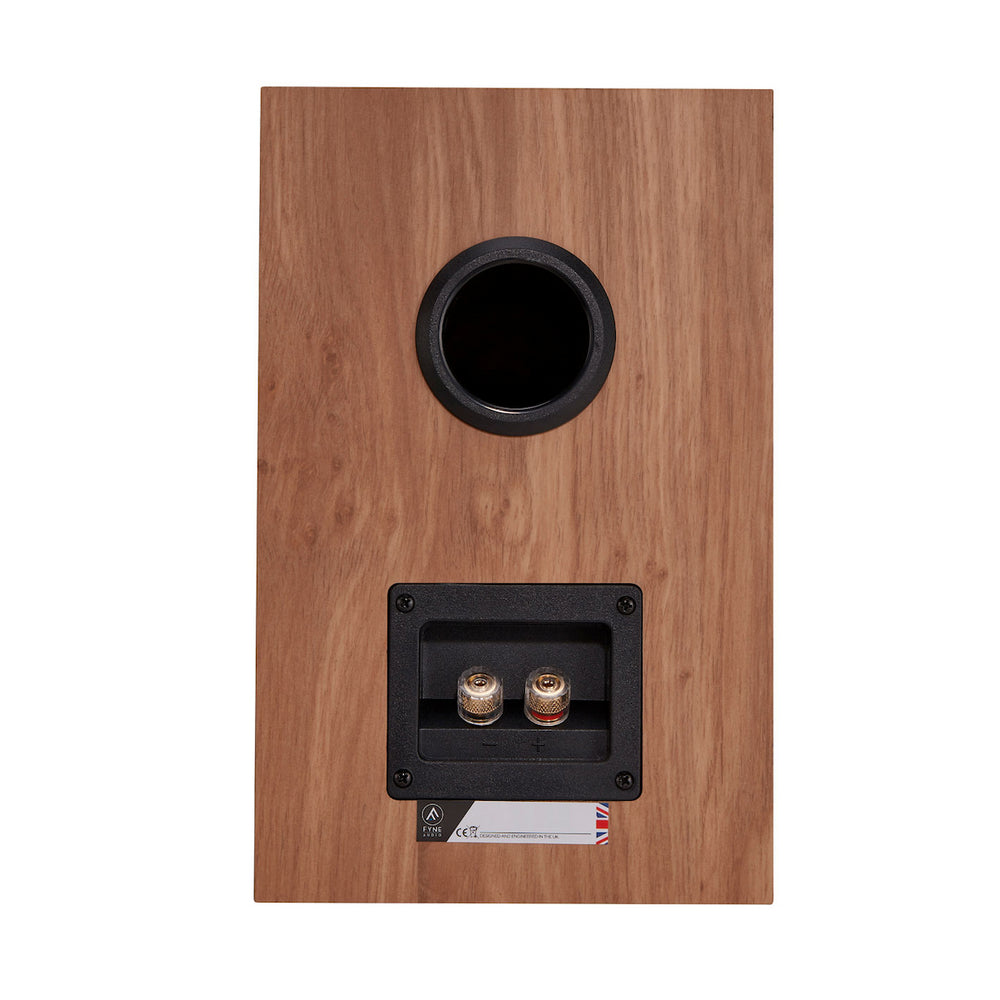

Input Type: Single-wire binding posts
Compatibility: Accepts banana plugs, spade connectors, or bare wire
7. Features
Bass Reflex Port: Mounted on the rear, designed for smoother low-frequency response and reduced turbulence.
Crossover: Optimized low-loss design for seamless driver integration.
Cabinet Design: Rigidly constructed with internal bracing to reduce resonance and improve sound clarity.

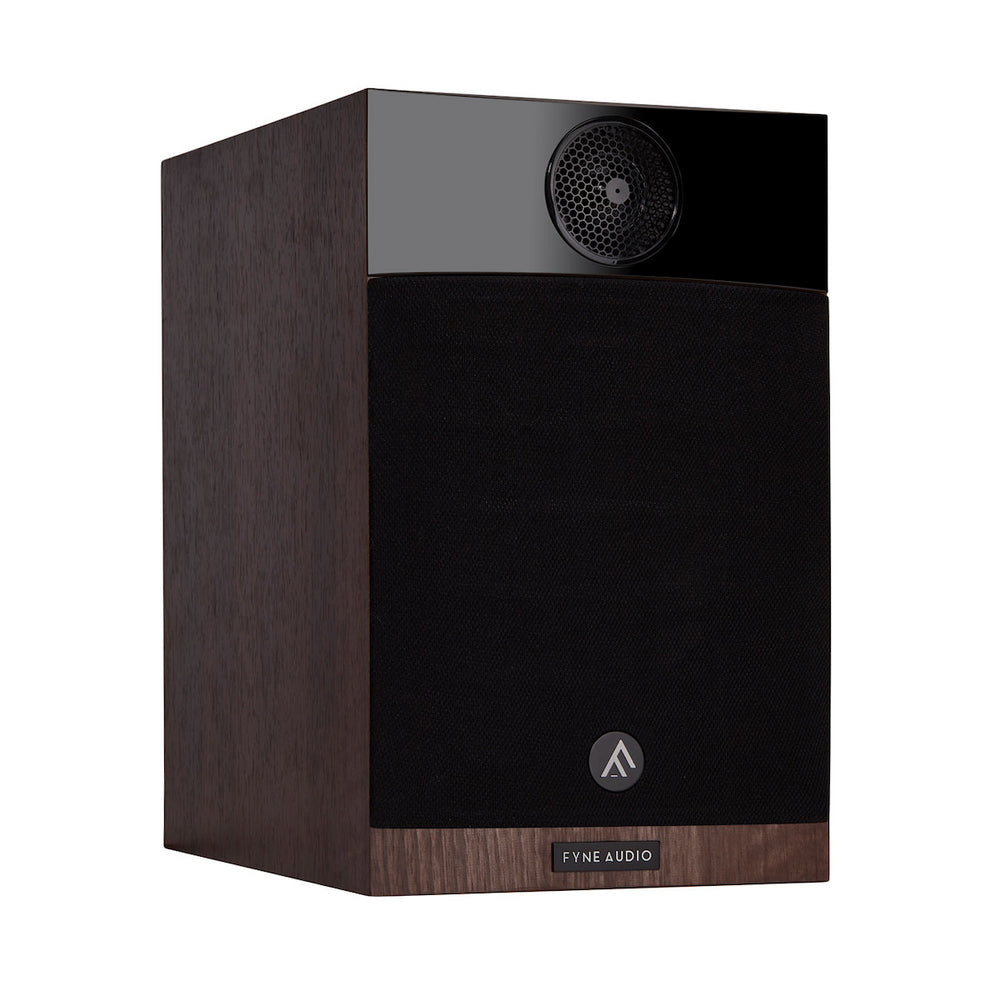

Grille: Removable, acoustically transparent fabric grille included.
8. Accessories (Included)
2 x Removable Speaker Grilles
4 x Rubber Feet (for each speaker)
User Manual
9. Warranty
Standard Warranty Period: 5 years (upon registration)
10. Compliance and Certifications
RoHS Compliant: Yes
CE Marked: Yes
11. Packaging
Box Contents: 2 x Fyne Audio F301 Compact Bookshelf Speakers, 2 x Removable Speaker Grilles, 8 x Rubber Feet, User Manual
Package Dimensions: 350mm x 400mm x 310mm
Package Weight: 12.5 kg
12. Disclaimer
Specifications are subject to change without notice. Fyne Audio reserves the right to modify or improve the design or specification of its products at any time, without prior notice.
