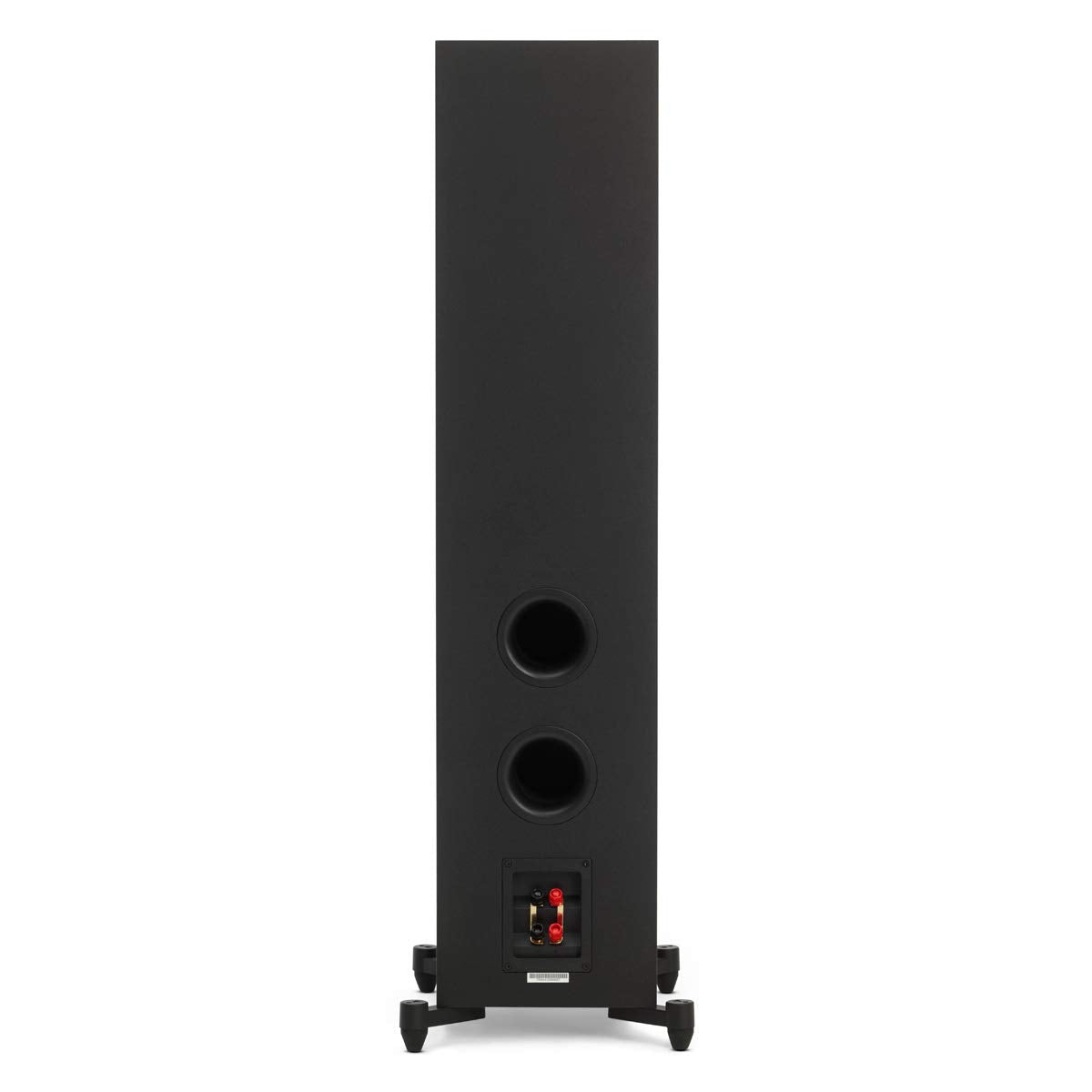

JBL STAGE A180

Dual 6.5-inch (165mm) 2 ½-way Floorstanding Loudspeaker

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A180 is the mid-size floorstanding loudspeaker of the JBL Stage Series. The compact footprint features a 2 ½-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and dual 6.5-inch (165mm) Polycellulose cone woofers for signature JBL bass.

FEATURES

2 x 6.5-inch (165mm) Polycellulose Low-Frequency Woofer



New High Definition Imaging (HDI) Waveguide



1-inch (25mm) Aluminum Dome Tweeter



TWO-TONE UNIQUE DESIGN FOR WOOD



•
•
•
•
•

PRODUCT DESCRIPTION

JBL A180

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A180 is the mid-size floorstanding loudspeaker of the JBL Stage Series. The compact footprint features a 2 ½-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and dual 6.5-inch (165mm) Polycellulose cone woofers for signature JBL bass.

GENERAL SPECIFICATIONS

2.5 way, dual 6.5", 1" aluminum tweeter floor standing loudspeakerYes

2 x 6.5" (165mm) Polycellulose Low-Frequency WooferYes

New High Definition Imaging (HDI) WaveguideYes

1” (25mm) Aluminum Dome TweeterYes

Recommended Amplifier Power20 – 225W

Frequency Response40Hz – 40kHz

Sensitivity90dB @ 1M, 2.83V

Nominal Impedance6 Ohms

Crossover Frequencies1.4kHz, 2.0kHz

Enclosure TypeBass-Reflex via Rear-Firing Tuned Port

Dimensions (W x D x H)230 x 295 x 1000mm

Weight38.03 lbs (17.25kg)

WHAT'S IN THE BOX?

• 1 x JBL Stage A180 Floor Standing Loudspeaker
• 4 x Outriggers
• 8 x Screws for Outriggers
• 4 x Floor Spikes
• 4 x Rubber Feet
• 1 x Owner’s Manual
• 1 x Warranty Card
