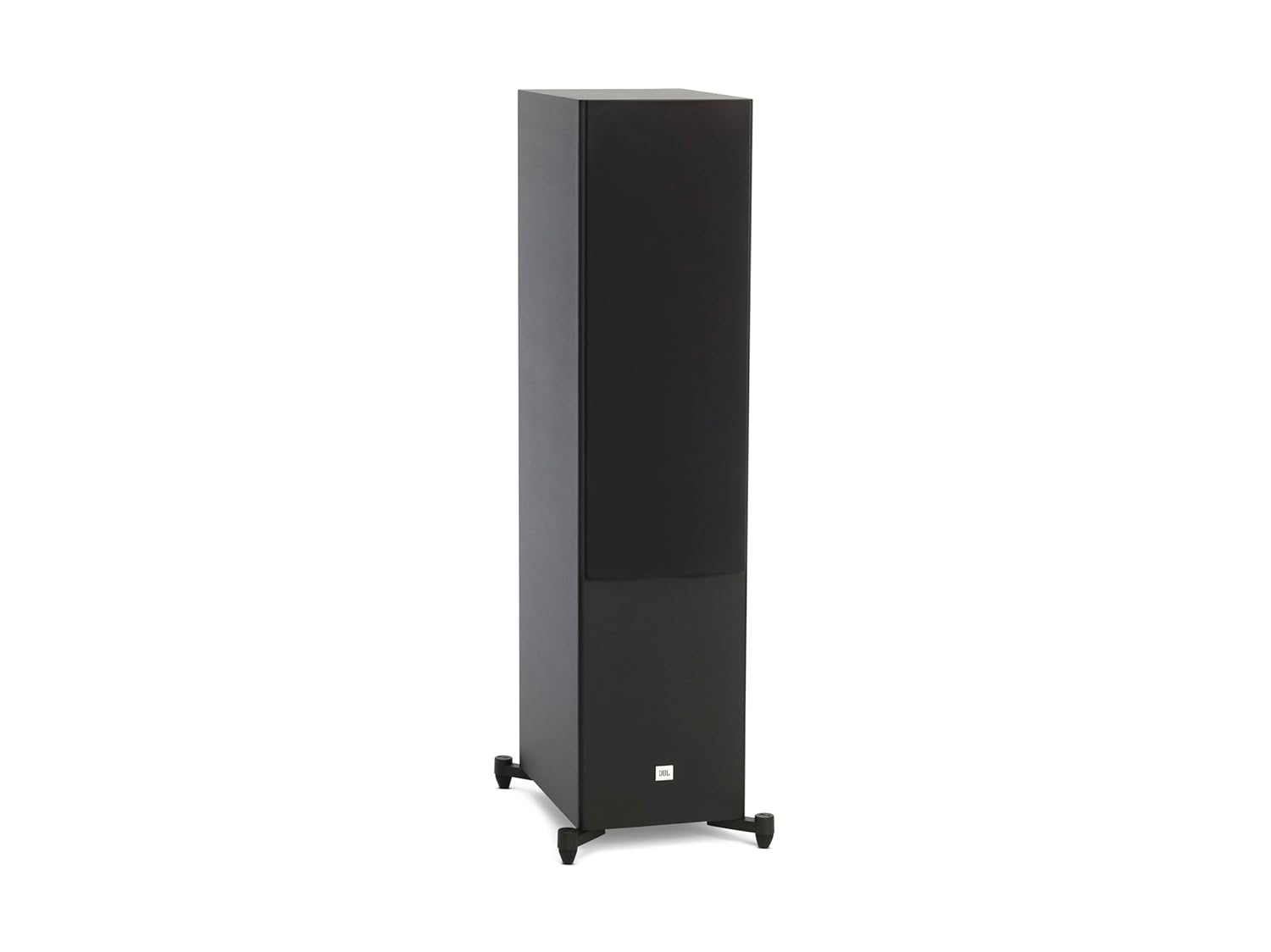

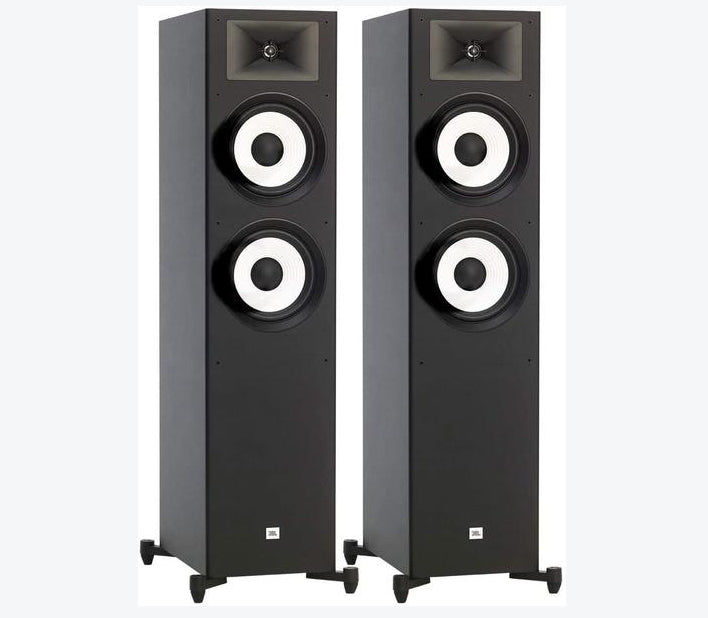

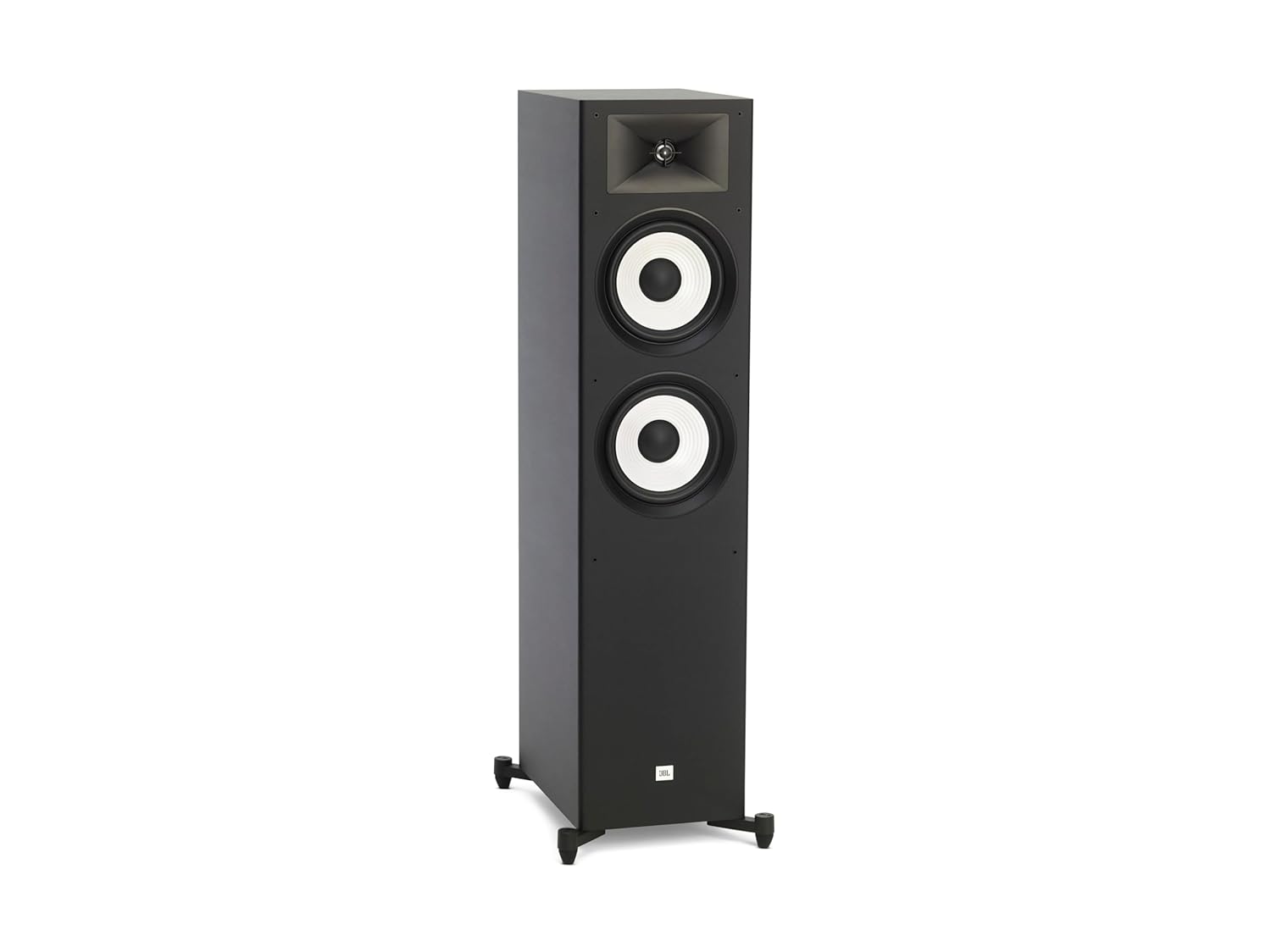

JBL STAGE A190

Dual 8-inch (200mm) 2 ½-way Floorstanding Loudspeaker

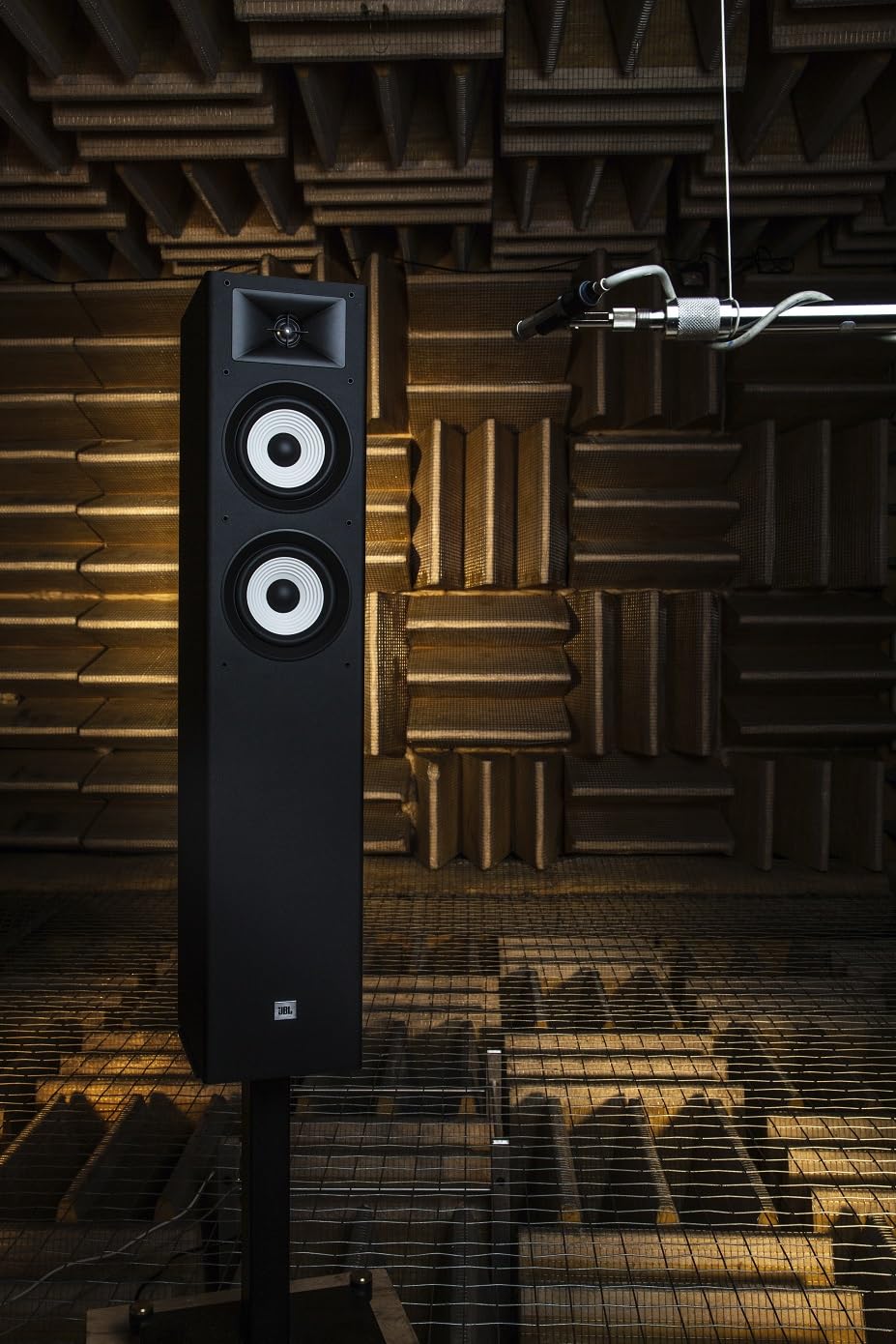

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A190 is the flagship of the JBL Stage Series. This floorstanding loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and dual 8-inch (200mm) Polycellulose cone woofers that provide deep, signature JBL bass.

FEATURES

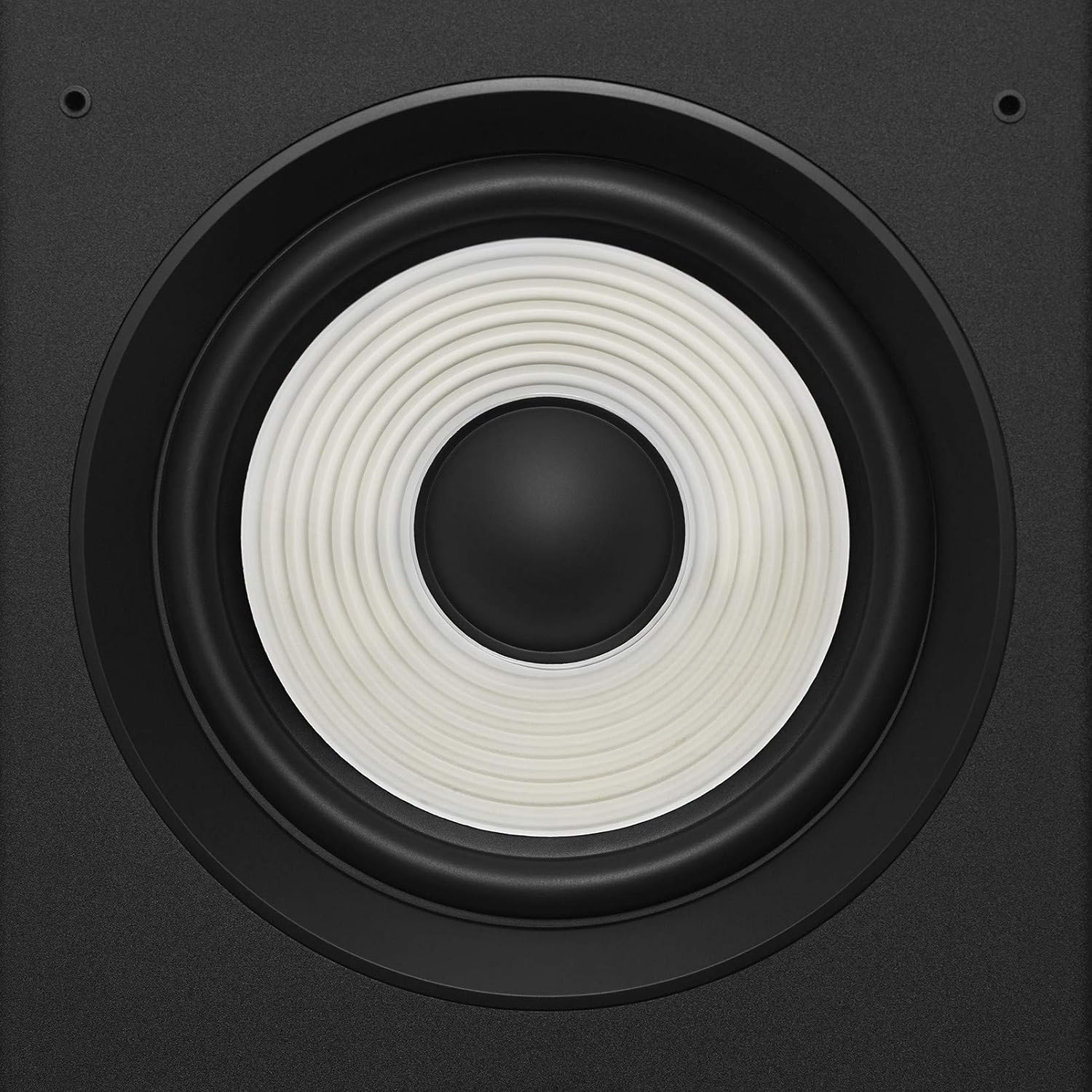

2 x 8" (203mm) Polycellulose Low-Frequency Woofer

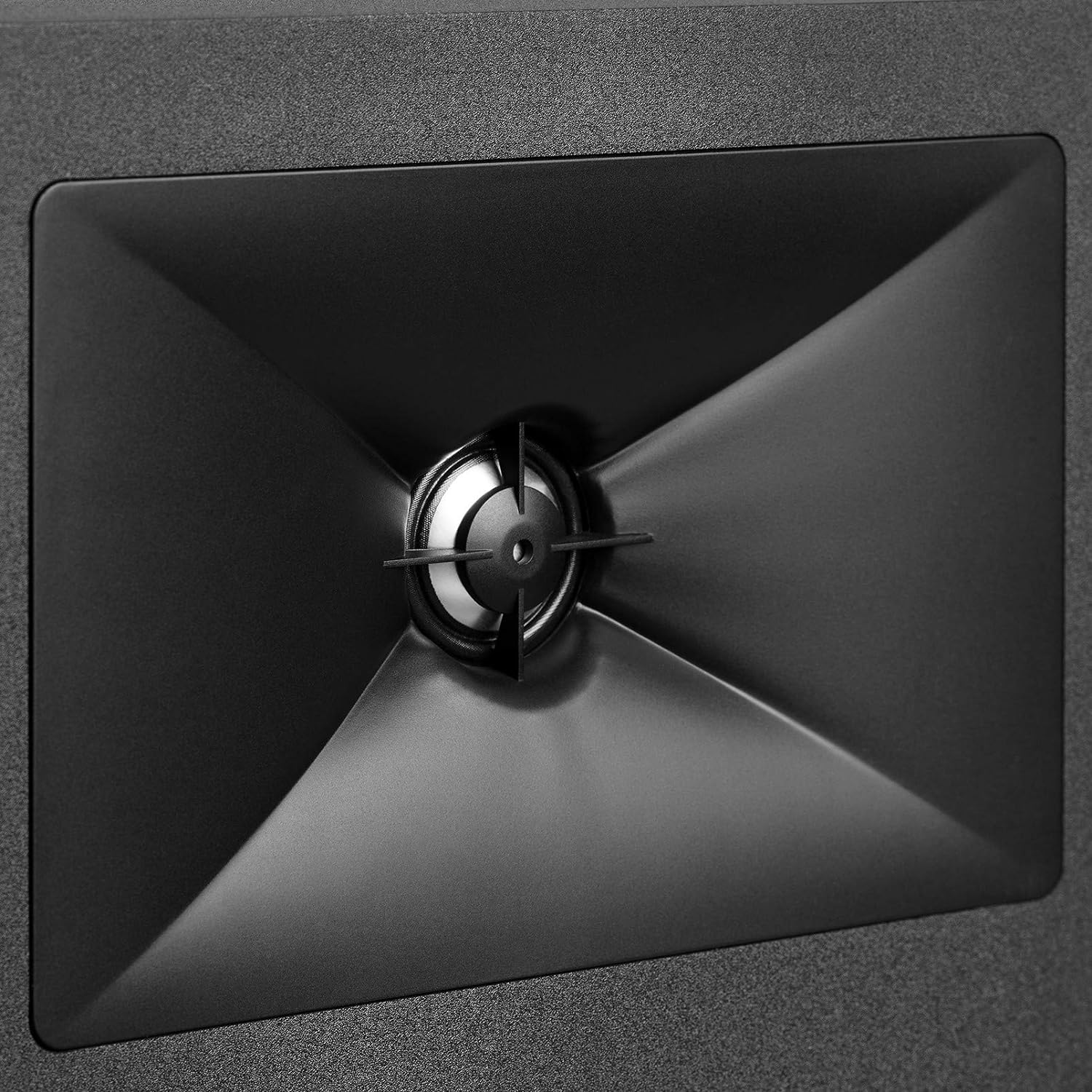

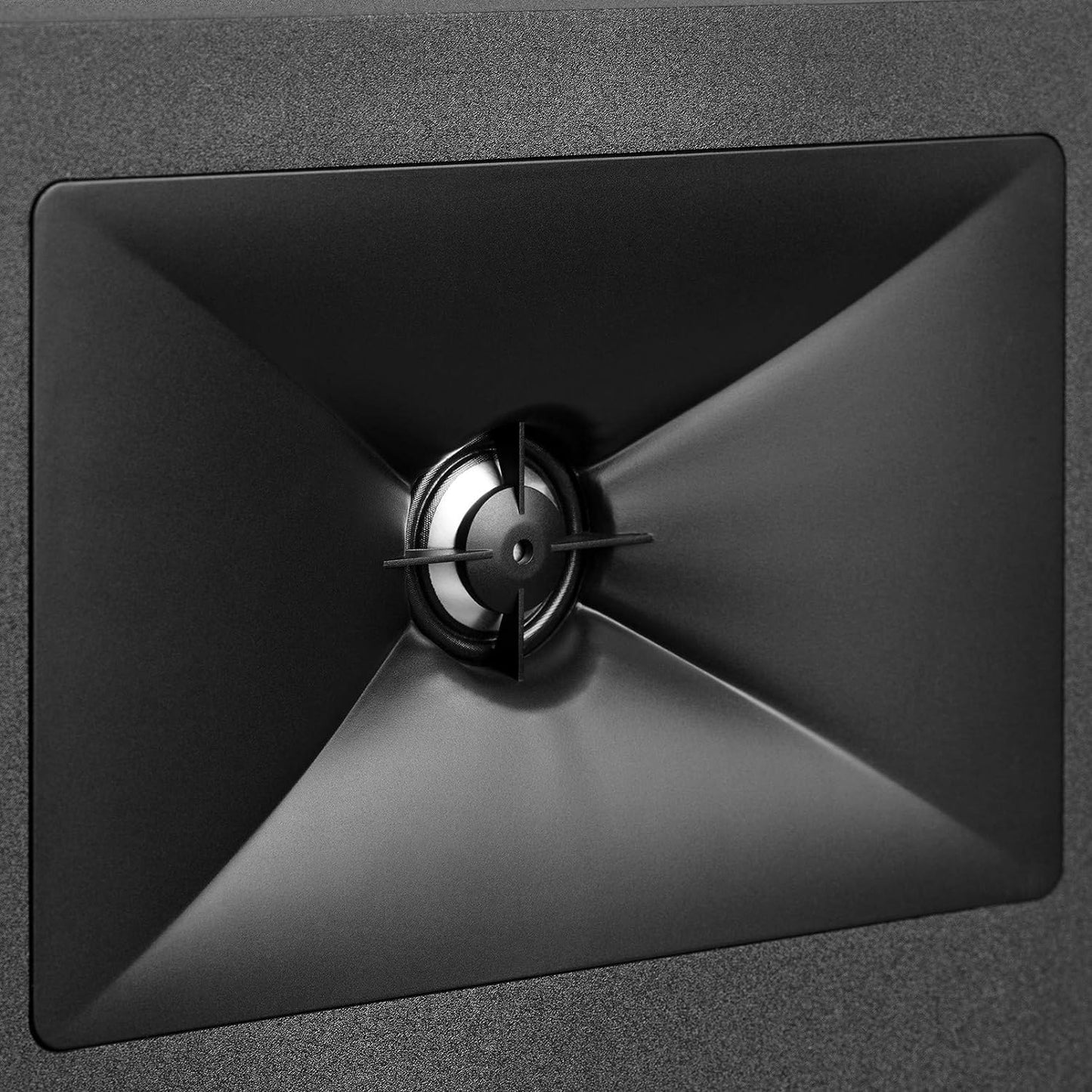

New High Definition Imaging (HDI) Waveguide



1-inch (25mm) Aluminum Dome Tweeter



TWO-TONE UNIQUE DESIGN FOR WOOD



•
•



PRODUCT DESCRIPTION

JBL A190

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A190 is the flagship of the JBL Stage Series. This floorstanding loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and dual 8-inch (200mm) Polycellulose cone woofers that provide deep, signature JBL bass.

GENERAL SPECIFICATIONS

Recommended Amplifier Power20 – 225W

Frequency Response36Hz – 40kHz

Sensitivity91dB @ 1M, 2.83V

Nominal Impedance6 Ohms

Crossover Frequencies1.4kHz, 2.0kHz

Enclosure TypeBass-Reflex via Rear-Firing Tuned Port

Dimensions (W x D x H)260 x 370 x 1070mm

Weight49.74 lbs (22.56kg)

WHAT'S IN THE BOX?

• 1 x JBL Stage A190 Floor Standing Loudspeaker
• 4 x Outriggers
• 8 x Screws for Outriggers
• 4 x Floor Spikes
• 4 x Rubber Feet
• 1 x Owner’s Manual
• 1 x Warranty Card
