Description

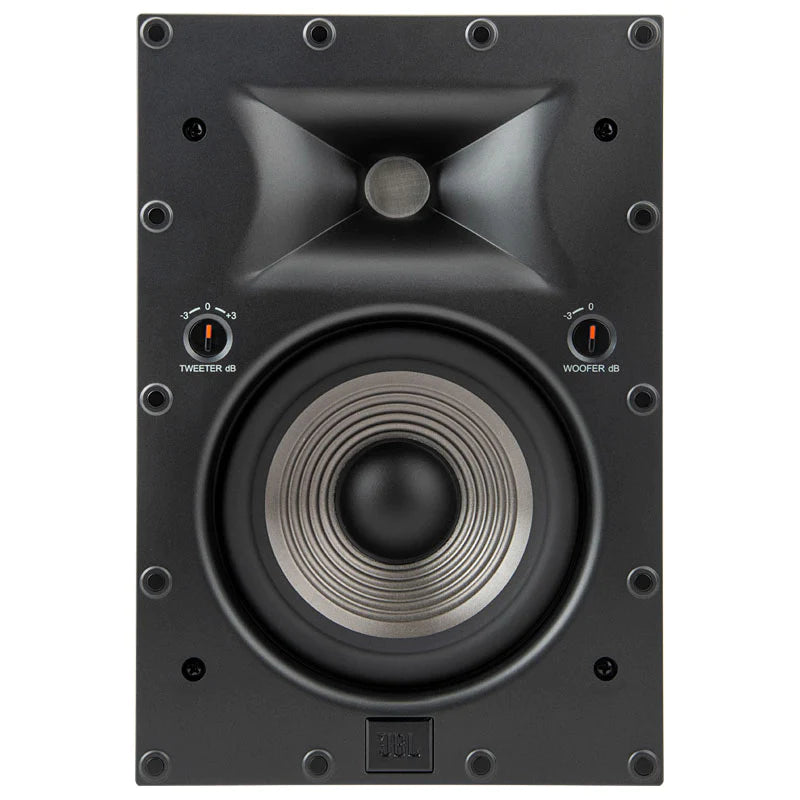

6.5" (165mm) 2-way In-Wall Loudspeaker

Featuring a 1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide and a 6.5" (165mm) Polyplas® cone woofer, the Studio 6IW perfect for use as fronts, sides, or rear channels of a high performance home theater. The dog leg mounting system provides easy installation and the zero bezel grilles make the 6IW visually discrete so they blend into the walls seamlessly. General Specification             High Frequency Transducer1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguideLow Frequency Transducer6.5" (165mm) Polyplas® wooferNominal Impedance6-OhmSensitivity (2.83V@1m)91dBPower Handling50W RMS (200W Dynamic)Recommended Amplifier Power50 - 70WFrequency Response45Hz - 20kHzCrossover Frequency2.5kHzGrille Dimensions (HxW)8.2" x 12" (209mm x 305mm)Cutout Dimensions (HxW)7.1" x 10.8" (180mm x 275mm)Mounting Depth3.74in
