JVC

JVC-DLA-NX9 | D-ILA Home Theater Projectors

JVC-DLA-NX9 | D-ILA Home Theater Projectors

Regular price Rs. 1,699,900.00
Regular price Rs. 1,699,900.00 Sale price Rs. 1,699,900.00
-0% OFF Sold out

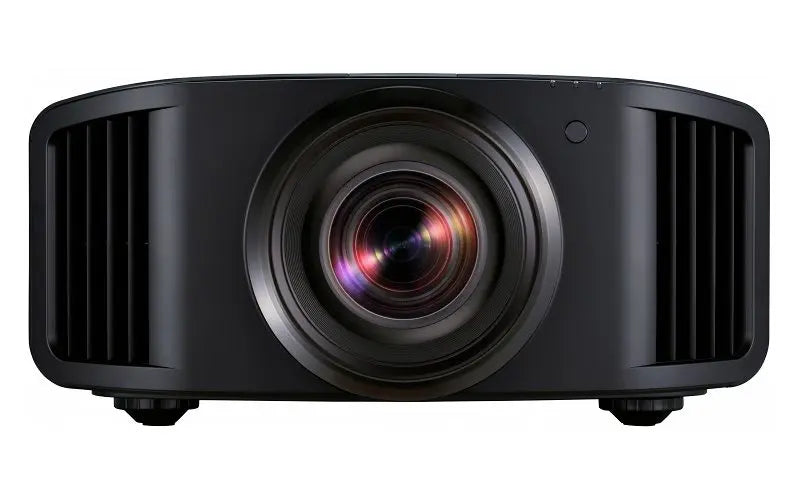

DLA-NX9....The DLA-NX9 is the world's first (as of 9/2018) 8K/e-shift home theatre projector featuring new 0.69-inch native 4K D-ILA device with a new external design. 8K/e-shift technology together with its 100mm diameter all-glass lens achieves 8K-equivalent resolution (8192 x 4320) that rivals reality even on large screens. Unique Multiple Pixel Control technology converts FHD and 4K images to high-definition 8K images. Auto Tone Mapping function which automatically adjust settings based on the mastering information projects HDR10 content at optimum quality. Combining brightness of 2,200 lm, dynamic contrast ratio of 1,000,000:1, and wide color gamut covering beyond the DCI-P3 range, the projector faithfully reproduces latest content including HDR10 and HLG. Renewed Clear Motion Drive together with Motion Enhance significantly reduces motion blur. Go further, and be the first to experience the high-definition, high-quality images exceeding 4K.
  • Display the MaxCLL and MaxFALL mastering data available for HDR content on some UHD Blu-ray discs
  • Compatible with Hybrid Log-Gamma that is expected to be used widely in future broadcasting
  • Installation Mode centrally manage nine settings related to installation to enjoy video best suited for each environment
  • As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation
  • Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality
  • For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
  • Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
  • Light source: NSH 265 W lamp

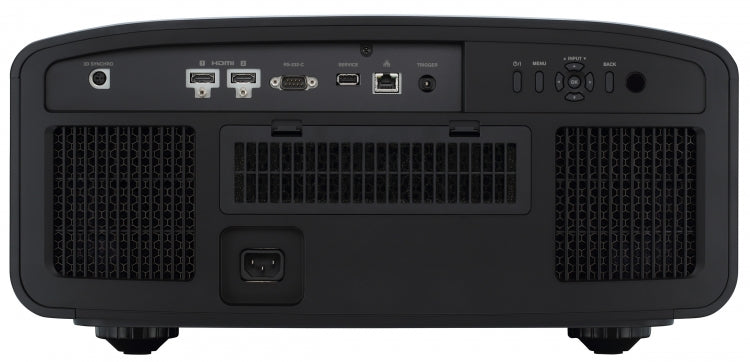

  • Output and control connectors: RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini-DIN 3pin)
  • Nine settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect; stored installation modes for various environments can be called up.
  • Renewed Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever
  • Motion Enhance technology reduces residual images and blurring that are often found in fast-moving images by optimally controlling the drive of D-ILA devices
  • Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes
  • 3D formats: Frame Packing, Side-by-Side (Half), and Top and Bottom
  • JVCs proprietary 8K/e-shift technology reproduces image quality beyond 4K** (The projector does not support 8K signal input)
  • Complies with the latest HDMI/HDCP 2.2 standard to enable full spec 4K signal input with 18Gbps transmission band-width (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit)
  • Resolution: 8192 x 4320 (with 8K/e-shift)
  • Input connectors: HDMI x 2 (3D, Deep Color/HDCP 2.2)
  • High brightness of 2,200 lm provides vibrant and dynamic imagery
  • Native Contrast Ratio of 100,000:1 translates to a spectacular Dynamic Contrast Ratio of 1,000,000:1
  • Wide Color Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life
  • New 0.69-inch 4K D-ILA (4096 x 2160) device x 3
  • 18-element, 16-group all-glass 100mm diameter high-quality lens
  • Multiple Pixel Control image processor accurately reproduces images closer to the original
Technical Specifications
Product Support
Device
0.69-inch Native 4K DILA Device (4096x2160) x3
e-shift Technology
Yes
Resolution
8192 x 4320 (with 8K e-shift)
Lens shift function
+/-100% vertical & +/-43% horizontal, motorized in 16:9 aspect mode
Light source lamp
NSH 265 W
Lamp life
Approx. 4500 hours in Low mode
Brightness
2,200 lm
Contrast Ratio
Native: 100,000:1, Dynamic: 1,000,000:1
Video format
Digital: 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24, 3840 x 2160p 60/50/30/25/24, 4096 x 2160p 60/50/30/25/24
HDMI
VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+
RS232C
1 (D-sub 9-pin)
LAN
1 (RJ-45)
Service
1 (USB Type A) (for firmware update)
General
Power requirement
AC100V-240V, 50/60Hz
Projector in use
400 W
Dimensions: W x H x D, mm
500 x 234 x 518
Dimensions: W x H x D, inches
19-3/4 x 9-1/4 x 20-1/2
Weight, kg
21.8
Weight, lbs
47.96
