JVC-DLA-Z1 | D-ILA Home Theater Projectors

JVC-DLA-Z1 | D-ILA Home Theater Projectors

Regular price Rs. 2,699,900.00
Regular price Rs. 2,699,900.00 Sale price Rs. 2,699,900.00
-0% OFF Sold out

4K D-ILA Laser Projector


JVC's flagship 4K projector DLA-Z1 features original cutting-edge technologies for high-quality, high-definition images to realise the full potential of 4K. It also supports next-gen technologies such as HDR (high dynamic range) content and video at 4K resolution. Beautiful picture quality with a powerful lifelike sense of realism can be enjoyed for all types of video content, from movies to sports, music and documentaries, even 3D. Wrapped in a stylish physical design that features simple lines to emphasise functionality and symmetrical design to focus around the centrally positioned high-resolution lens, the weight and form of the projector befit a flagship 4K model.

    • New lens system incorporating 18-element, 16-group all-glass 100 mm diameter lens and five ED lenses reduces chromatic aberration and colour fringing
    • Support for HDR content with extended brightness range with the projector's high contrast ratio, 80% BT.2020 coverage, dynamic light source control and a peak brightness of 3,000 lm
    • Contrast ratio of infinity:1 achieved with the massive increase in peak brightness
    • New optical engine optimised for 4K with F2.6 that uses light much more efficiently
    • Exceptional brightness of 3,000 lm achieved with the BLU-Escent laser light source and optimised optical engine
    • Support for Hybrid Log-Gamma, which is expected to be used in future broadcasting
    • THX 4K Display Certification to ensure the precise reproduction of picture quality in both 2K and 4K resolution, just as the original filmmaker envisioned.
    • Complies with the latest HDMI/HDCP 2.2 standard to enable full spec 4K signal input up to 4K60P 4:4:4
    • Smooth and detailed reproduction of fast-moving images such as sports and action movies achieved with two video processing technologies – the blur-reducing Clear Motion Drive, which is compatible with signals up to 4K60p (4:4:4), and Motion Enhance, which minimises motion blurring by optimizing the D-ILA driver
    • Multiple Pixel Control technology offers more realistic presentation of images with greater sense of clarity and softness of focus to backgrounds
    • Upscaling of Full HD video to 4K
    • BLU-Escent laser light source uses blue laser diodes to offer high brightness level and long life
    • Brightness of 3,000 lm
    • Dynamic contrast: Infinity:1
    • 18-element, 16-group all-glass 100 mm diameter lens system with full aluminium lens barrel
    • Original 0.69" native 4K D-ILA device (4096 x 2160)
    • BLU-Escent laser diode light source
    • 4K signal input (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit)
    • High-definition display at 4K resolution (4096 x 2160)
    • Vertical orientation and planarization technologies of the device reduce light scattering and diffraction to enhance contrast.
    • ISF C3 (Certified Calibration Controls) mode* to reproduce excellent picture quality optimized for specific environments.
    • Resolution: 4096 x 2160

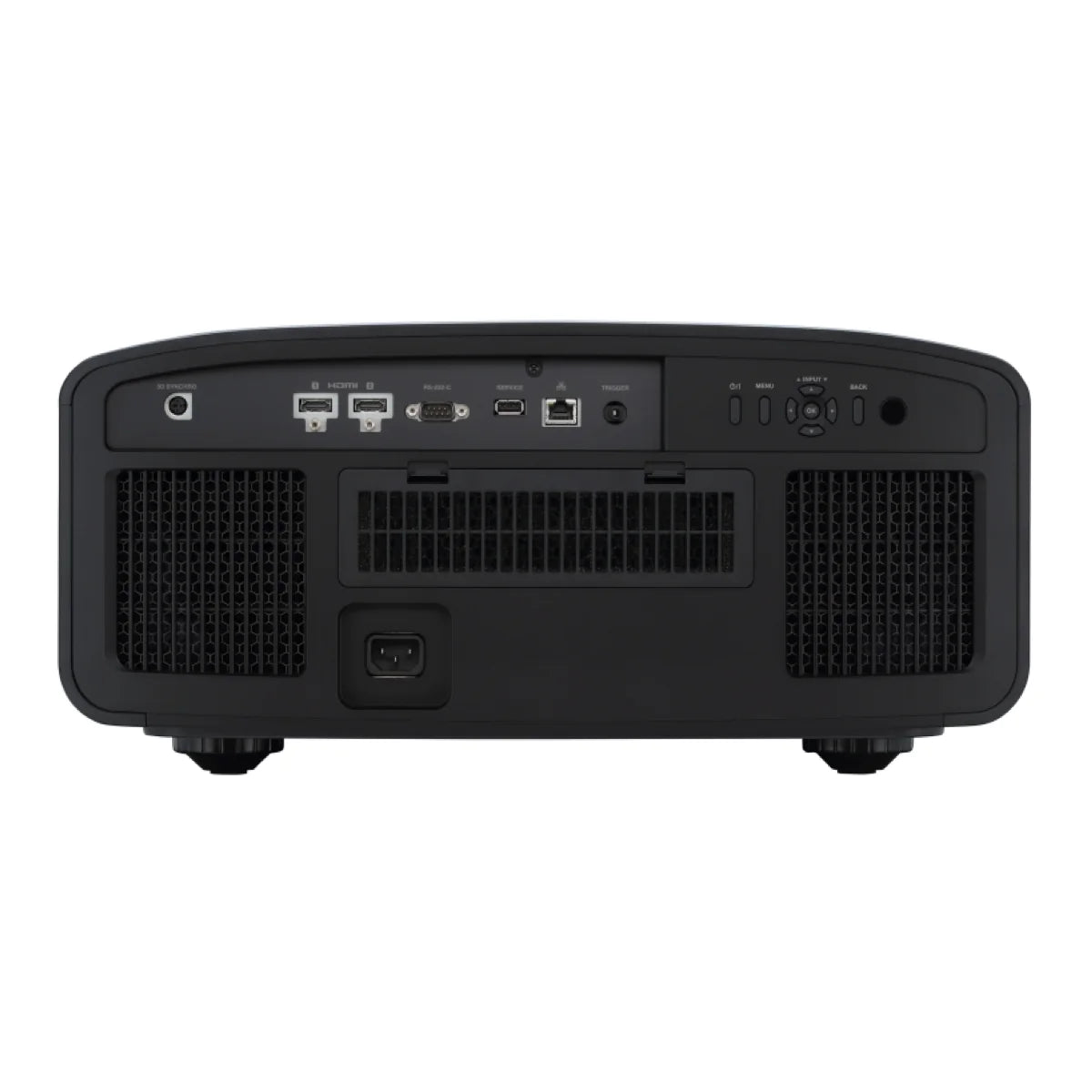

    • Connectors: HDMI x 2, RS-232C LAN, Trigger), 3D Sync, Service USB
    Technical Specifications
    Product Support
    Image Devices
    Projection Technology
    Projection Chip size
    0.69 inch
    Number of Projection Chips
    Native Resolution
    4096 by 2160 Pixels
    Max Resolution
    4096 by 2160 Pixels
    Polarize Light Output
    YES S/S/S
    Light source technology
    Laser / Posphor
    Type of the Light source
    Blu-Escent laser hybrid
    Number of Light sources
    1 unit
    Expecting Lifetime regular mode
    20000 Hours
    Phosphor Plate Static
    Light and Contrast
    Brightness Typical
    3000 ANSI Lumen
    -15 to 0 Adjustment
    Dynamic Light Power Control
    Manual Light Power Control
    Low / Mid / High
    Color Bit depth
    12-bit Input, 12-bit Display and Signal Processing
    Color Space
    REC709 / 100% DCI-P3 80% BT.2020
    Model Name
    JVC Regular Lens
    Zoom Lens
    Fix Lens
    Lens include
    Zoom Electrical or Mechanical
    Electrical Zoom
    Focus Electrical or Mechanical
    Electrical Focus
    Lens Ratio Factor
    1.4:1 to 2.8:1
    For Lens Type A:
    JVC Regular Lens below data for 16:9 Format
    A) Throw ratio:
    1.4:1 to 2.8:1
    A) Lens Shift Vertical
    A) Lens Shift Horizontal
    A) Projection distance Wide to End
    1.75 m to 8.48m
    A) Projection distance Tele to End
    3.61m to 17.14m
    A) Screen Size in inch diagonal
    60 inch to 280 inch
    Lens Memory Function
    Lens Aperture
    16 Steps
    Focus/Zoom Adjustment on internal Test Patterns
    Focus/Zoom Adjustment on User Signal
    Picture Mode Presets
    Normal / Cinema / HDR / Movie / THX / 6 User modes
    Color Temperature
    Xenon 1 / Xenon 2 / 5500K / 6500K / 7500K / 9300K / 2 User modes / HDR / High Bright
    Gamma adjust
    Film 1 / Film 2 / 2.2/ 2.4 / 2.6 / Cinema 1 / Cinema 2 / HDR ST2084 / HDR Hybrid Log / THX / 3 User modes
    Gamma Processing Depth
    12 Bit
    Manual Gamma Settings
    MPC Level
    Graphics mode / Enhance / Smoothing / NR
    HDR Compatible
    HDR Gamma
    ST2084 / Hybrid Log
    HDR Picture Mode
    HDR / BT2020 / BT 709 / DCI
    Color Management
    6-Axis adjustable CMS
    Clear Motion Drive
    Off / Low / High / Inverse Telecine
    Motion Enhance
    Off / Low / High
    Picture tone
    Color selection / all over brightness / dark and bright level
    Clear Black
    Off / Mode 1 / Mode 2
    Pixel Adjustment Whole Screen
    Pixel Adjustment Zone Screen
    Anamorphic Mode
    A = 2.35:1 B = 16:9 / OFF
    Digital Keystone
    +/- 16 and Pincushion (adjustment can only be made in Keystone or Pincushion mode not both)
    Gaming Mode ( Low Latency)
    YES Blur Reduction Modes ON/OFF
    Screen Mask
    Off / 0 to 220 Pixels for four sides of the image
    THX Certification
    ISF Certification
    General Hide Mode
    Internal Test Patterns
    Standby Timer
    Off / 1 Hour / 2 Hours / 3 Hours and 4 Hours
    ECO Mode
    Projector System Status Screen
    Local Projector Control Buttons
    Menu Position select
    Black/Blue Screen select (in case of no Input source)
    Input Signal
    Input Signal Capability Special Notes:
    HDMI2 supports two EDID Modes A/B A under normal conditions, Older Hardware may need to use B settings
    3D Capability
    Yes, active Stereo HD only
    HDMI Input Signal
    Video: 480p / 576p / 720p50/60 / 1080i50/60 /1080p24/25/30/50/60
    2K(2048x1080)p24/25/30/50/60 4K(3840x2160)p24/25/30/50/60 4K(4096x2160)p24/25/30/50/60
    PC Sources: 640x480 up to 1920x1200
    Input Level Adjustment
    Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
    3D Format
    3D Capability
    Frame Packing
    720p 60/50, 1080p 24
    720p 60/50, 1080p 60/50/24, 1080i 60/50
    Top & Bottom
    720p 60/50, 1080p/24
    Input Terminals
    Yes, 2 x 3D/Deep Color/HDCP 2.2/18 Gbps
    Type A for service only
    Output Terminals
    Trigger Terminal
    Yes, 3.5mm mini jack DC12V 0,1A Output
    3D Synchro
    Yes, for optional Synchro Emitter 3PIN mini DIN
    RS-232C Terminal
    Yes, 9 PIN sub D
    LAN Terminal
    Yes, RJ45
    Control Terminals
    RS-232C Terminal
    Yes, for control
    LAN Terminal
    Yes, Control and Services
    IR Remote Receivers
    2 Front/Back
    Selection of IR codes
    Power and Environment Spec´s
    Noise Level (0-26 degree)
    25 dB in LD Low-Power mode
    Power Requirement
    AC 100-240V, 50/60Hz
    Power Consumption
    750 Watts
    Power Standby
    0.4 Watt
    Power Networked Standby
    1.5 W (LAN), 1.1 W (RS232C),1.4 W (LAN and RS232C)
    Switchover Time
    20 min. (To standby or networked standby; default)
    Operation Temperature in Celsius
    5C to 35C
    Operation Humidity:(Non-Condensing)
    20% to 80%
    Storage Temperature in Celsius
    -10C to 60C
    Installation Height
    below 2000 Meters
    W 500 x H 235 x D 720 mm
    37.5 kg
    High Altitude Mode
    YES /ON/OFF should be set to ON from above 900 Meters
    Motion Platform usable
    Include Package
    Cord B
    EU AC
    Cord C
    GB AC
    IR Controller
    Battery Type:
    2 x AAA Type
    Lens Cover for shipment only Safety Info Doc include for Full Instruction, please download form this web site
    General Editing Note
    General Note:
    Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
