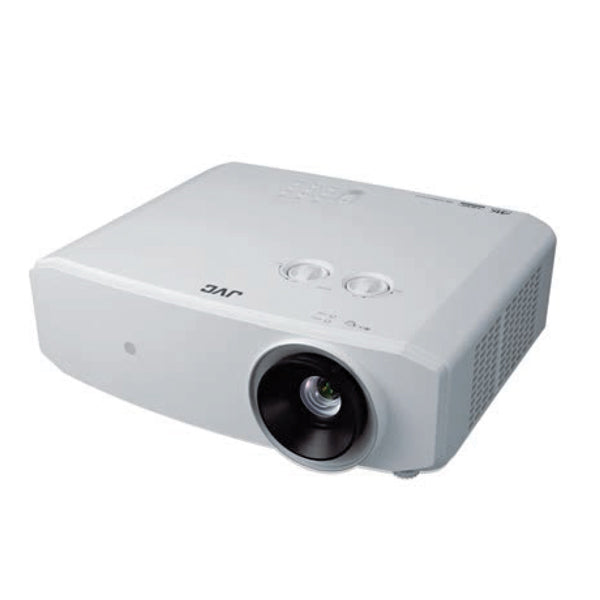

The LX-NZ3 is a high-performance 4K UHD/HDR home theatre projector with laser light source technology BLU-Escent. Thanks to the BLU-Escent light source, it realises brightness of 3,000 lumens so there is no need to pull the curtains every time. Plus, there is no need to care about the lamp life as it offers 20,000 hours of long life. Furthermore JVC’s original Auto Tone Mapping function automatically adjusts to deliver the optimum HDR image all the time. This projector will enhance your viewing experience to a new level. LASER 4K UHD PROJECTOR with JVC original HDR Auto Tone Mapping. The NEW LASER 4K UHD PROJECTOR with JVC original HDR Auto Tone Mapping is Easy, Exciting and High Quality All the Time.
Main Features:
- 4K resolution (3840 x 2160) and HDR (HDR10/HLG) compatible.
- Compact design for installation convenience: 41 cm by 34 cm, and less than 15 cm high (Approx. 16″ by 13-1/2″, and 5-3/4″ in height)
- 4K input specs: Supports 4K/60p, 4:4:4/36bit, 4K/60p 4:2:2/36bit, and 4K/24p 4:4:4/36bit signals – for more vivid colours and subtle gradations
- Connectors: PC in, HDMI 1 with HDCP2.2 support, HDMI 2, USB Mini B, Trigger (12 V), USB Mini A (1.5 A power supply), and RS-232
- “BLU-Escent” Laser Light Source
- 3,000 lm brightness and 20,000-hour long life
- HDR (high dynamic range) for more realistic, dynamic images
- “Auto Tone Mapping” for pristine HDR10 picture quality
- 0.47-inch DMD for bright high-definition 4k images
- Dynamic contrast ratio: Infinity:1
- With JVC’s original “Auto Tone Mapping” function, you can enjoy various HDR10 content with the best image quality without any difficult adjustments.
- Compatible with HDMI standards (4K/60P 4:4:4) and HDCP 2.2
- Wide lens shift function: +/-60% vertical, +/-23% horizontal
- 1.6x high-resolution lens
- HDCP2.2 compatibility with HDMI 1 terminal to support video-streaming services and copyright-protected content including UHD BD discs
HDR compatibility with Auto Tone Mapping function
Compatible with HDR 10 for contents like UHD Blu-ray and HLG (Hybrid Log Gamma) adopted in broadcasting. Also equipped with a new function “Auto Tone Mapping” that automatically adjust setting based on mastering information included in HDR content.
Different HDR images can be viewed optimally for each content.
SPECIFICATIONS
Device
0.47″ DMD (1920 x 1080)
Resolution
3840 x 2160
Lens shift function
+/-60% vertical & +/-23% horizontal, motorized
Light source lamp
BLU-Escent (Laser Phosphor)
Lens
Zoom
1.6x manual zoom/focus lens
f
14.3 – 22.9 mm
F
1.809
Projection size
60″ to 200″
Lamp life
Approx. 20,000 hours in normal mode
Brightness
3,000 lm
Contrast Ratio
Infinity:1 (Dynamic contrast ratio)
Video input terminals (back panel)
HDMI
2 (HDCP2.2 x 1, HDCP1.4 x1)
PC
1 (D-sub 15pin)
Output terminals (back panel)
USB
1 (Type A; Power supply 5 V/1.5 A)
Trigger
1 (mini jack, DC12V/0.1 A)
Control terminals
RS232C
1 (D-sub 9-pin)
USB
1 (Type B mini for service)
General
Noise level
29 dB (Eco) / 34 dB (Normal)
Power requirement
AC110 V-240 V, 50/60 Hz
Power consumption
360 W
Standby
0.4 W
Networked standby
0.4 W (RS-232C)
Switchover time
11 min. (To standby or networked standby; default)
Dimensions: W x H x D, mm
405 x 145.8 x 341
Weight, kg
6.3
