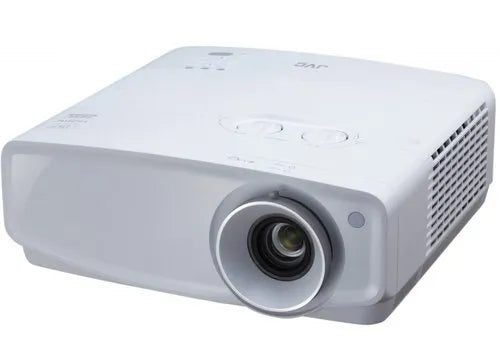

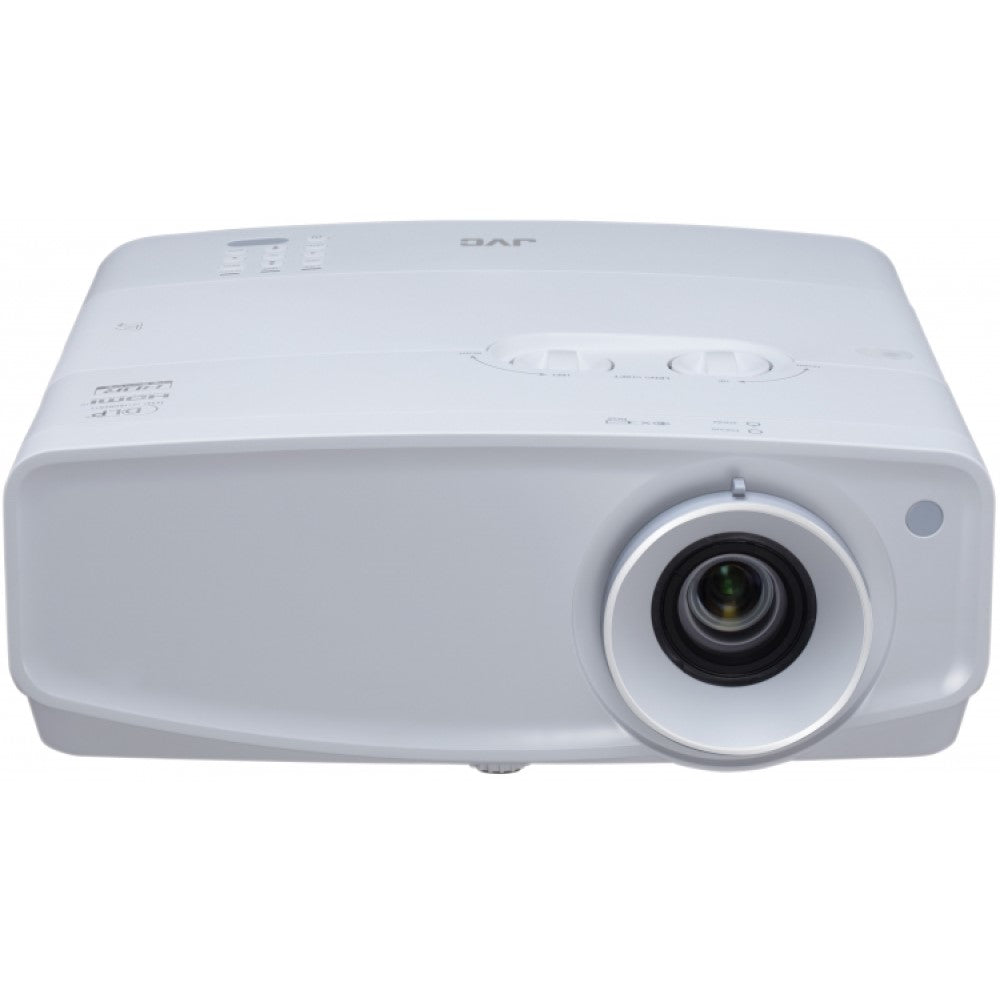

JVC-LX-UH1B | DLP Home Theater Projectors

JVC-LX-UH1B | DLP Home Theater Projectors

Regular price Rs. 275,000.00
Regular price Rs. 275,000.00 Sale price Rs. 275,000.00
-0% OFF Sold out

DLP Projector


The LX-UH1 is a high-performance 4K UHD/HDR home theatre projector with compact design and wide lens shift for easy installation; also thanks to its 2,000-lumen output there is no need to always pull the curtain. This projector is ideal for all your broadcast, streaming and BD viewing.

  • HDCP2.2 compatibility with HDMI 1 terminal to support video-streaming services and copyright-protected content including UHD BD discs
  • HDR (high dynamic range) for more realistic, dynamic images
  • 1.6x high-resolution lens
  • Available in 2 colours (black and white)
  • Connectors: PC in, HDMI 1 with HDCP2.2 support, HDMI 2, USB Mini B, Trigger (12 V), USB Mini A (1.5 A power supply), and RS-232
  • Compatible with HDMI standards (4K/60P 4:4:4) and HDCP 2.2
  • Wide lens shift function: +/-60% vertical, +/-23% horizontal
  • 4K resolution (3840 x 2160) achieved
  • 4K input specs: Supports 4K/60p, 4:4:4/36bit, 4K/60p 4:2:2/36bit, and 4K/24p 4:4:4/36bit signals - for more vivid colours and subtle gradations
  • Compact design for installation convenience: just 33 cm by 33 cm, and less than 13.5 cm high
  • 0.47-inch DMD for bright high-definition 4k images
  • 100% coverage of Rec. 709 gamut
  • Brightness: 2,000 lm
  • Dynamic contrast ratio: 100,000:1
Technical Specifications
Product Support
0.47" DMD (1920 x 1080)
3840 x 2160
Lens shift function
+/-60% vertical & +/-23% horizontal, motorized
Light source lamp
NSH 240 W
1.6x manual zoom/focus lens
14.3 - 22.9 mm
Projection size
60" to 200"
Lamp life
Approx. 4,000 hours in normal mode, 10,000 hours in eco mode
2,000 lm
Contrast Ratio
Dynamic: 100,000:1
2 (HDCP2.2 x 1, HDCP1.4 x1)
1 (D-sub 15pin)
1 (Type A; Power supply 5 V/1.5 A)
1 (mini jack, DC12V/0.1 A)
1 (D-sub 9-pin)
1 (Type B mini for service)
Noise level
29 dB (Eco)/ 33 dB (Normal)
Power requirement
AC110 V-240 V, 50/60 Hz
Projector in use
370 W
Dimensions: W x H x D, mm
333 x 135 x 331.5 mm
Dimensions: W x H x D, inches
13-1/8 x 5-5/16 x 13-1/16
Weight, kg
Weight, lbs
0.5 W
