Magnat

Magnat Monitor S80 ATM Floor Standing Speaker

Magnat Monitor S80 ATM Floor Standing Speaker

Regular price Rs. 87,900.00
Regular price Rs. 87,900.00 Sale price Rs. 87,900.00
-0% OFF Sold out

Magnat Monitor S80 ATM - 2.5-Way Floor Standing Speaker With Dolby Atmos Height Speaker

 Monitor S80 ATM

FLOORSTANDING SPEAKER WITH DOUBLE BASS AND INTEGRATED DOLBY ATMOS HEIGHT CHANNEL SPEAKER

  • Floorstanding speakers with Dolby Atmos module for the best surround sound
  • Separate connection terminals for the Atmos module
  • Use as a hi-fi speaker or as a front speaker in the home cinema

 Floorstanding speaker with double bass and integrated Dolby Atmos height channel speaker

The Monitor S 80 ATM is one of the technological highlights of the series. This is of course due to the Dolby Atmos module integrated into the top. This coaxial loudspeaker, specially developed according to Dolby's guidelines, consists of a 100 mm bass-midrange speaker and a 20 mm dome tweeter. By radiating upwards, the Atmos signals reach the listeners via the reflection on the ceiling. This eliminates the need for additional speakers.

The Atmos modules have their own connection terminals and are wired to the corresponding outputs of an amplifier or receiver. If you don't have one yet, you can first use the S 80 ATM as a classic front speaker and then simply upgrade to Atmos later with new electronics.

The "traditional" hi-fi part of the S 80 features two 170 mm woofers, a 110 mm midrange driver and a 28 mm dome tweeter. This is enough for a frequency spectrum from 26 to 38,000 Hz. With the Atmos module, by the way, it's also an impressive 26 to 28,000 Hz.

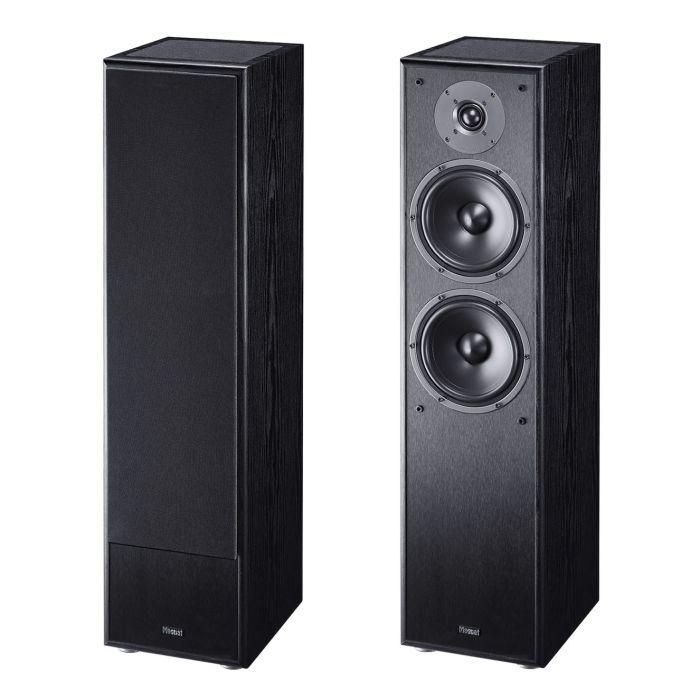

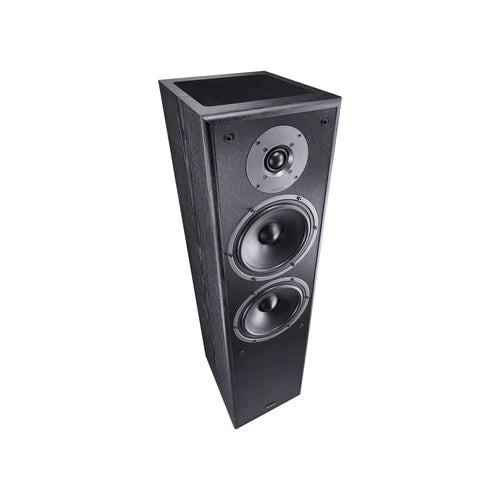

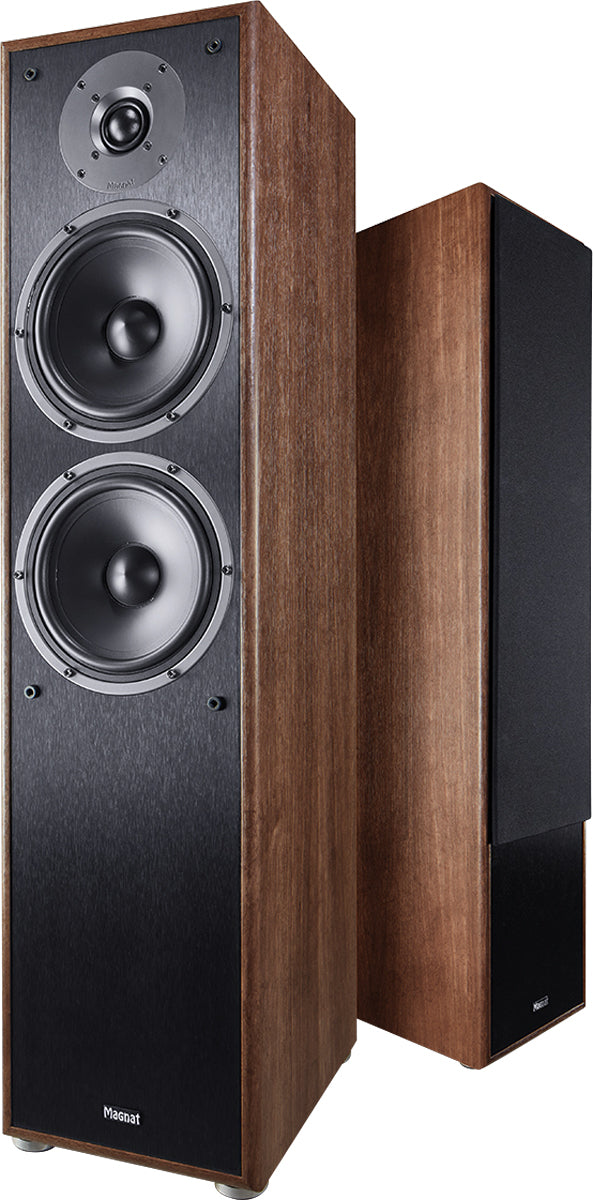

At 86 cm high, the S 80 has perfect dimensions, both acoustically and visually. With its cabinet in black or walnut, there is a suitable version for every living environment. The baffle has a black finish and the removable front cover made of acoustic fabric rounds off the appearance.

Specifications

PRINCIPLE
2 ½-way bass reflex floorstanding speaker and integrated 2-way Dolby Atmos module 2-way coaxial
DRIVERS
1 x 4.5" coaxial speaker 1.1" dome-tweeter 2 x 6.5“ woofer-midrange
POWER HANDLING (RMS/MAX.)
Main speaker: 160/300 watts Dolby Atmos speaker: 40/80 watts
SENSITIVITY (2.8V/1M)
Main speaker: 90 dB Dolby Atmos speaker: 87 dB
IMPEDANCE
Main speaker: 4 ohms Dolby Atmos speaker: 4 ohms
CROSSOVER FREQUENCIES
Main speaker: 500 Hz, 3.000 Hz Dolby Atmos speaker: 7.000
RECOMMENDED AMPLIFIER OUTPUT
Main speaker: 30 – 300 watts Dolby Atmos speaker: 15 – 80 watts
DIMENSIONS (WXHXD)
215 x 860 x 270 mm
WEIGHT
13.4 kg
