Marantz

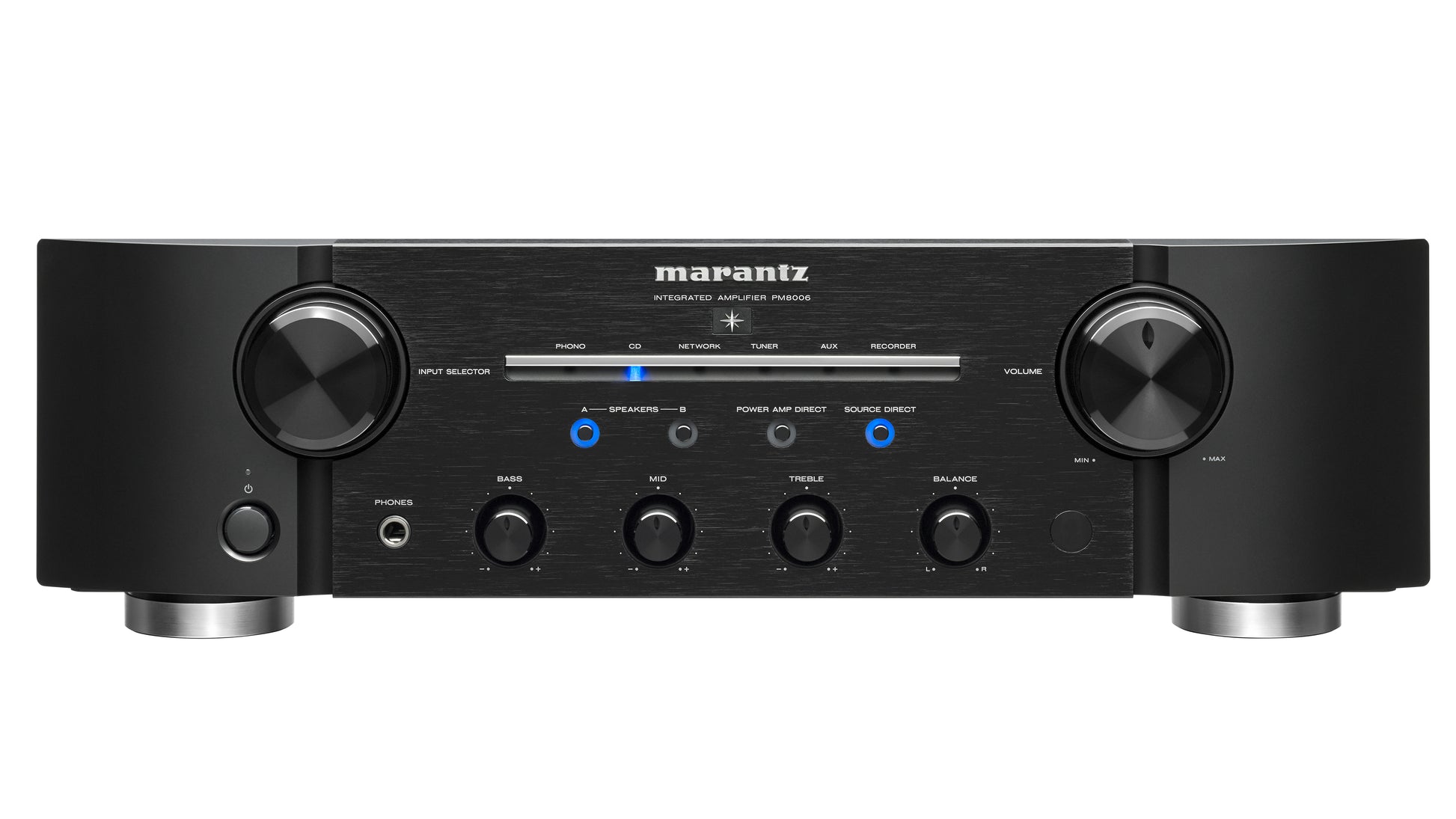

Marantz PM8006 - Integrated Amplifier

Marantz PM8006 - Integrated Amplifier

Regular price Rs. 129,600.00
Regular price Rs. 221,900.00 Sale price Rs. 129,600.00
-41% OFF Sold out

Product Description

  • The PM8006 integrated amplifier is perfect for those who require both excellent music and flexible operation.
  • Powerful 2x 70W into 8 ohm build.
  • Equipped with multiple high speed and high power output devices
Product features



Here we are presenting you the most flexibly operated device that has both excellent music quality and clearer delivery of sound. It is a fully discrete current feedback based model designed for all the music lovers out there. The PM8006 has a power rating of 2 × 70 watt per channel and you get an optimal imaging because of symmetrical circuits.

      The PM8006 allows use of the unit as a standalone power Amplifier that helps to integrate it into a multichannel home theater system including a preamp output with a power Amplifier for  direct input. The device has given you the access for tailoring the sound as per the need with the help of triple tone control systems. It is so amazing to have such a newly Advanced technology in one. It is a great product to be bought without any second thought.



Current Feedback Application

Current Feedback Application



In order to match the requirement of high resolution music for bandwidths that is wide and high speed sound reproduction the well known Marantz original circuit technology with current feedback mechanism is employed.  It minimizes the negative feedback which directly help to reduce the need for phase compensation. It also help us to make the power Amplifier insensitive to the loads of difficult loudspeaker.



HDAM Technology In Your Vicinity

HDAM Technology In Your Vicinity



The Marantz have a Hyper Dynamic Amplifier Modules or HDAMs, developed by own , that is helping to replace the chip based amps used elsewhere.  HDAM are capable of outperforming the usual integrated OP-AMPS in slew rate and noise level dramatically by using the discrete surface mount components having a short mirror image left and right signal paths. All these helps to create more dynamic accurate and detailed sound.



Marantz Musical Phono EQ

Marantz Musical Phono EQ



The Marantz are always known for their phono system built-in and thus these time reaching the point and committing to vinyl  for the Marantz Musical phono EQ stage as seen in the PM8006 Amplifier. It allows you to enjoy the music played with total feel and fun. The PM8006 combined with the Marantz HDAM technology  in the input stage with the JFETs give a high input impedance and thus it eliminates the need for AC coupling capacitors giving a smooth signal purity overall



Re-Equalized and Amplify

Re-Equalized and Amplify



The device has changed the old re-equalization process with the help of phono stage. The RIAA correction present in tis carried along with the HDAM and the amplification stays in the hands of the peak quality OP-Amp running in class mode for giving minimum distortion and clean open sound. So you would not  need any more reason to trust on the circuit.



High Quality Speaker Terminals

High Quality Speaker Terminals



The Marantz PM8006 are made for providing the best possible contact with speaker cables and the end terminals are made up of massive brass having a thick silver plating.  The mounting has been done for reducing the signal path and it should be able to generate better speed and Dynamics via current topology at high instance.  The mounting has been done on the Main speakers lower terminal



Control At Your Fingertips

Control At Your Fingertips



The device uses the latest volume control Integrated circuit to emphasize a better channel separation with a wide dynamic range and distortion and reduction.  You can easily retain the Operational feel without any hesitation of an analog volume control device. It has a new Marantz designed electric volume control for high linearity and separation that is best in class
Channels    2
Current Feedback Topology Yes
Full balanced circuitry architecture No
Double Mono Power Amp construction No
Phono EQ: Standard / Class A / Constant Current Feedback No / Yes / No
Digital in: USB-B / optical / coaxial / USB-A No / No / No / No
Sample Rate digital In No
USB-A: DSD / WAV / FLAC / AIFF / ALAC No
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 No
USB-B PCM sample rate No
DAC chip No
Asynchronous mode rear USB No
Bit-perfect transmission No
Ground isolator for DAC Mode operation No
Bluetooth / aptX / NFC No
Streaming audio from PC No
Wi-Fi / Wired LAN No
Internet radio No
AirPlay Audio Streaming No
Windows Play to No
vTuner / Spotify* No
DLNA Certified No
DSD-Audio network streaming No
Lossy formats: MP3 / WMA / AAC No
Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF No
Gapless Playback No
Remote APP: iDevice / Android No
Analog Mode No
HDAM version SA3, SA2
Power Transformer: Toroidal / El Yes / No
High Grade Audio Components Yes
Customised Components Yes
Symmetric PCB Layout Yes
Aluminium extrusion heat sink Yes
Copper Plated Chassis No
Tri Tone Control (Bass / Mid / Treble) Yes
Balance / Bass / Treble / Loudness Yes / Yes / Yes / No

Others

Marantz Musical Digital Filtering No
Linear Drive Power Supply Yes
Liniear volume control Yes
BI-AMP and Multichannel option No
Shottky diodes Yes
Input buffer amp (all inputs / CD only) No / Yes
System block shielding: Copper / metal / none No / No / Yes
Double Layer Bottom Plate triple
Low Noise OELD display No
Low noise LCD display No
Source Direct Yes
Power Amp direct Yes
5mm aluminium top plate No

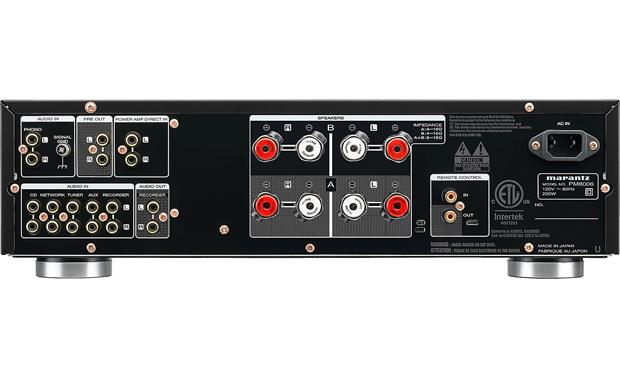

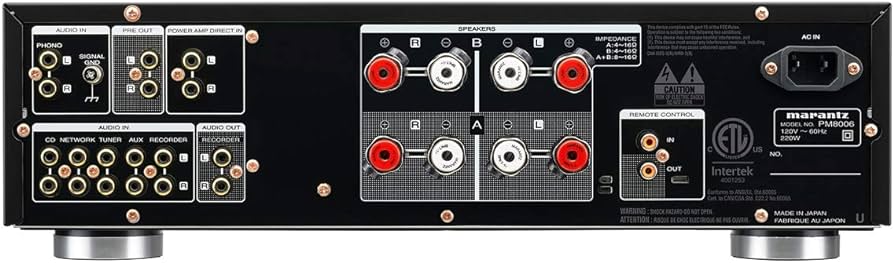

Inputs/Outputs

Audio Inputs 6
Digital in: USB-B / optical / coaxial / USB-A No / No / No / No
Phono Input: MM / MC Yes / No
Audio Outputs 1
Balanced In / Out No / No
Pre-out / Main-in 1 / No
Power Amp Direct IN Yes
Gold Plated Cinch Yes
Speaker A / B Yes
Speaker Terminal Marantz SPKT-1+
Number of terminals 4
D-Bus Yes
Floating Control Bus (3.5 mm mono jack x 2) No
Headphone Out Yes
Headphone Gain Control (low / mid / high) No

Specifications

Power Output (8 / 4 Ohm RMS) 70 W / 100 W
Frequency response 5 Hz-100 kHz
Total Harmonic Distortion 0.02%
Damping Factor 100
Input Sensitivity: MM 2 mV / 47 kOhm
Input Sensitivity: MC No
Signal to Noise Ratio: MM/MC 87 dB / No
Input Sensitivity: High level 200 mV / 20 kOhm
Input Sensitivity: Balanced High level No
Signal to Noise Ratio: High level 106dB(2V input)
Input Sensitivity: Power Amp Direct IN 1.6V / 15 kOhm
Signal to Noise Ratio: Power Amp Direct IN 125 dB

General

Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / Yes
Metal Front Panel Yes
Power Consumption in W 220
Standby Consumption in W 0.2
Auto Power off Yes
Detachable Power Cable Yes
Remote Control RC001PMND
System Remote Function Yes
Maximum Dimensions (W x D x H) in mm 440 x 379 x 128
Weight in kg 12
