Product Description

• Built-in Class D amplifier delivers 200 watts of continuous power.
• Ultra-rigid, lightweight c-cam (ceramic-coated aluminum/magnesium) cone material provides high efficiency and low distortion.
• 10" (250 mm) flat-panel Auxiliary Bass Radiator (ABR) positioned underneath the unit.
• Features an acoustic suspension (sealed) cabinet design.
• Comes with auto on/off, plus 12-volt dc trigger input.
• Adjustable feet with carpet spikes and soft polymer floor pads.

Product features

Any performance is given a striking sense of realism by the 10" auxiliary bass radiator and the long-throw 10" C-CAM subwoofer driver of the Bronze W10 monitor audio. Our exquisitely crafted bronze series powered subwoofer subtly enhances every soundscape, making it an essential component of your speaker setup if you enjoy deep, sophisticated bass notes.

By lowering the moving masses and adjusting the compliances in the monitor audio powered subwoofer system to boost the transient response, our engineers have acoustically improved the driver and bass radiator. Kick drums and explosions now have a lot more punch and precision.

Magnetized MDF Enclosure with Grille

The MDF enclosure used by the Bronze w10 produces precise, colorless sound. For maximum rigidity and minimal cabinet coloring, the enclosure is constructed entirely of rigid 18mm MDF using radial and cross-bracing techniques. The bookshelf speaker also includes a magnetically attached acoustically transparent material grille.

C-CAM Methodology

The Bronze series w10 bookshelf loudspeaker system uses C-CAM driver technology, which offers coherent tonal balance and sonic signature throughout the input audio frequency band. When in use, standard drivers run the risk of flexing or twisting, producing a significant amount of noisy distortion. C-CAM drivers show significantly more fidelity across their whole operating range because they have a substantially stronger resistance to bending stress.

Technology at Hive Port

With its bass reflex cabinet and front-firing port, the Bronzew10 loudspeaker from Monitor Audio offers increased efficiency and a larger bass response from a small bookshelf speaker. This is made possible by the HiVe port technology. The HiVe bass reflex port is designed to provide an airflow effect akin to that of a bullet's barrel. For a more rapid and dramatic bass response, the port's fluted grooves help to accelerate flow and reduce turbulence, allowing air to enter and exit the port more efficiently.

Silver Dome Tweeter

The Bronze-w10's monitor audio frequency response is extended to an ultrasonic 30 kHz by the newly designed 1" C-CAM silver Dome speaker unit, which allows for the complete reproduction of harmonic frequencies that are crucial for accurately recreating the break in a piano string or the crash of a hi-hat. Improvements to the drive mechanism and dome shape have also improved accuracy and extension at the highest point of the tweeter's range, producing the remarkable high-frequency quality that contributes to the loudspeaker's overall sound definition.

Double Binding Posts plated in silver

Two pairs of binding posts with silver plating on the bronze-W10 speaker are joined by wire jumpers. It will be possible to bi-wire or bi-amp the speaker using the twin posts. The bass and treble performance of the speaker can be enhanced by bi-wiring or bi-amping. The jumpers between the terminal posts must be removed if you choose to bi-wire or bi-amp; otherwise, your amplifier and loudspeakers may sustain damage.

Monitor Audio Bronze W10 Powered Subwoofer Specification
Overview

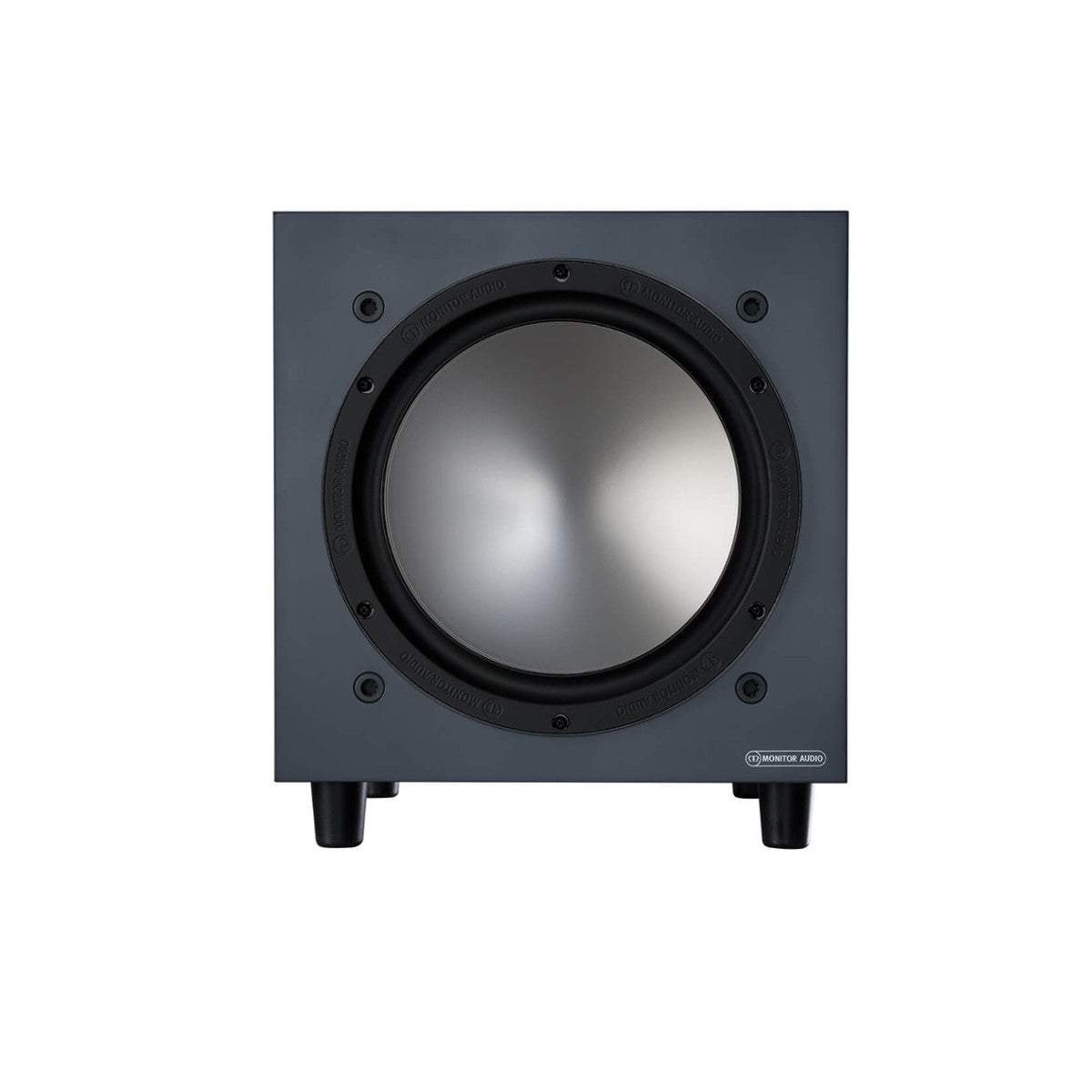

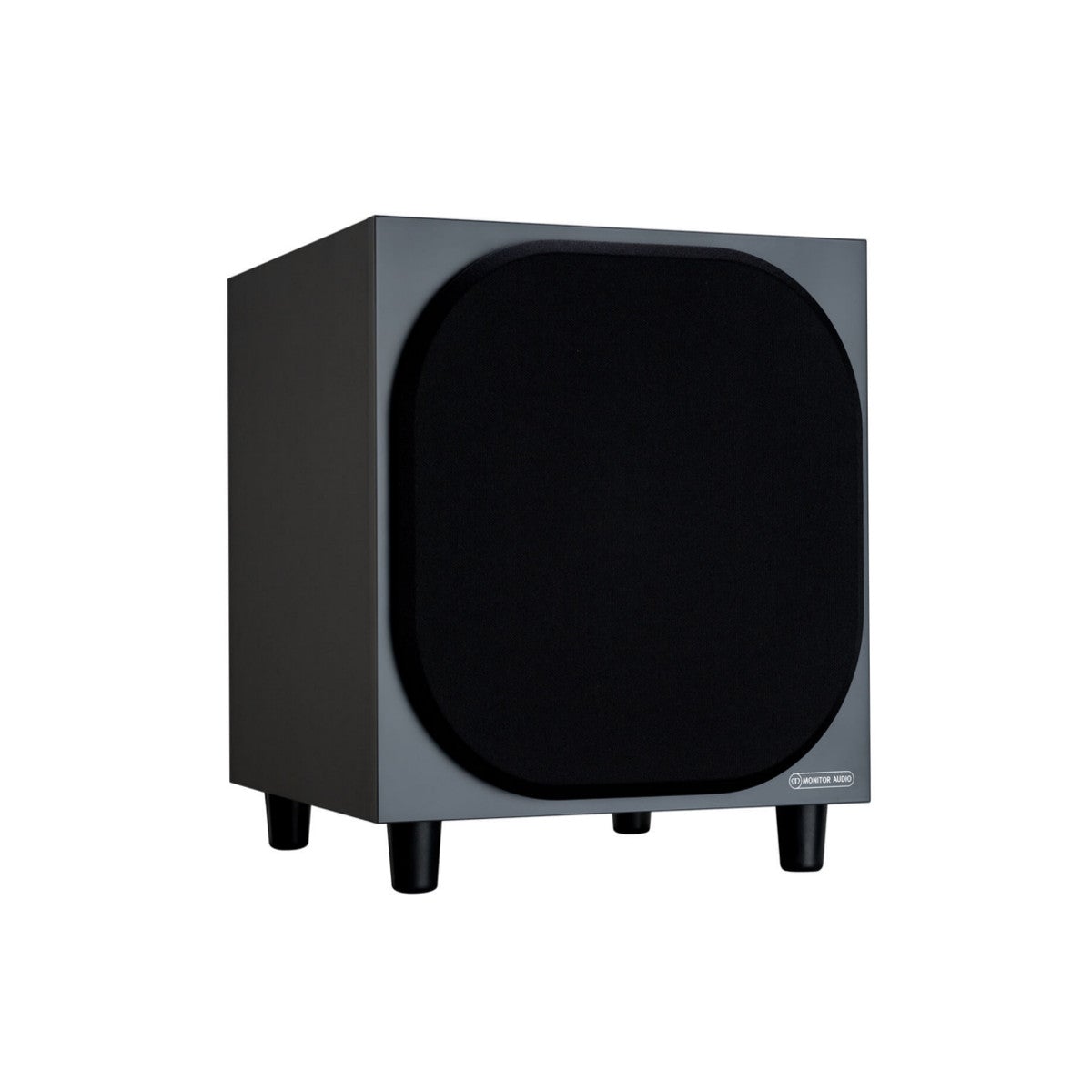

The Monitor Audio Bronze W10 is a dynamic and powerful powered subwoofer, designed to add profound bass and dramatic depth to your home audio or cinema system. As part of Monitor Audio's Bronze series, the W10 subwoofer is engineered to deliver the performance and quality the series is known for, providing an immersive listening experience that brings movies and music to life. With its sleek design and superior build quality, the Bronze W10 is the perfect complement to any home entertainment setup.

Key Features
Powerful Class-D Amplifier: Equipped with a high-efficiency 220W Class-D amplifier, delivering deep, impactful, and controlled bass.
Long-Throw 10-inch Driver: Features a 10-inch (250 mm) long-throw C-CAM (Ceramic-Coated Aluminium/Magnesium) driver, ensuring tight and responsive bass reproduction.
Auxiliary Bass Radiator (ABR): Includes an additional 10-inch (250 mm) ABR to extend the subwoofer's low-frequency response and improve efficiency.
DSP Processing: Advanced DSP (Digital Signal Processing) optimizes performance in real-time, ensuring precision and clarity in bass frequencies.
Three Preset Equalization Modes: Offers settings for Music, Movie, and Impact to tailor the listening experience to different audio content.
Phase Switch and Variable Crossover: Provides phase adjustment and a variable crossover control for seamless integration with satellite speakers.
Automatic Signal Sensing: Features automatic signal detection, powering the unit on and off based on the presence of an audio signal, for added convenience.
Specifications
Frequency Response: 30 Hz – 150 Hz
Lower Frequency Limit: 27 Hz (EQ1 - Music)
Amplifier Output: 220 Watts (Class-D)
Driver Units: 1 x 10" C-CAM long-throw subwoofer driver, 1 x 10" Auxiliary Bass Radiator (ABR)
Input Impedance: 20k Ohms
Maximum SPL: 113 dBA
Inputs: Stereo RCA, LFE (RCA), Speaker Level Inputs

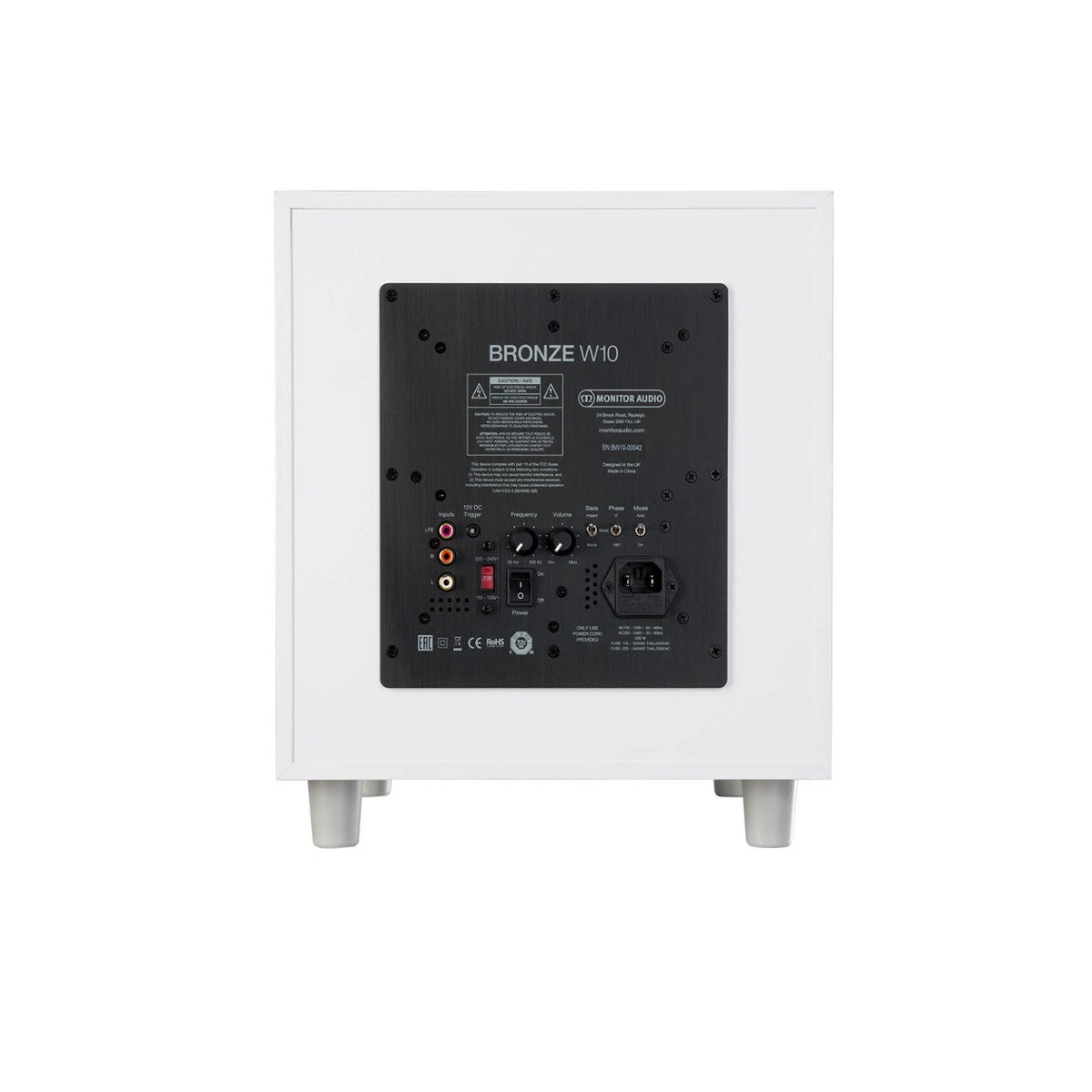

Controls: Volume, Phase Switch (0°, 180°), Crossover Frequency Adjustment, Three Preset EQ Modes
Power Consumption: 200W / 0.5W (Standby)
External Dimensions (H x W x D): 321 x 321 x 364 mm (12.64 x 12.64 x 14.33 inches)
Weight: 13.8 kg (30.42 lbs)
Design and Construction
Enclosure Type: Sealed enclosure with front-firing driver and Auxiliary Bass Radiator (ABR)
Cabinet Construction: Crafted from high-quality MDF for rigidity and reduced resonance, enhancing audio clarity.
Finish Options: Available in multiple finishes to match the Bronze series speakers, including Black, Walnut, and Urban Grey.
Feet: Rubber feet provide stability and minimize vibration transmission.
In the Box
1 x Monitor Audio Bronze W10 Powered Subwoofer
1 x Power Cord
1 x User Manual
1 x Warranty Information
Warranty
Manufacturer's Warranty: 5 years for the driver and 2 years for the electronics, guaranteeing performance against defects in materials and workmanship under normal use.
The Monitor Audio Bronze W10 powered subwoofer combines advanced technology, robust design, and versatile features to enhance any audio system with deep, precise bass. Whether for music enjoyment or enriching the home cinema experience, the Bronze W10 delivers performance that can transform your audio landscape. For further details, please refer to the Monitor Audio website or consult with an authorized dealer.
