Harman Revel

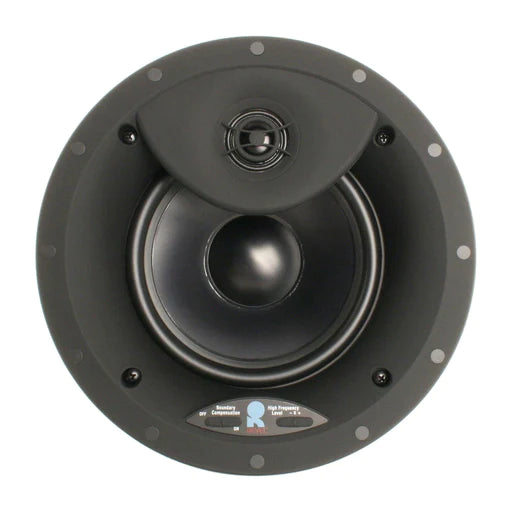

Revel C583 In Ceiling Speaker

Revel C583 In Ceiling Speaker

Regular price Rs. 31,992.00
Regular price Rs. 39,990.00 Sale price Rs. 31,992.00
-20% OFF Sold out

Product Description

  • 8" In-Ceiling Loudspeaker.
  • Features 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide.
  • Long-throw woofers with cast frames and rubber surrounds.
  • High-order crossover network with premium-quality components.
  • Boundary compensation switch (C783/C763) lets you adjust the speaker.
  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.

Sales Package In Ceiling Speaker and User Documentation
Brand revel
Model C583
Color white
Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7" (27.2 cm)
High-frequency Driver Components 1" aluminum dome swiveling tweeter with waveguide
Low Frequency Extension High Frequency Extension (-10dB) 3-position HF level control
Low-frequency Driver Components 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer
Mounting C-2 fastening mechanism

Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
Recommended Amplifier Power 10 - 135 W RMS
Height Cutout dimensions (dia.) 9.6" (24.4 cm) Square grille finished Height 10.7" (27.2 cm)
Width Square grille finished Width 10.7" (27.2 cm)
Depth Mounting depth 5.2" (13.2 cm)
Weight 2.8 lb (1.3 kg)
Warranty Type Manufacturers
Warranty Period 1 Year
