• Revel C763L Angled In Ceiling Speaker-Home theater expert Store
  • Ceiling Speaker - Revel C763L Angled In Ceiling Speaker
  • Ceiling Speaker - Revel C763L Angled In Ceiling Speaker
1 3

Harman Revel

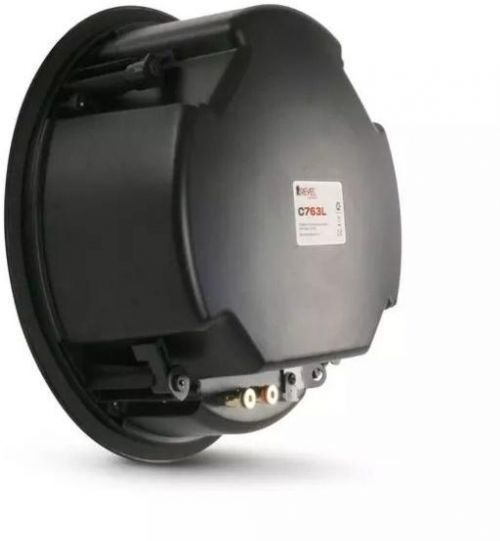

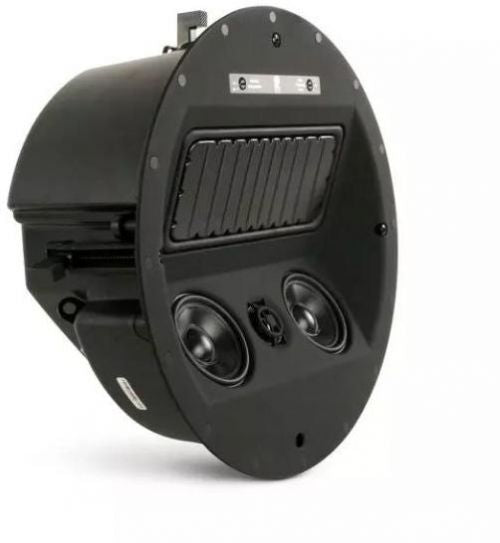

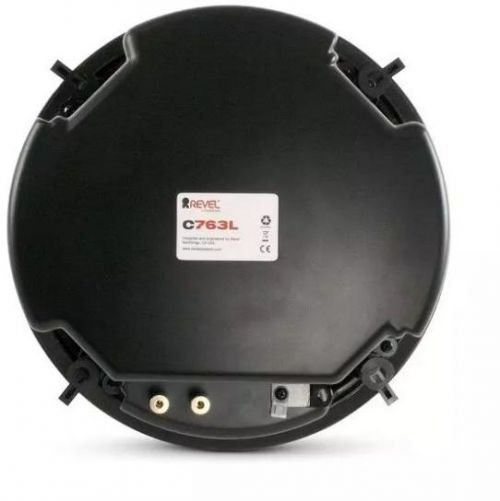

Revel C763L Angled In Ceiling Speaker

Revel C763L Angled In Ceiling Speaker

Rs. 55,992.00
Rs. 69,990.00 Rs. 55,992.00
-20% OFF Sold out
  • ber surrounds.
  • High-order crossover network with premium-quality components.
  • Boundary compensation switch lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall.
  • Three-position tweeter level control lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.

IN THE BOX
Sales Package In Ceiling Speaker and User Documentation
General
Brand revel
Model C763L
Color white
Specifications
Features
Includes both round and square zero-bezel magnetic grilles

Round grille finished dimension (dia.) 9.1" (23.1 cm)
High Frequency Driver Component
 1" aluminum dome tweeter with waveguide
Low Frequency Driver Components
7.8” Micro-Ceramic Composite (MCC) Cone

Diaphragm Flat-Panel Woofer
Low Frequency Extension
 High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation
Mounting
C-2 fastening mechanism

Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
Mid-Frequency Driver Components
Two 3.5" micro-ceramic composite (MCC) cone

Cast-aluminum frame high-output midranges
Recommended Amplifier Power
 10 - 200 Watts RMS
Dimension
Height
Square grille finished Height 12.5" (31.8 cm)
Width
 Square grille finished width 12.5" (31.8 cm
Depth
 Mounting depth 5.7” (14.5 cm)
Weight
1.8 Kg
Warranty
Warranty Type Manufacturers
Warranty Period
View full details
