Product Description

The ToneWinner AD-7300PA+ is a flagship-grade 7-channel Class AB power amplifier engineered for Dolby Atmos home theaters, DTS:X cinema systems, AV processor installations, and serious multi-channel surround sound setups.

Built around 7 independent amplifier modules, high-current Class AB amplification, balanced XLR connectivity, 42 premium ON Semiconductor transistors, and a robust multi-protection architecture, the AD-7300PA+ is designed to deliver powerful, dynamic, and highly controlled sound performance across all channels.

The amplifier is ideal for:

• Dolby Atmos home theaters
• DTS:X surround systems
• Dedicated cinema rooms
• AV processor installations
• High-performance speaker systems
• Luxury media rooms
• Projector-based theaters
• Multi-channel Hi-Fi setups

Unlike conventional AV receivers where power is shared across many channels, the AD-7300PA+ delivers dedicated amplification for each speaker channel, providing better dynamics, stronger speaker control, and improved surround sound performance.

Powerful 7 Channel Amplification

One of the biggest highlights of the AD-7300PA+ is its:

• 7 independent amplifier channels
• High-current power delivery
• Equal power architecture

ToneWinner officially confirms:

"7 channels equal power output."

Power Output:

Official specifications list:

"7×310W Power."

This allows the amplifier to comfortably drive:

• Large floorstanding speakers
• Center channel speakers
• Surround speakers
• Dolby Atmos speakers
• Low-sensitivity speaker systems

Benefits include:

• Better speaker authority
• Improved bass impact
• Greater dynamic range
• Cleaner high-volume playback
• Larger cinematic soundstage

Dolby Atmos & DTS:X Home Theater Ready

The AD-7300PA+ was specifically designed to work alongside:

• Dolby Atmos processors
• DTS:X processors
• Multi-channel AV preamps

ToneWinner describes it as:

"Specially designed to match the AD-7300HD processor."

Perfect speaker layouts include:

• 5.1.2 Dolby Atmos
• 5.1.4 Dolby Atmos
• 7.1 Dolby Atmos
• 7.1.2 Dolby Atmos
• DTS:X systems

Benefits include:

• Better channel separation
• More immersive surround effects
• Stronger Atmos performance
• Improved soundstage precision

Especially when paired with dedicated processors like:

• ToneWinner AD-7300HD
• ToneWinner AT-200
• ToneWinner AT-500

High-Current Class AB Amplifier Design

The AD-7300PA+ uses:

• Fully discrete Class AB topology
• Dual differential amplifier circuits
• High-current architecture
• Short signal path design

Independent technical reviews confirm:

"Fully discrete, dual differential, high current."

Benefits include:

• Lower distortion
• Better transient response
• Natural sound reproduction
• Improved dynamics
• Greater speaker control

Unlike many budget multi-channel amplifiers, the AD-7300PA+ is engineered for serious home theater performance with audiophile-grade circuit design.

42 Premium ON Semiconductor Audio Transistors

One of the major engineering strengths of the AD-7300PA+ is its:

• 42 high-power audio transistors

ToneWinner specifically confirms:

"42 NJW0302G/NJW0281G high-power tubes."

The amplifier uses:

• ON Semiconductor NJW0281G
• ON Semiconductor NJW0302G

Benefits include:

• High-current capability
• Better reliability
• Strong dynamic output
• Improved power delivery
• Excellent speaker control

Each channel incorporates:

"3 pairs of high power transistors."

Massive Dynamic Power Performance

Independent testing demonstrates impressive real-world power output.

Measurements show:

Benefits include:

• Explosive movie dynamics
• Better bass authority
• Reduced compression
• Large-room performance
• Strong surround immersion

Especially during:

• Dolby Atmos movies
• DTS:X soundtracks
• Gaming
• Live concerts
• Sports broadcasts

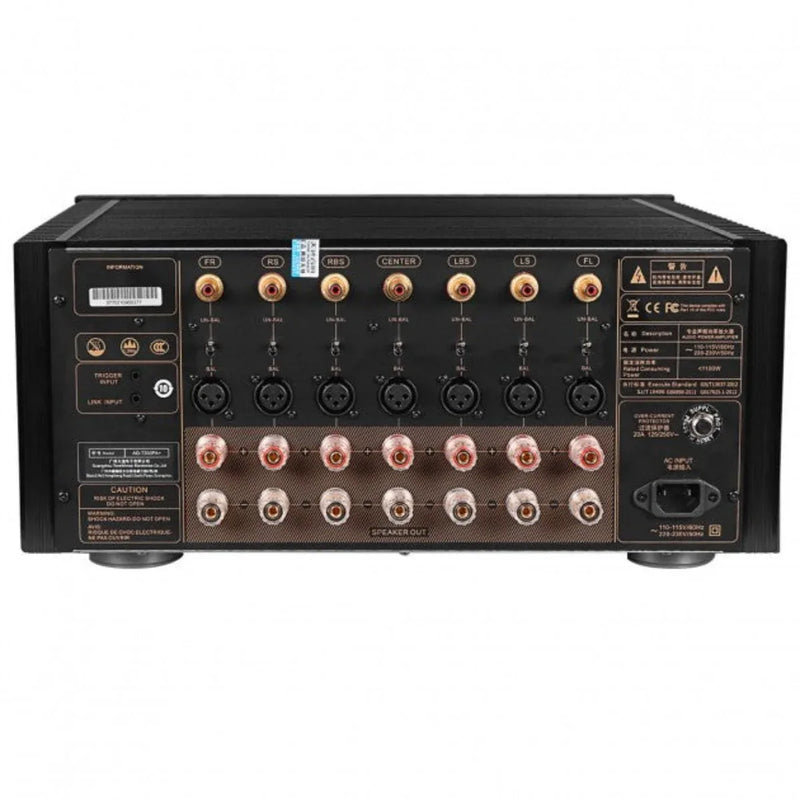

Balanced XLR & RCA Connectivity

The AD-7300PA+ includes:

• Balanced XLR Inputs
• Unbalanced RCA Inputs
• Heavy-duty speaker terminals

ToneWinner confirms:

"Balanced and unbalanced input."

Benefits include:

• Cleaner signal transmission
• Reduced electrical interference
• Long cable compatibility
• Professional AV integration
• Greater installation flexibility

Perfect for pairing with:

• AV processors
• Dolby Atmos processors
• High-end receivers
• Home automation systems

Front Left & Right Enhanced Power Design

A unique engineering feature of the AD-7300PA+ is its:

• Enhanced FL & FR amplifier stages

ToneWinner dealers specifically note:

"Front left and front right use a higher current configuration."

Benefits include:

• Better stereo imaging
• Stronger music performance
• Improved front-stage dynamics
• Greater speaker control

The left and right channels also feature:

• Larger heatsinks
• Higher current biasing
• Increased cooling efficiency

This brings their performance closer to Class A behavior during critical listening.

Audiophile Circuit Architecture

The AD-7300PA+ incorporates:

• Low-noise differential circuitry
• Mirror constant-current source loading
• High slew-rate amplifier stages
• Temperature compensation circuits
• DC servo protection

ToneWinner specifically states:

"Low-noise double differential amplifier circuit."

Benefits include:

• Better signal-to-noise ratio
• Improved channel separation
• Cleaner audio reproduction
• Greater detail retrieval
• Enhanced surround precision

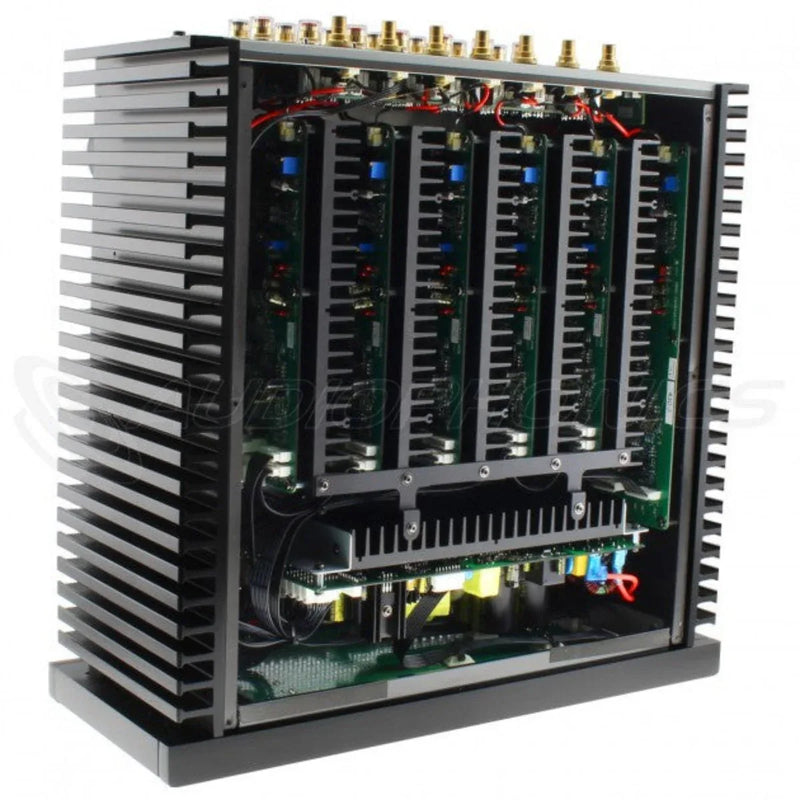

Massive Cooling System

High-power amplifiers generate significant heat.

The AD-7300PA+ includes:

• Large aluminum side heatsinks
• Intelligent cooling architecture
• Dedicated thermal management

ToneWinner confirms:

"Exposed radiators are adopted."

Benefits include:

• Stable operation
• Improved reliability
• Better heat dissipation
• Extended component lifespan

Even during:

• Long movie sessions
• Gaming marathons
• High-volume playback

Advanced Protection System

The AD-7300PA+ incorporates:

• Overheating protection
• Overload protection
• Overcurrent protection
• Overvoltage protection
• Short-circuit protection

ToneWinner officially confirms:

"Five-fold protection."

Benefits include:

• Long-term reliability
• Speaker safety
• Amplifier protection
• Stable operation

Especially important in:

• Dedicated theaters
• High-output systems
• Large speaker installations

Premium Build Quality

The AD-7300PA+ features:

• Aluminum chassis construction

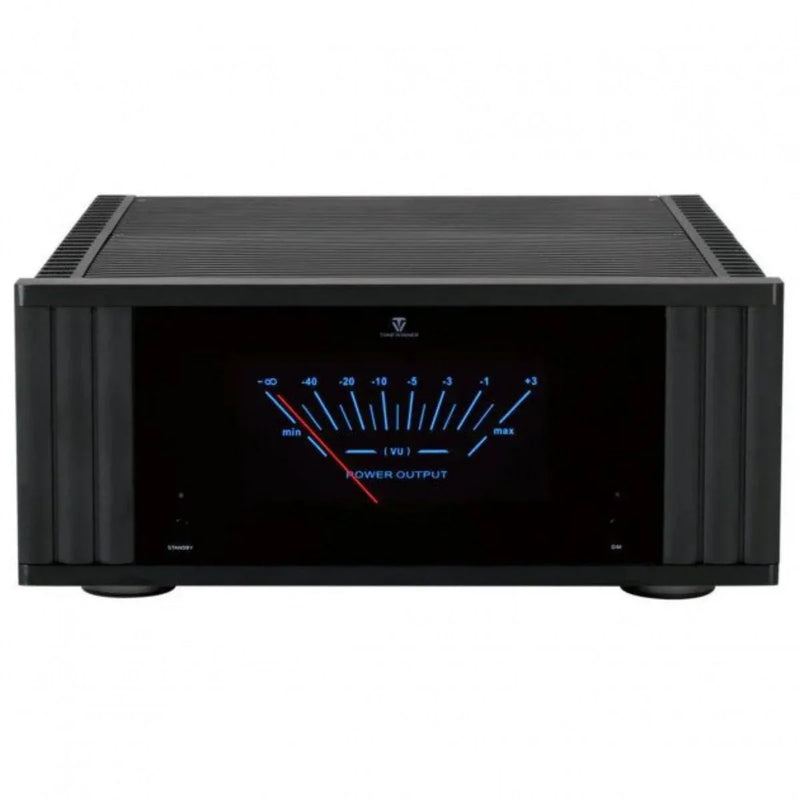

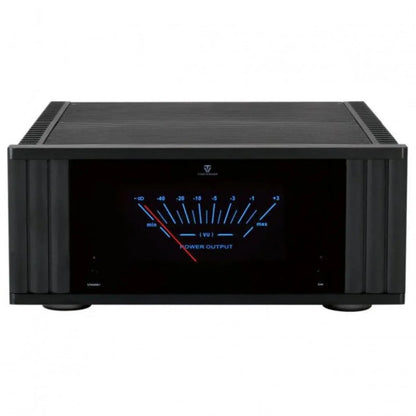

• Large blue VU meter
• Adjustable meter brightness
• Gold-plated RCA inputs
• Gold-plated XLR inputs
• Oversized speaker terminals

Dealers specifically highlight:

"Large VU meter with red needle."

Benefits include:

• Premium appearance
• Better durability
• Improved signal transmission
• Professional installation quality

The amplifier weighs:

"26.3kg."

Which immediately tells you this thing skipped leg day exactly zero times. 🔥

Sound Performance

The ToneWinner AD-7300PA+ is known for:

• Massive cinematic scale
• Strong surround steering
• Excellent speaker control
• Powerful dynamics
• Deep bass impact
• Detailed surround imaging

Professional reviewers noted:

"Highly immersive reproduction."

Listening impressions specifically highlighted:

• Clear dialogue
• Powerful explosions
• Neutral tonal balance
• Strong cinematic impact

Especially during:

• Dolby Atmos blockbusters
• DTS:X content
• IMAX-style movies
• Concert recordings
• Gaming sessions

Key Features

• 7 Channel Power Amplifier
• Class AB Amplifier Design
• 7x310W RMS Output
• 515W @ 4Ω
• Dolby Atmos Ready
• DTS:X Compatible
• 42 ON Semiconductor Audio Transistors
• Balanced XLR Inputs
• RCA Inputs
• High Current Amplification
• Differential Circuit Design
• Large Aluminum Heatsinks
• Intelligent Cooling System
• Five-Way Protection Circuitry
• Trigger Input & Output
• Gold-Plated Connectors
• Audiophile Hi-Fi Circuit Design
• Home Theater Optimized

Specifications
