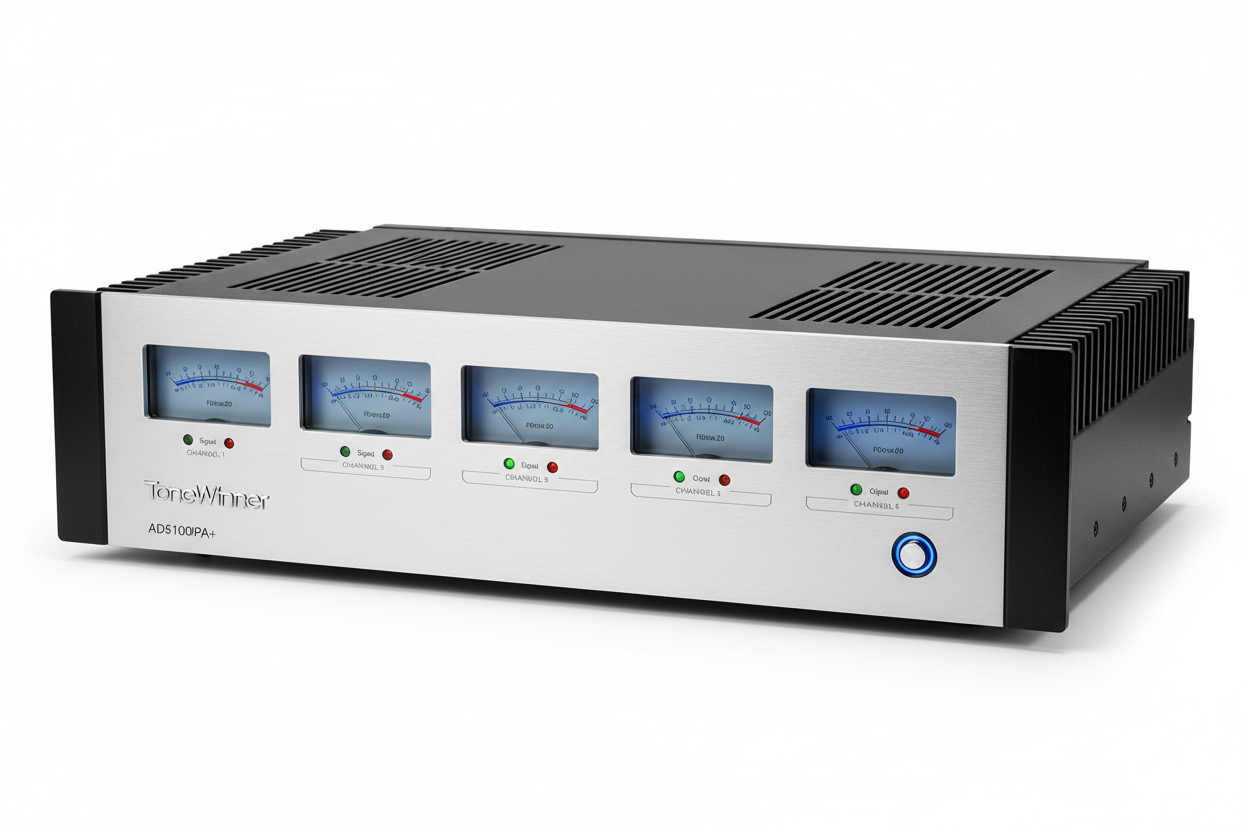

Product Description

The ToneWinner AD5100PA+ is a dedicated 5-channel Class AB power amplifier designed for home theater enthusiasts who want cleaner power delivery, better speaker control, improved surround performance, and expanded amplification for Dolby Atmos and DTS:X systems.

Unlike traditional AV receivers that combine processing and amplification in a single chassis, the AD5100PA+ focuses entirely on delivering high-quality power amplification. Built with an audiophile-grade toroidal transformer, low-noise differential circuitry, intelligent cooling, and independent channel amplification, it is engineered to elevate the performance of AV processors and home theater receivers.

The AD5100PA+ is ideal for:

• Dolby Atmos home theaters
• DTS:X surround systems
• Dedicated cinema rooms
• Ceiling speaker amplification
• Surround channel expansion
• AV processor systems
• Multi-channel Hi-Fi setups
• Custom home theater installations

ToneWinner specifically designed the amplifier for use alongside AV processors and multi-channel preamps where dedicated amplification is required.

Dedicated 5 Channel Amplification

The biggest advantage of the ToneWinner AD5100PA+ is its:

• 5 independent amplifier channels
• Dedicated Class AB power architecture
• High-current power delivery

ToneWinner confirms:

"5 channels amplifier designed to use with AV or multi-channel preamps."

The amplifier is particularly useful for:

• Atmos ceiling speakers
• Surround speakers
• Rear surround channels
• Height speakers
• Expanded home theater systems

Supported configurations include:

• 5.1 systems
• 5.1.2 Dolby Atmos
• 5.1.4 Dolby Atmos
• 7.1.2 systems
• 7.1.4 systems
• Processor-based cinema rooms

This allows AV receivers and processors to offload speaker channels to dedicated external amplification for improved performance.

Powerful Class AB Amplification

The ToneWinner AD5100PA+ uses:

• Class AB amplifier topology
• Discrete amplifier channels
• High-current output stage

Technical specifications include:

Benefits include:

• Better speaker control
• Stronger dynamics
• Improved surround performance
• Reduced amplifier strain
• Cleaner sound at higher volumes

Compared to many integrated AV receiver amplifiers, dedicated external amplification typically offers greater headroom and improved channel separation.

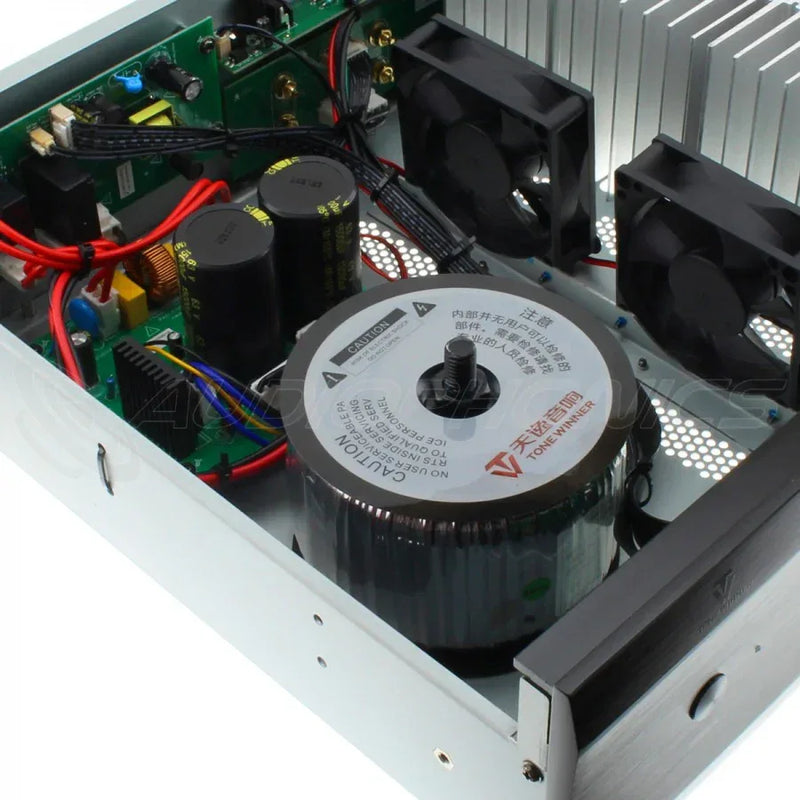

Audiophile Toroidal Transformer

One of the standout features of the AD5100PA+ is its:

• Audiophile-grade toroidal transformer

ToneWinner specifically highlights:

"Audiophile-grade toroidal transformer."

Benefits include:

• Cleaner power delivery
• Lower electrical noise
• Improved current capability
• Better dynamic performance
• Stable multi-channel operation

Toroidal transformers are widely preferred in premium audio amplifiers because they help reduce unwanted hum while delivering strong current reserves for demanding speaker loads.

Hi-Fi Differential Amplifier Circuit Design

The AD5100PA+ incorporates:

• Differential input architecture
• Differential amplification stages
• Temperature compensation circuitry

ToneWinner confirms:

"Differential input & differential amplifying."

Benefits include:

• Lower distortion
• Improved signal purity
• Better channel separation
• Reduced background noise
• Enhanced dynamic range

This design makes the amplifier particularly effective for:

• Home theater systems
• Dolby Atmos installations
• Hi-Fi music playback
• Multi-channel surround systems

Intelligent Cooling System

Home theater amplifiers generate significant heat during demanding movie playback.

The AD5100PA+ includes:

• Intelligent cooling system
• Active heat dissipation
• Temperature monitoring

ToneWinner specifically states:

"Intelligent air cooling device."

Benefits include:

• Stable operation
• Better thermal management
• Extended component lifespan
• Reliable long-term performance

Especially useful during:

• Action movies
• Long gaming sessions
• Multi-channel music playback
• High-volume listening

Advanced Protection Circuitry

The AD5100PA+ includes multiple protection systems:

• Short-circuit protection
• Overload protection
• Overheating protection
• Over-voltage protection
• Over-current protection

ToneWinner confirms:

"Five protections for safe use."

Benefits include:

• Increased reliability
• Better equipment safety
• Long-term durability
• Protection for connected speakers

This makes the amplifier suitable for both residential and professional home theater installations.

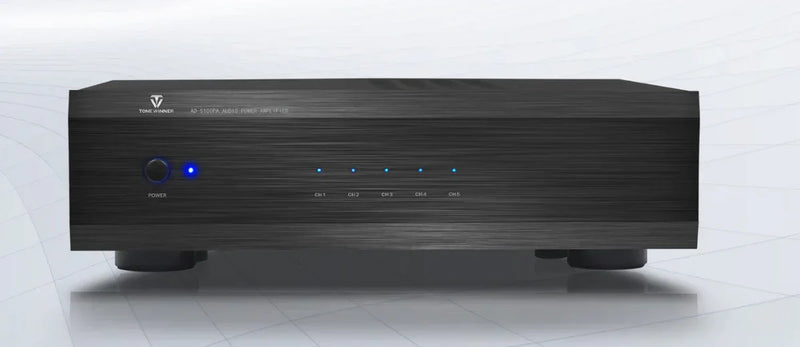

Independent Channel Status Indicators

A unique feature of the AD5100PA+ is its:

• Independent 5-channel signal indicators

ToneWinner specifically states:

"Separate indicators to present working status of 5 channels."

Benefits include:

• Real-time signal monitoring
• Easier troubleshooting
• Visual system feedback
• Professional installation convenience

The indicator brightness changes according to signal strength.

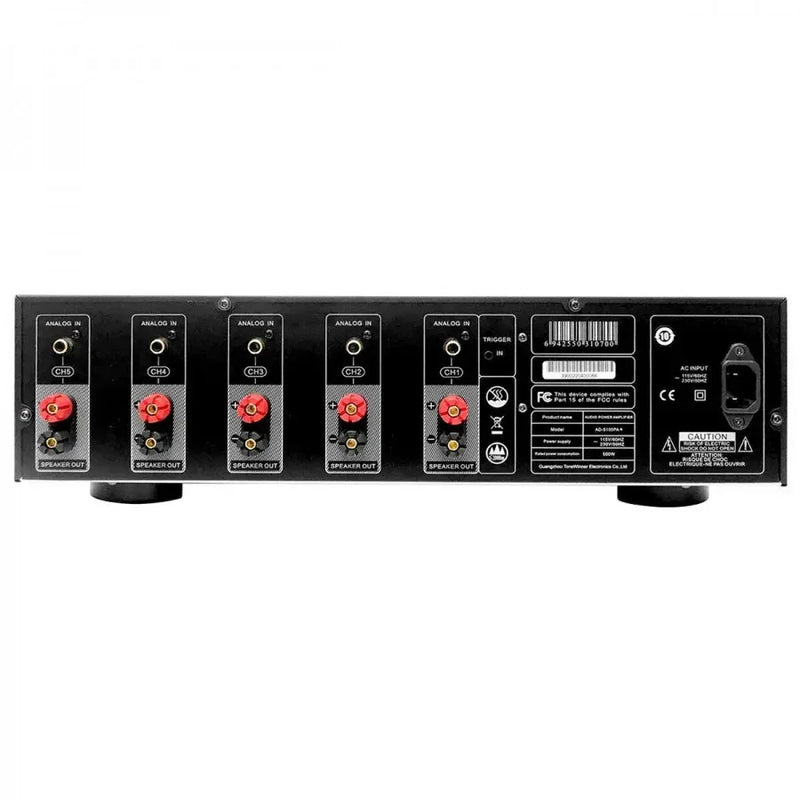

Premium Build Quality

The ToneWinner AD5100PA+ incorporates:

• Aluminum chassis construction
• Shockproof isolation feet
• Gold-plated RCA inputs
• Heavy-duty speaker terminals

ToneWinner specifically includes:

"24K gold plated terminals" and "Aluminium chassis."

Benefits include:

• Improved durability
• Better signal transmission
• Reduced vibration
• Premium installation quality

Home Theater Performance

The AD5100PA+ is widely used for:

• Dolby Atmos height channels
• Surround speaker amplification
• Dedicated theater systems
• AV processor upgrades

Professional dealers specifically recommend it for:

"Driving the ceiling channels."

Users benefit from:

• Cleaner surround effects
• Better channel separation
• More dynamic movie playback
• Improved Atmos performance
• Enhanced immersion

Especially during:

• Dolby Atmos movies
• DTS:X content
• Gaming
• Live concerts
• Sports broadcasts

Key Features

• 5 Channel Power Amplifier
• Class AB Amplifier Design
• 5x100W Amplification
• Audiophile Toroidal Transformer
• Differential Amplifier Circuit
• Intelligent Cooling System
• Independent Channel Indicators
• Gold-Plated RCA Inputs
• Heavy-Duty Speaker Terminals
• Short Circuit Protection
• Overload Protection
• Overheat Protection
• Overcurrent Protection
• Overvoltage Protection
• Dolby Atmos Expansion Ready
• DTS:X Home Theater Compatible

Specifications

Ideal For

The ToneWinner AD5100PA+ is perfect for:

• Dolby Atmos Ceiling Speakers
• DTS:X Surround Systems
• Home Theater Expansion
• AV Processor Systems
• Multi-Channel Cinema Rooms
• Dedicated Media Rooms
• External Amplification Upgrades
• High-Performance Surround Sound Systems

Recommended pairing:

• ToneWinner AT-200 Processor
• ToneWinner AT-500 Processor
• ToneWinner AT-3000 Receiver
• JBL Stage Series Speakers
• Q Acoustics Home Theater Speakers
• Mission Surround Speakers
• Dolby Atmos Ceiling Speakers
