PA500S

3,800 Lumens SVGA Business Projector



Extended Lifespan

Users can choose different lamp mode to extend the lamp’s lifespan. When Power Saving setting is on and without any signal input, the projector will automatically switch to Eco Mode and SuperEco Mode

• Eco Mode: This projector automatically switches from Normal to Eco Mode whenever it has been left idle for 5 minutes.
• SuperEco Mode: When the projector has not received an input signal
•

  Forgetting to shut off projectors is a common occurrence, especially in public spaces such as classrooms and meeting rooms. PA500S’s sleep timer allows you to select a period of inactivity that will determine when the projector should put itself into sleep mode automatically.

  Sleep Timer






  Auto Power Off

  When no signal has been detected, the projector will automatically power off to conserve energy and lamp life.

  Auto Power Off






  Impressive Performance

  Bright Images in Any Environment

  3,800 ANSI Lumens of brightness and a 22,000:1 high contrast ratio guarantee the production of bright images in any environment, including rooms with high ambient light.

  3,800ANSI Lumens

  22,000:1Contrast Ratio






  Amazing Color Accuracy

  ViewSonic’s proprietary SuperColor™ Technology displays a wide range of visible color, ensuring that users enjoy more realistic and accurate color in both bright and dark environments without sacrificing image quality.

  SuperColor™Technology






  Fine-Tuned Viewing

  Choose from 5 unique preset viewing modes to provide the best settings for your usage:

  • Brightest Mode: For environments where the maximum brightness is required
  • Presentation Mode: High-brightness and a high contrast ratio for presentations in brightly lit environments.
  • Standard Mode: Enhanced color, similar to that of a PC or Notebook.
  • Photo Mode: Natural color for general viewing
  • Movie Mode: Saturated color for a better movie watching experience in dark environments.

  5Color Mode






  Exciting 3D Visual Effects

  With 3D-ready projectors, you’ll have amazing 3D capabilities at your disposal. All that’s required are 3D content and a 3D-enabled video card.

  3D Ready






  User-Friendly Usage

  Instant Activation

  Get your projector up and running instantly with two simple settings:

  • Direct Power On: Simply connect the power cord and begin; the projector will power itself on automatically.
  • Signal Power On: The projector will power on automatically upon detection of a VGA cable connection.

  InstantActivate






  Remote Control Functionality

  This projector can be assigned to 8 different remote control codes in the same venue through a single remote control for effortless projector selection, configuration and operation during lessons or meeting. It can also operate certain projectors when the coded are fitted both on the projector and on the remote control.

  Remote Control






  Advanced Image Correction

  Vertical keystone allows you to correct and adjust distorted images with ease, making installation flexible.

  VerticalKeystone






  Smart Presentation Tools

  Time Management Assistance

  Presentation Timer is an embedded on-screen timer that helps users with time management during presentations. Once a specified time limit has been reached, the projector will signal this with a beep, keeping presentations running on time.

  Presentation Timer






  Attention Refocusing Capabilities

  Using PA500S’s Blank Timer, presenter can refocus the audience’s attention back to them by hiding the screen’s image at different points during a presentation. In addition, Blank Timer can also be used as a reminder for when to take breaks.

  Blank Timer

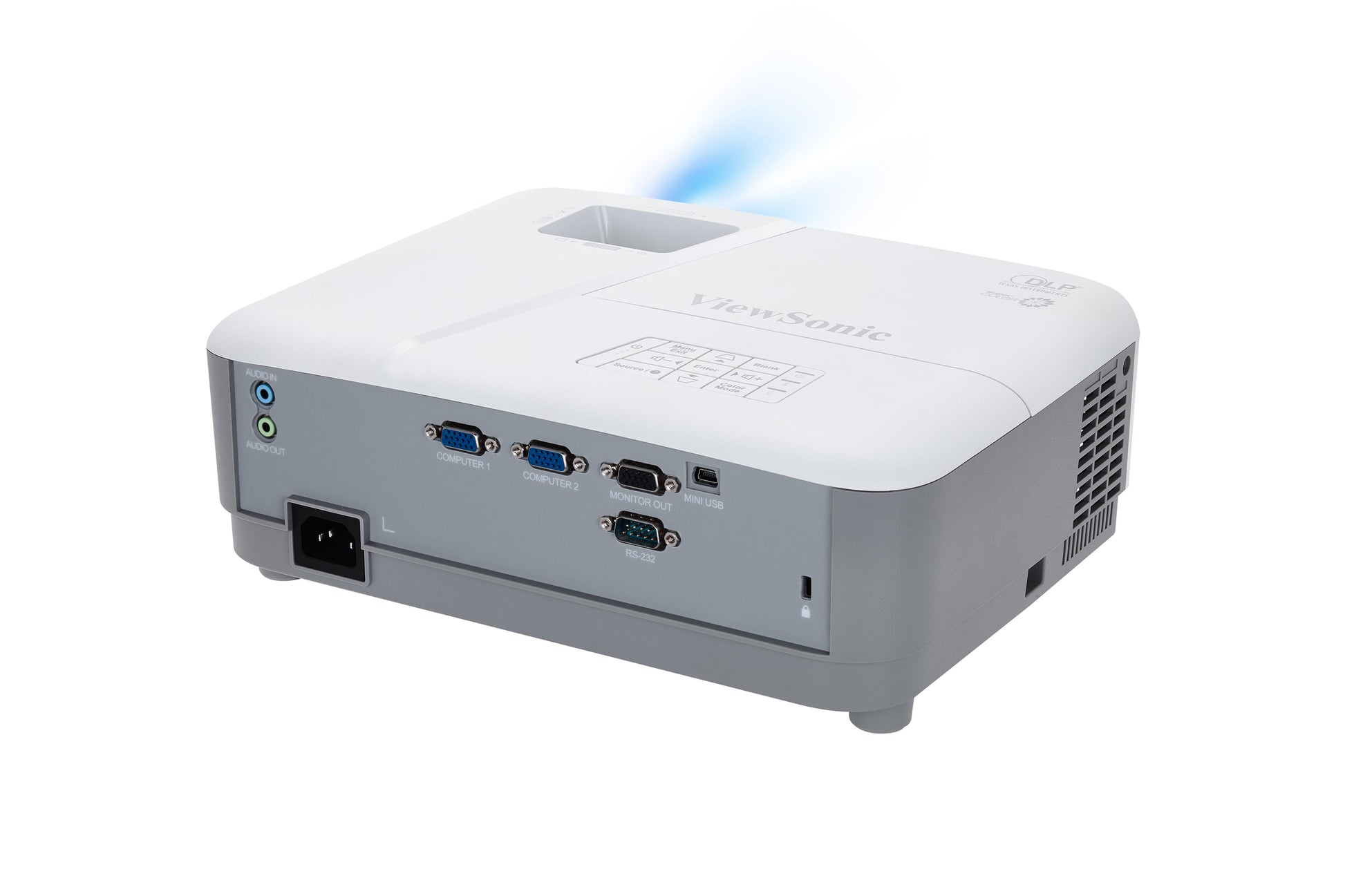

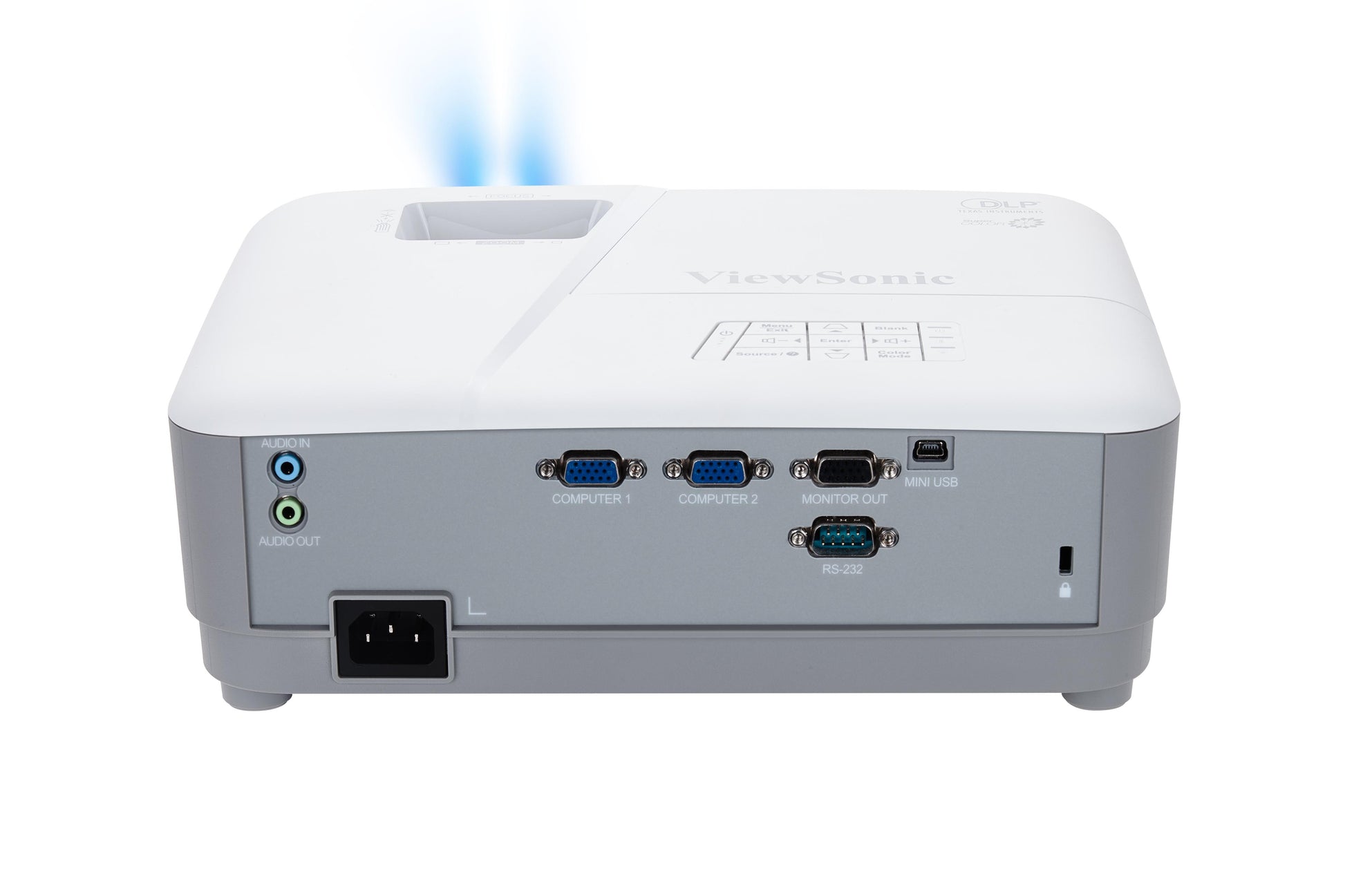

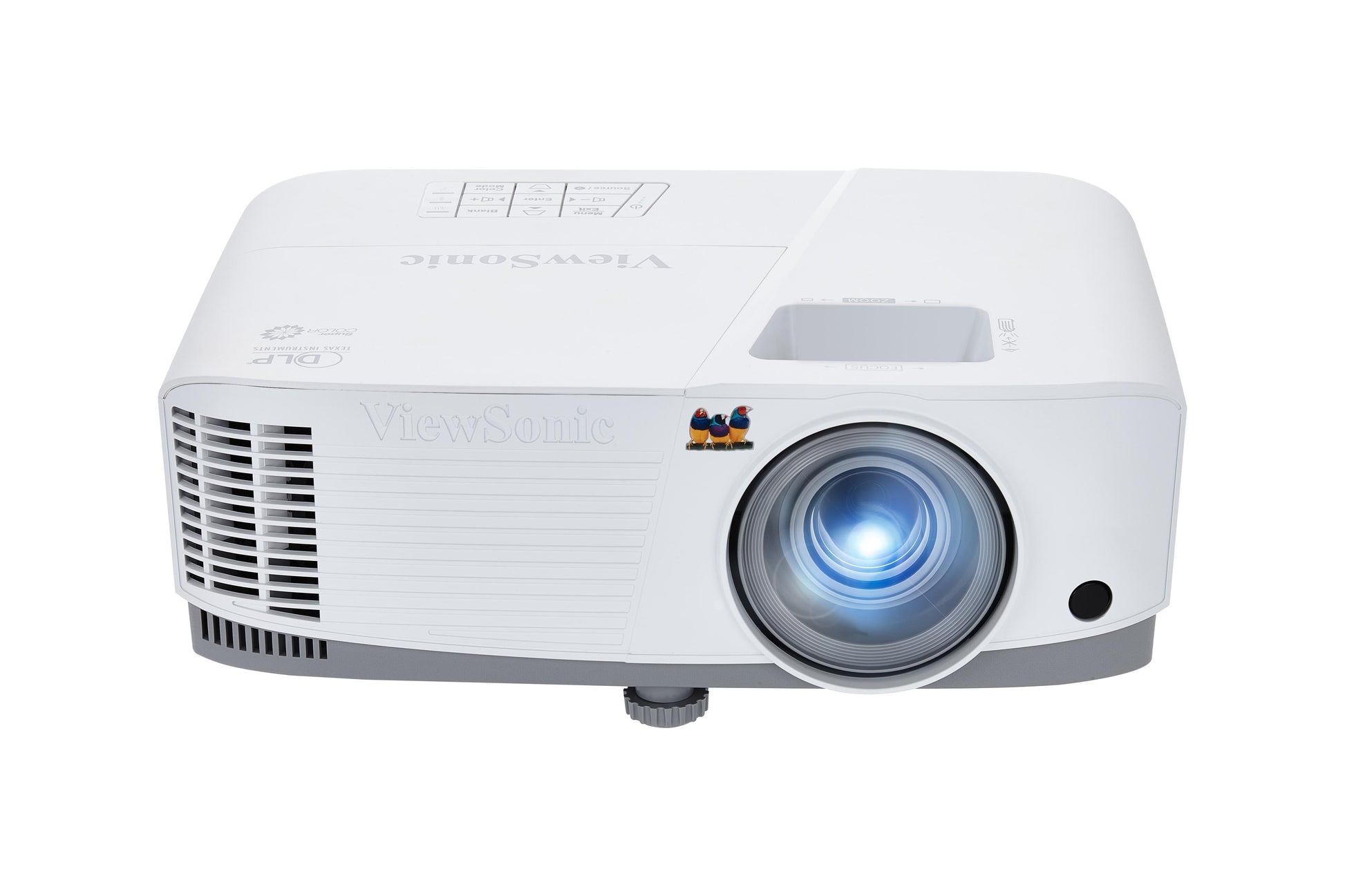

  Exterior & Rear I/O Connectors



  1. Keypad
  2. LED indicator
  3. Lamp cover
  4. Security lock
  5. Zoom/Focus
  6. Front IR
  7. Projection Lens
  8. Audio in/out
  9. Dual VGA
  10. VGA out
  11. Mini USB
  12. Kensington® Lock Slot
  13. RS232




  SPECIFICATIONS




  • Specification
    Projection System: 0.55" SVGA
    Native Resolution: 800x600
    Brightness: 3800 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Lamp
    Light Source Life (hours) with Normal Mode: 5000
    Light Source Life (hours) with SuperEco Mode: 15000
    Lamp Watt: 190W
    Lens: F=2.56-2.68, f=22-24.1mm
    Projection Offset: 120%+/-5%
    Throw Ratio: 1.96-2.15
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 1.19m-13.11m
    (100"@3.98m)
    Keystone: +/- 40° (V)
    Audible Noise (Normal): 31dB
    Audible Noise (Eco) : 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz

  • Input
    Computer in (share with component): 2
    Audio-in (3.5mm): 1

  • Output
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 2W
