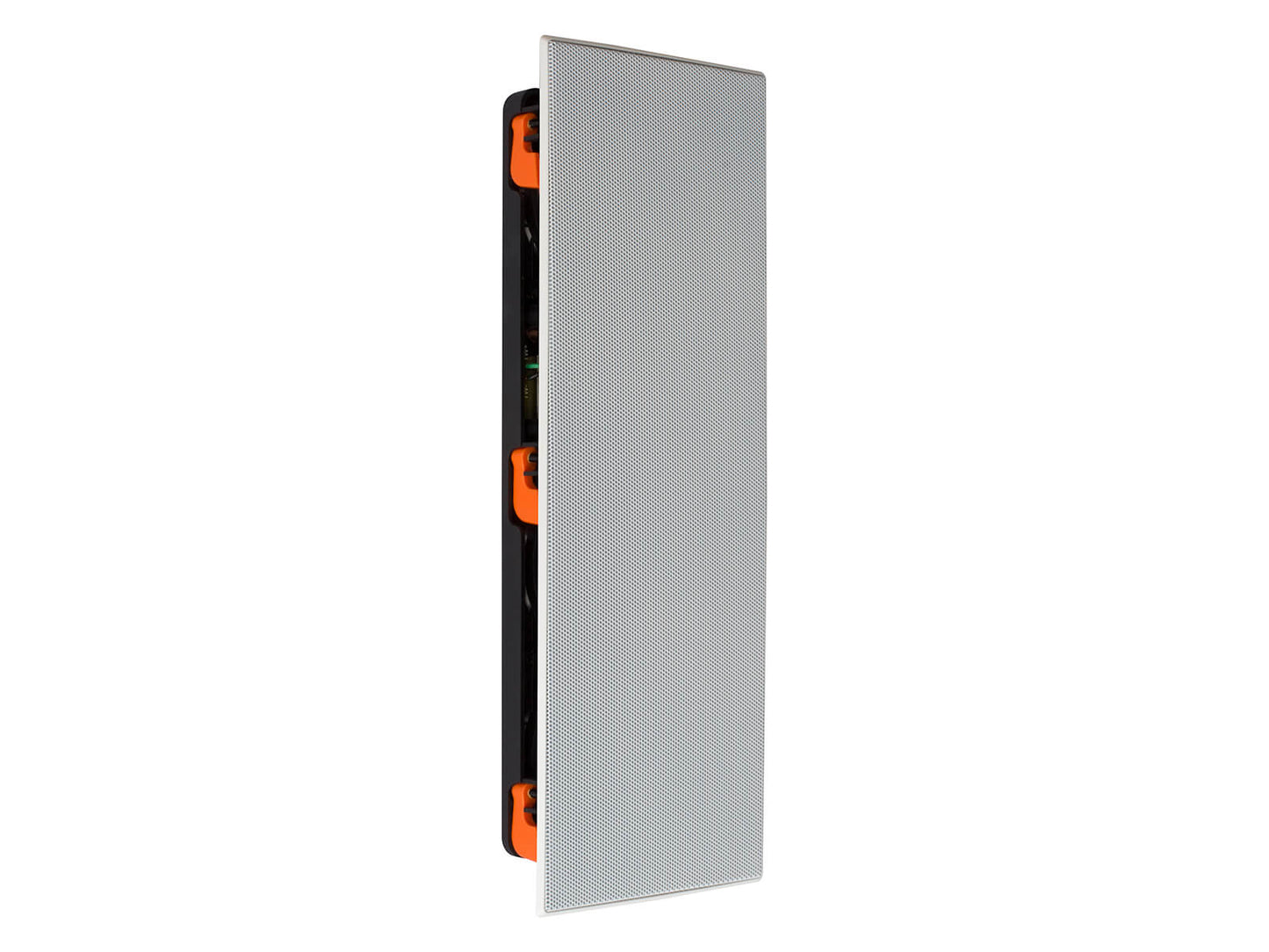

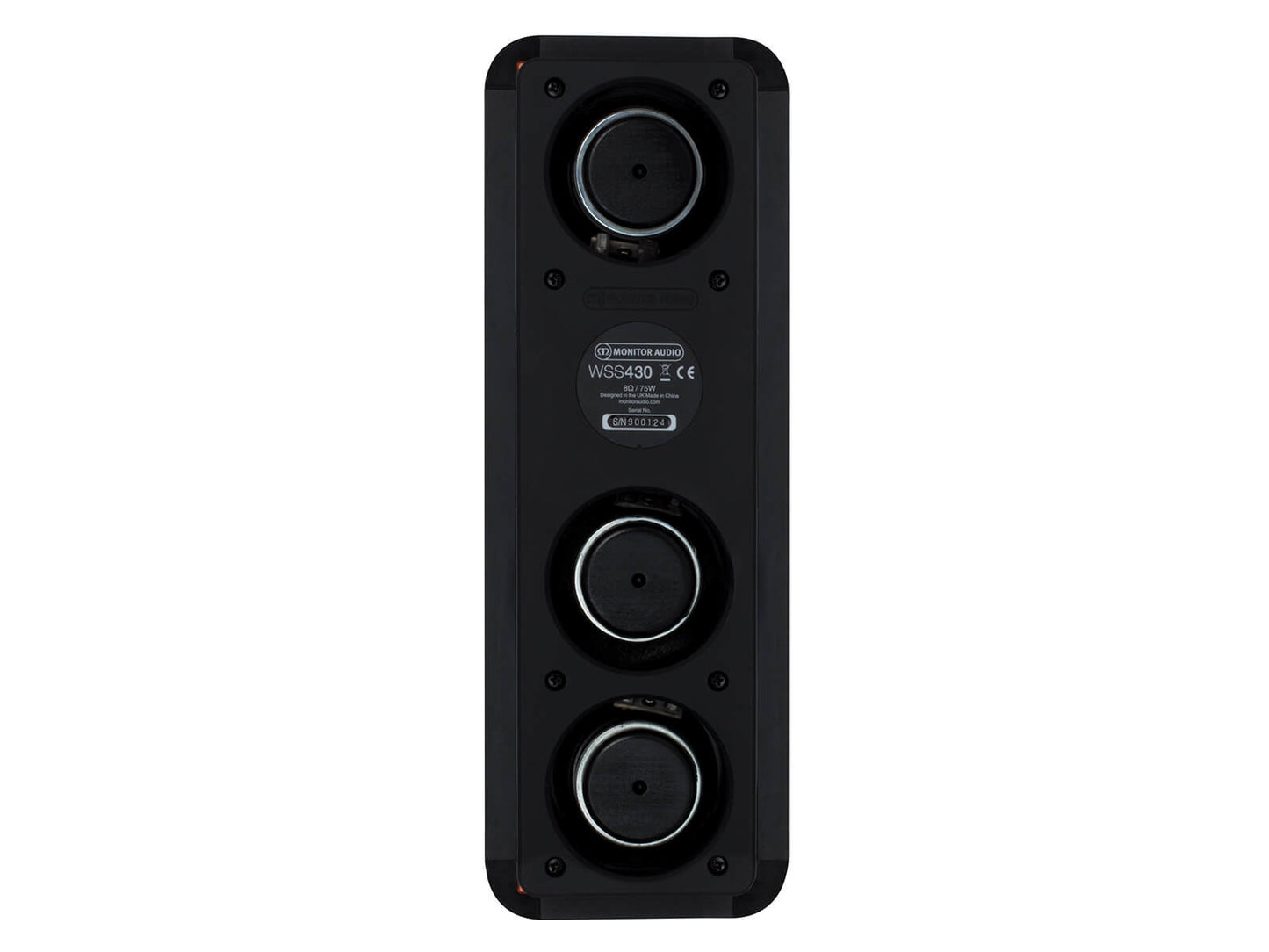

Monitor Audio WSS 430 In-Wall Speaker
Monitor Audio WSS 430 In-Wall Speaker
Product description
Using design principles and technology from our flagship Platinum II speaker models, performance from this formidable in-wall challenges that from the best high-end, box speaker designs.
The WSS 430 flagship maintains its siblings’ shallow depth – all three feature identical footprints – and offers supreme audio performance, drawing on design principles, and materials, from Monitor’s Audio’s high-end Platinum II speakers.
The WSS 430 range topper employs dished C-CAM cones to ensure ultimate diaphragm rigidity – the main aim here is to reduce distortion. High strength Neo magnets and larger voice coils provide incredible driving force, low magnetic leakage, and slim profile. The magnetic system provides an ‘under-hung’ motor arrangement, ensuring the coil stays in the gap, reducing distortion further and increasing power handling.

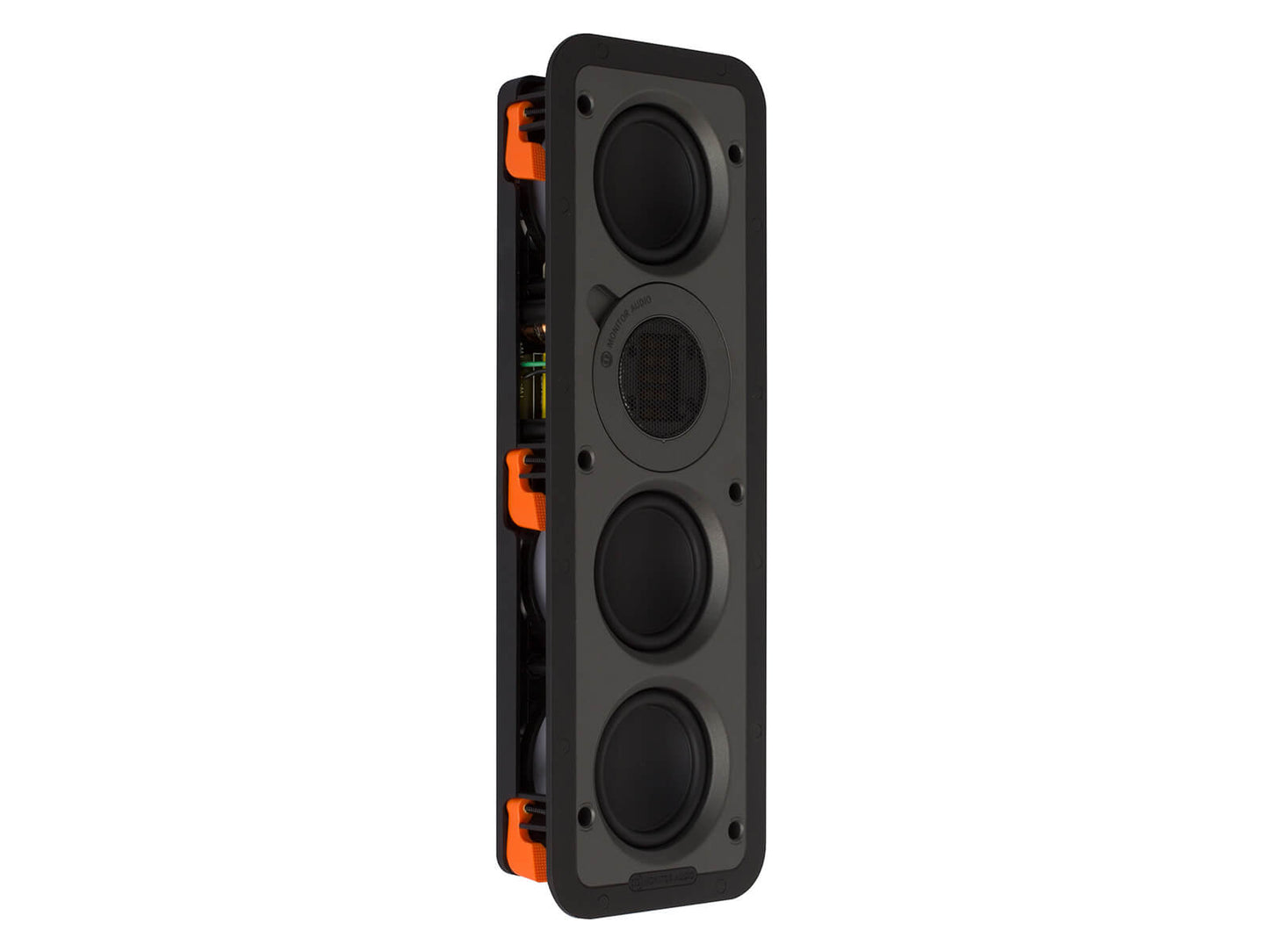

Still just 50 mm deep, there is a lot going on with the WSS 430. The MPD high frequency transducer technology – also from Monitor Audio’s flagship Platinum II designs – ensures incredibly low distortion, delivering clear high frequency to over 50k Hz. Remove the model’s magnetic front trim and you can rotate the tweeter to provide the optimum dispersion when using the model in landscape orientation.
Specifications
Frequency Response: 70 Hz – 50k Hz
Sensitivity: 87 dB
Nominal Impedance: 8 ohms
Maximum SPL: 106.5 dBA
Power Handling: 75 Watt Full Range ( 120 Watts with crossover set to 100 Hz )
Recommended Amplifier Requirements: 10 – 120 Watts
Crossover Recommendation: 100 Hz at minimum of 12 dB / Octave ( 24 dB / Octave optimum )
Dimensions: 15" x 5 1/2"
Depth: 2 1/8"
Cut-Out Dimensions: 13 1/2" x 4"
Mounting Depth: 2"
Connection: Gold Plated Sprung push terminals – For bare wire connection up to 3 mm
Weight: 2 lbs 6 oz
