YAMAHA

YAMAHA HTR-3072 5.1-Channel 4K Ultra HD AV Receiver with Bluetooth

YAMAHA HTR-3072 5.1-Channel 4K Ultra HD AV Receiver with Bluetooth

Regular price Rs. 40,791.00
Regular price Rs. 47,990.00 Sale price Rs. 40,791.00
-15% OFF Sold out
HTR-3072
Amplifier Section Channel 5.1
Rated Output Power (1kHz, 1ch driven) 100 W (6 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 70 W (6 ohms, 0.09% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 135 W (6 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms) - / 110 / 130 / 150 W
Surround Sound Processing CINEMA DSP Yes
DSP Programs 17
Dialog Level Adjustment Yes
SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
Dolby TrueHD Yes
Dolby Digital Plus Yes
DTS-HD Master Audio Yes
Audio Features File Format MP3 / WMA / MPEG-4 AAC / WAV: up to 48 kHz / 16-bit
Compressed Music Enhancer Yes (incl. enhancer for Bluetooth®)
YPAO sound optimization Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
Audio Delay Yes (0-500 ms)
DA Converter Burr-Brown 384 kHz / 32-bit DAC x 3
Video Features 4K Ultra HD Pass-through and upscaling Yes (4K / 60p, 4:4:4)
HDMI 3D passthrough Yes
HDMI eARC Yes (via firmware update)
HDMI Audio Return Channel Yes
HDMI upscaling Yes (HDMI® to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes

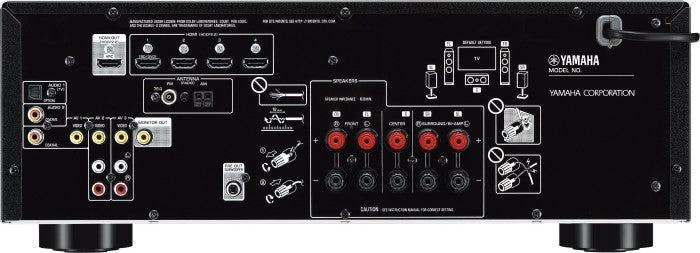

Connectivity HDMI Input/Output 4 / 1 (HDCP2.3, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
HDMI CEC Yes
USB Input USB Memory, Portable Audio Player
Bluetooth Yes (SBC)
Front AV Input USB / Mini Jack
Digital Audio Input/Output: Optical 1 / 0
Digital Audio Input/Output: Coaxial 2 / 0
Analog Audio Input/Output 3 (front 1) / 0
Composite Video Input/Output 3 / 1
Preout SW
Headphone Output 1
Tuner Section FM/AM Tuner Yes
User Interface On-screen display Yes (colour OSD)
SCENE SCENE (4 sets)
Remote Control Unit Yes
General Standby Power Consumption (IR only) ≤0.2W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 435 x 161 x 315 mm; 17-1/8” x 6-3/8” x 12-3/8”
Weight 7.7 kg; 17.0 lbs.
View full details
