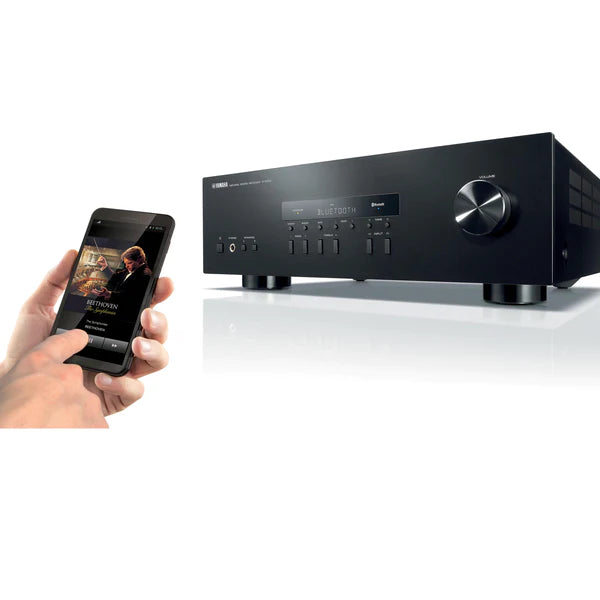

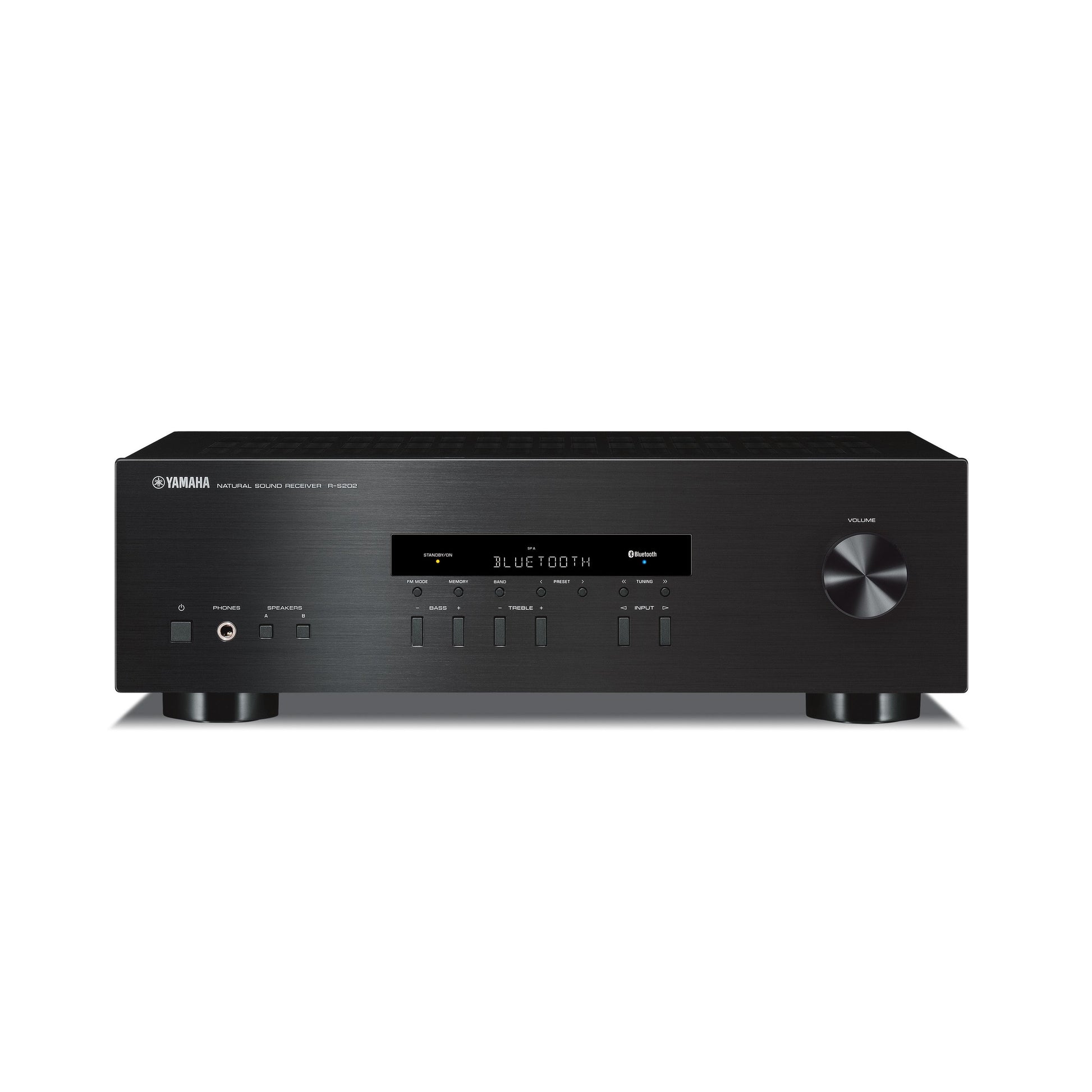

Yamaha RS-202 Audio Stereo Receiver

Hi-Fi Receiver featuring the outstanding sound quality and clean design that Yamaha is famous for. Bluetooth® compatibility provides instant wireless access to all the music on your smartphone or other devices.

• Yamaha high sound quality, created by rich experience and tradition, and high technological expertise
• Bluetooth® compatible for wireless music streaming
• 40 station FM/AM preset tuning
• Simple and sophisticated design

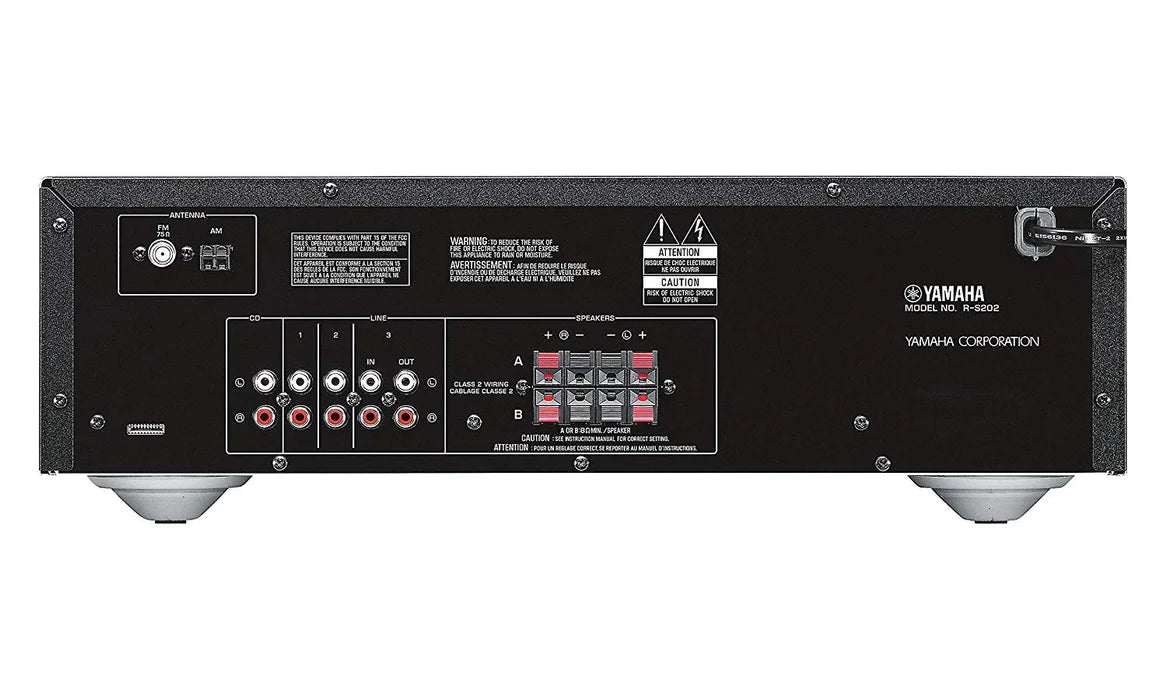

• Speaker selector and speaker terminals for two systems
• Auto power standby function
• Simple design remote control
• Head phone terminal
  Receiver / Integrated Amplifier

  Network section

  Bluetooth

  Minimum RMS Output Power (8 ohms, 40Hz～20kHz)

  Specifications

  Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)

  High Dynamic Power/Channel (8/6/4/2 ohms)

  Frequency Response

  Total Harmonic Distortion (8 ohms, 20 Hz-20 kHz)

  Signal-to-Noise Ratio (CD)

  Input Sensitivity (CD)

  FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono)

  FM Signal-to-Noise Ratio (Mono/Stereo)

  Standby Power Consumption

  Dimensions (W x H x D)

  Weight



  		R-S202




  		R-S202
  Receiver / Integrated Amplifier
  Network section	Bluetooth	Yes (SBC / AAC)
  Minimum RMS Output Power (8 ohms, 40Hz～20kHz)		85 W + 85 W (0.2% THD)
  Specifications
  Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)		115 W + 115 W
  High Dynamic Power/Channel (8/6/4/2 ohms)		125 W / 150 W / 165 W / 180 W
  Frequency Response		20Hz-20kHz (0+/-0.5db), 10Hz-100kHz (0+/-3.0db)
  Total Harmonic Distortion (8 ohms, 20 Hz-20 kHz)		0.025% (Phono (MM) to REC Out), 0.2% (CD to SP Out)
  Signal-to-Noise Ratio (CD)		100 dB (S: 500 mV)
  Input Sensitivity (CD)		500 mV / 47 k-ohms
  FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono)		3 μV (20.8 dBf)
  FM Signal-to-Noise Ratio (Mono/Stereo)		72 dB / 70 dB
  Standby Power Consumption		0.5 W
  Dimensions (W x H x D)		435 x 141 x 322 mm; 17-1/8” x 5-1/2” x 12-5/8”
  Weight		6.7 kg; 14.8 lbs.
