| Front Surround System |
| General |
Drivers |

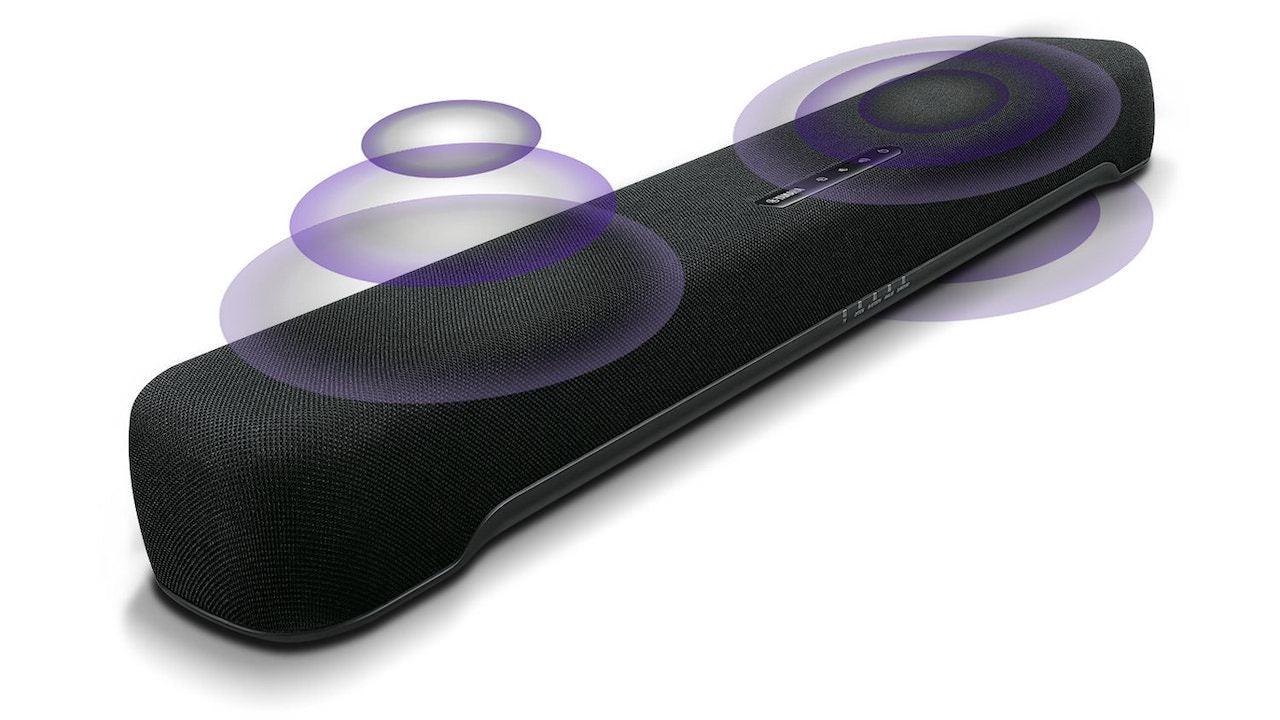

Front L/R: 4.6 cm (1.8") cone × 2, Built-in subwoofer: 7.5 cm (3") cone × 1 |
Front L/R: 5.5 cm (2-1/8") cone × 2, Tweeter: 2.5 cm (1") dome × 2, Built-in subwoofer: 7.5 cm (3") cone × 2 |
Front L/R: 5.5 cm (2-1/8“) cone × 2, Tweeter: 2.5 cm (1”) dome × 2, Built-in subwoofer: 7.5 cm (3") cone × 2 |
| Output Power |
100 W (Front L/R: 20 W × 2-ch, Built-in subwoofer: 60 W) |
120 W (Front L/R: 30 W × 2-ch, Built-in subwoofer: 60 W) |
120 W (Front L/R: 30 W × 2-ch, Built-in subwoofer: 60 W) |
| Power Consumption |
13 W (Rated) |
25 W (Rated) |
30 W (Rated), 4.3 W (Voice Control Ready) |
| Standby Power Consumption |
0.2 W (HDMI control off, Bluetooth standby off), 0.4 W (HDMI control on, Bluetooth standby on) |
0.2 W (HDMI control off, Bluetooth standby off), 0.5 W (HDMI control on, Bluetooth standby on) |
0.2 W (HDMI control off, network standby off), 1.7 / 1.9 / 1.7 W (HDMI control off, network standby on [Wired / Wi-Fi / Bluetooth®]), 0.6 W (HDMI control on, network standby off), 2.2 W (HDMI control on, network standby on) |
| Dimensions (W x H x D) |
Installing the unit in front of a TV: 600 × 64 × 94 mm (23-5/8" × 2-1/2" × 3-3/4"), Mounting the unit on a wall with spacers: 600 × 64 × 102 mm (23-5/8" × 2-1/2" × 4") |
Installing the unit in front of a TV: 910 × 53 × 131 mm (35-7/8" × 2-1/8" × 5-1/8"), Mounting the unit on a wall with spacers: 910 × 131 × 62 mm (35-7/8" × 5-1/8" × 2-1/2") |
Installing the unit in front of a TV: 890 x 53 x 131 mm (35” x 2-1/8” x 5-1/8”), Mounting the unit on a wall with spacers: 890 x 131 x 62 mm (35” x 5-1/8” x 2-1/2”) |
| Weight |
1.8 kg (3.9 lbs) |
3.2 kg (7.1 lbs) |
3.4 kg; 7.5 |

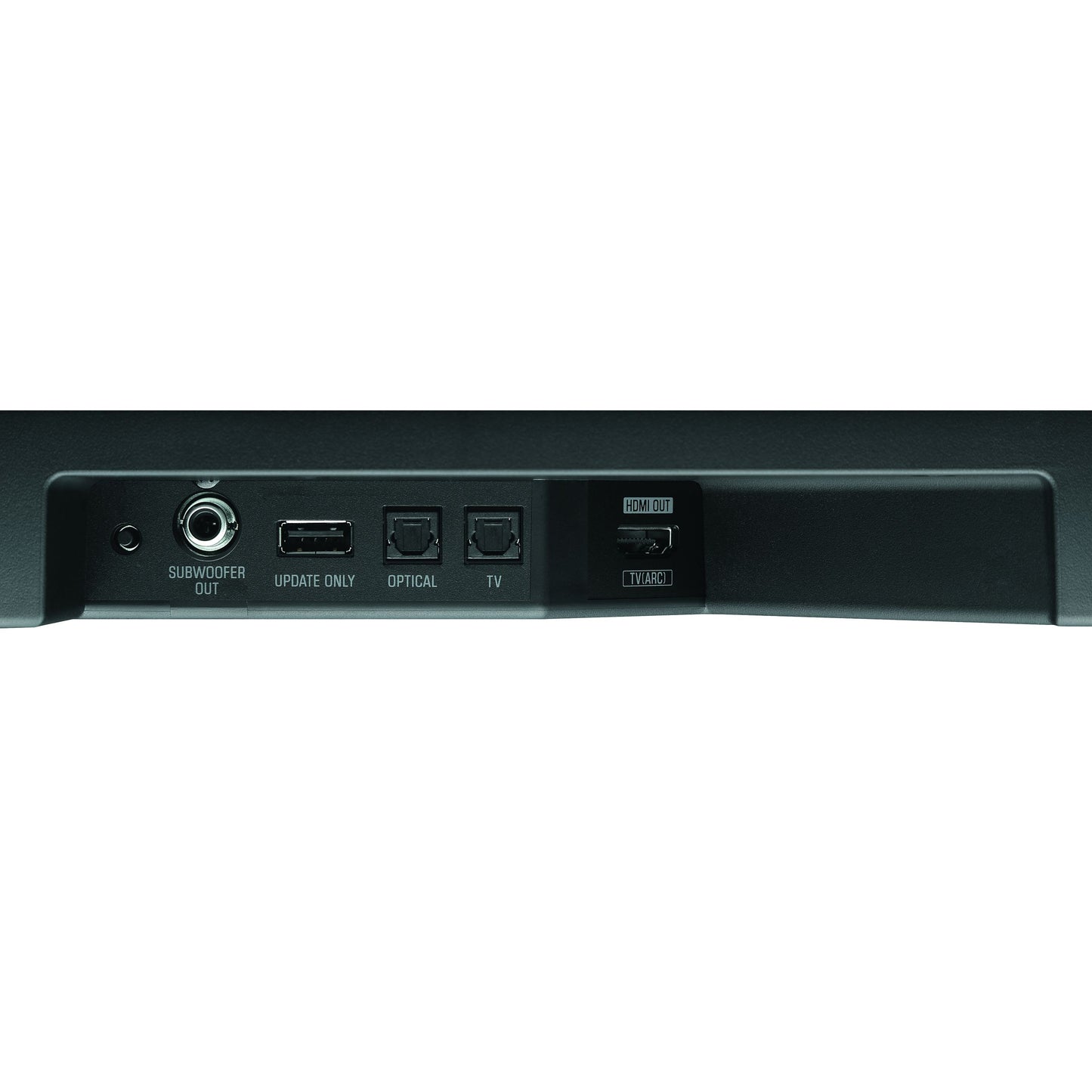

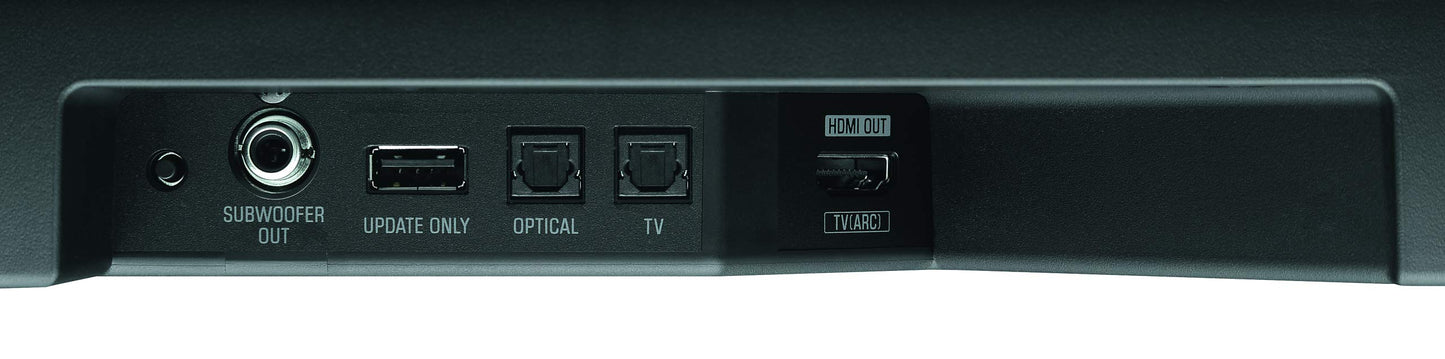

| Input / Output |
HDMI |
1 out (TV ARC) |
1 out (TV ARC) |
1 in / 1 out (TV ARC) |
| Digital Optical |
2 in |
2 in |
1 in |
| Subwoofer output |
No |
Yes |
Yes |
| Analog Audio |
1 in |
No |
Yes |
| HDMI |
4K Pass-through |
No |
No |
Yes (50 / 60 Hz YCbCr=4:4:4, HDR10, HLG and HDCP2.3) |
| 3D Pass-through |
No |
No |
Yes |
| ARC |
Yes |
Yes |
Yes |
| CEC |
Yes |
Yes |
Yes |
| Auto Lip-Sync |
No |
No |
Yes |
| Sound Technology |
Surround Technology |
Dolby Audio |
DTS® Virtual:X™ |
DTS® Virtual:X™ |
| Surround Mode |
Stereo, Standard, Movie, Game |
Stereo, Standard, Movie, Game |
Music, TV program, Movie, Sports, Game |
| Compressed Music Enhancer |
Yes (for Bluetooth) |
Yes (for Bluetooth) |
Yes (for Bluetooth) |
| Bass Extension |
Yes |
Yes |
Yes |
| Audio Formats |
Dolby Digital |
Yes |
Yes |
Yes |
| Dolby Pro Logic II |
Yes |
Yes |
Yes |
| DTS Digital Surround |
No |
Yes |
Yes |
| File Format |
No |
No |
WAV (PCM format only) / FLAC: up to 192 kHz, ALAC: up to 96 kHz, MP3 / WMA / MPEG-4 AAC: up to 48 kHz |
| Connectivity |
Wireless Music Streaming |
No |
No |
Yes |
| Wi-Fi |
No |
No |
Yes (2.4 GHz) |
| MusicCast Surround |
No |
No |
No |
| AirPlay |
No |
No |
No |
| Bluetooth Version/Profile |
Version: Ver 5.0 / Profiles: A2DP / Codecs: SBC, AAC |
Version: Ver 5.0 / Profiles: A2DP / Codecs: SBC, AAC |
Version: Ver 4.2 / Profiles: A2DP, AVRCP / Codecs: SBC, AAC |
| Bluetooth Maximum Communication Range |
Approx. 10 m ; 33ft (without obstructions) |
Approx. 10 m ; 33ft (without obstructions) |
Approx. 10 m ; 33ft (without obstructions) |
| Wireless Subwoofer |
No |
No |
No |
| Other Features |
App Control |
Yes (Sound Bar Remote) |
Yes (Sound Bar Remote) |
Yes (Sound Bar Controller) |
| Learning Function |
No |
No |
No |
