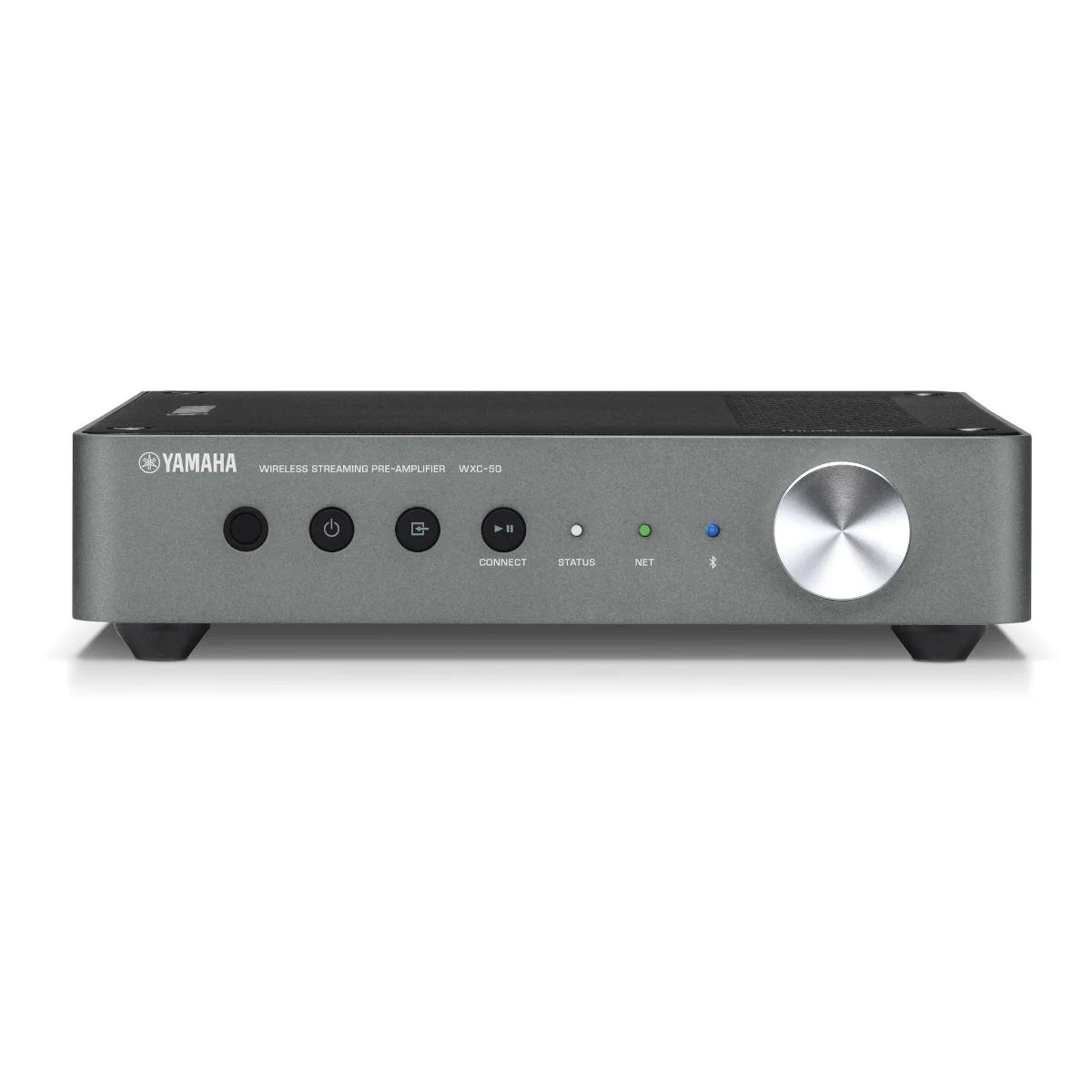

Yamaha WXC-50 Dark-Silver

The WXC-50 is a new-concept audio component that goes beyond conventional audio thinking. It let you access a wide variety of audio content such as music from streaming services or stored on a smartphone, and enjoy high quality sound and style thanks to the ability to network with Yamaha’s exclusive MusicCast multi-room audio system. High functionality and performance bring you musical enjoyment just the way you want it.

• Use with non-MusicCast amp or receiver to enjoy streaming music or a true MusicCast system
• Compatible with all types of music sources and services, such as streaming services
• MusicCast App for easy operation. The app lets you control other MusicCast-compatible components
• One push play — Pressing any button turns the unit on and initiates playback of the previously selected source
• Retro modern and superior quality
• 48-bit digital volume control is far greater than the input signal bit resolution, achieving high quality control
• Supports DSD 5.6 MHz and FLAC / WAV / AIFF 192 kHz / 24-bit for high resolution reproduction
• Compact body only 214 mm (8-3/8") wide fits in any convenient location, can be used horizontally or vertically.
• Easy installation - Suitable size for 1U rack with a width of 214 mm (8-3/8") and height of 42 mm (1-5/8") (without feet).
• Low standby power consumption: 1.8 W
• Seamless linkage to Yamaha amp with MAIN IN and Trigger In terminals for control of system power and volume.
• Player mode — turn off Pre Amp mode and use the device as a simple network audio player.
  Wireless Streaming Amplifier

  Network section

  DLNA

  File Format

  Wi-Fi

  AirPlay

  Bluetooth

  Pure Direct

  Total Harmonic Distortion (20 Hz-20 kHz)

  Signal-to-Noise Ratio

  Audio In / Out

  Digital In / Out

  USB Input

  Ethernet

  Pre Out

  Subwoofer Out

  Remote In / Out

  Control (Trigger) In / Out

  Standby Power Consumption

  Dimensions (W x H x D)

  Weight



  		WXC-50




  		WXC-50
  Wireless Streaming Amplifier
  Network section	DLNA	Version 1.5
  	File Format	MP3, WMA, MPEG4, AAC, WAV, FLAC, AIFF, ALAC, DSD
  	Wi-Fi	Yes
  	AirPlay	Yes
  	Bluetooth	Yes (SBC / AAC)
  Pure Direct		Yes
  Total Harmonic Distortion (20 Hz-20 kHz)		0.003 % (Pre out)
  Signal-to-Noise Ratio		112 dB (Opt / Net / USB / Bluetooth in) / 98 dB (AUX in)
  Audio In / Out		1 / 1
  Digital In / Out		1 (Optical) / 1 (Optical, Coaxial)
  USB Input		1
  Ethernet		1
  Pre Out		1
  Subwoofer Out		1
  Remote In / Out		1 / 0
  Control (Trigger) In / Out		1 / 1
  Standby Power Consumption		1.8 W
  Dimensions (W x H x D)		215 x 51.5 x 245.9 mm (with antenna: 214 x 123.6 x 245.9 mm); 8-3/8” x 2” x 9-5/8” (with antenna: 8-3/8” x 4-7/8” x 9-5/8”)
  Weight		1.44 kg; 3.17 lbs.
